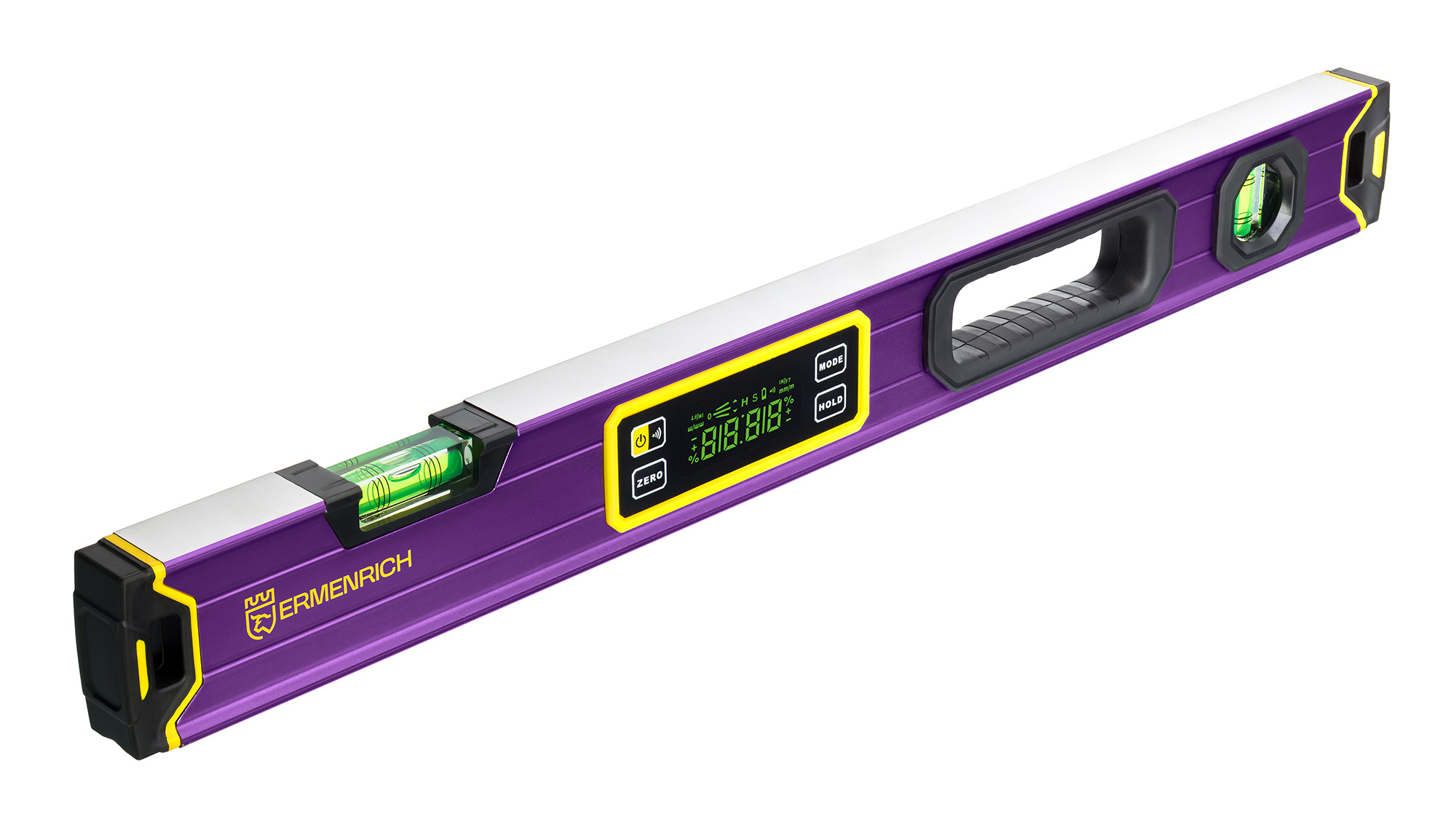

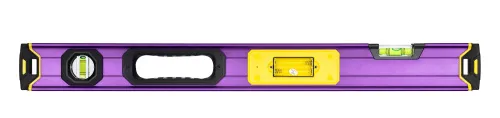

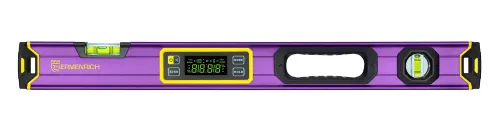

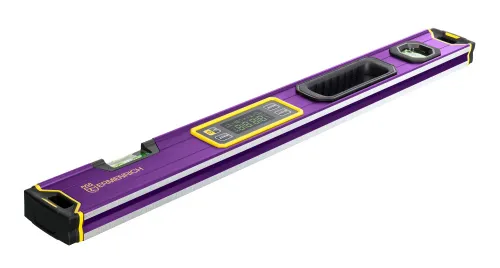

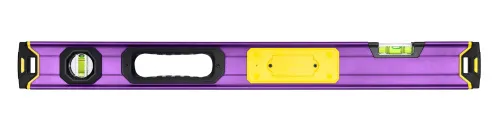

Ermenrich Verk LL60 Digital Level

Magnetic base. For measuring angles of slope. Units of measurement: degrees, percent, mm/m, in/ft

Ermenrich Verk LL60 Digital Level
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555021386
Package size (LxWxH) 64x8x5 cm
Shipping Weight 0.88 kg
All specifications
Description

The Ermenrich Verk LL60 Digital Level is a versatile tool that is suitable for both professional and home use. The angles can be measured in a range of 0–360° (4x90°). Thanks to its high accuracy, the device is suitable for construction sites and working with machine tools (magnetic sine plates, modular fixtures), assembling machinery, metal structures, and production equipment. The device also comes in handy for repairs in an apartment or country house.

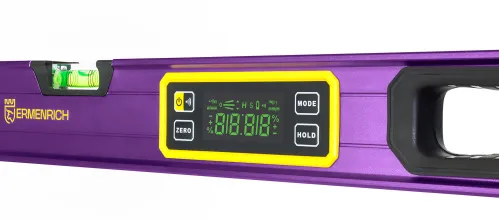

For your convenience, there are several useful features – an audible buzzer alert, the hold function that can “freeze” the readings on the LCD screen, and the function to set to zero to determine the relative angle. You can also use the digital level as a standard bubble level – there are 2 built-in bubble vials. The Ermenrich Verk LL60 is powered by 2 AAA batteries. To save battery power, there is an auto-off function that activates after 3 minutes of inactivity. The rugged aluminum body is dust- and splashproof (the IP54 protection class). The magnetic base and V-groove help secure the level on metal surfaces and other materials.

Key features:

  • Digital level with extra features and 2 bubble vials
  • Wide measuring range, different units of measurement, an LCD screen
  • Suitable for use in dusty and damp areas
  • Auto-off function to save battery power
Specifications
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555021386
Package size (LxWxH) 64x8x5 cm
Shipping Weight 0.88 kg
Level type digital, bubble
Accuracy ±0.1° at 0° and 90°, the rest – ±0.2°
Units of measurement mm, m, ft, in, degrees, percent
Measuring range, m 0 — 360
LCD screen yes
Maximum resolution 0.05°
Calibration manual
Hold function
Zero set function
Magnetic base
V-Groove
Power supply 2 AAA batteries, 1.5V (not included)
Low battery status indicator
Auto power off 3 min
IP water and dustproof rating IP54, partially dustproof, splashproof, partially dustproof, splashproof
Body aluminum, thermoplastic rubber
Operating temperature range, °C 0...+40
Length, mm 600
Additional audible buzzer alert , built-in bubble level – 2 pcs.
