Ermenrich Verk LQ50 Digital Level, with laser

The Ermenrich Verk LQ50 Digital Level combines professional precision and high mobility. Laser marking simplifies the precise positioning of various parts and structures, making the device equally popular among home craftsmen and professionals for installation, finishing, and production.

Measurement accuracy and display capabilities

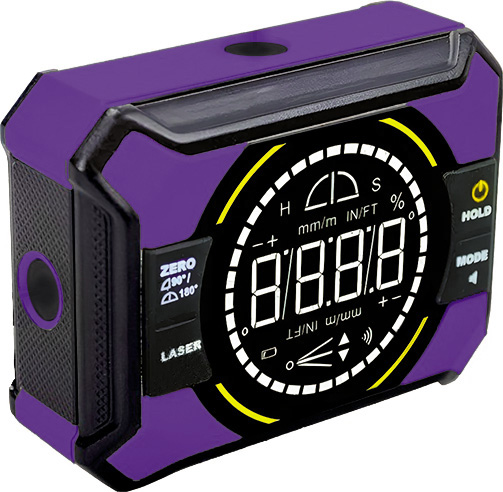

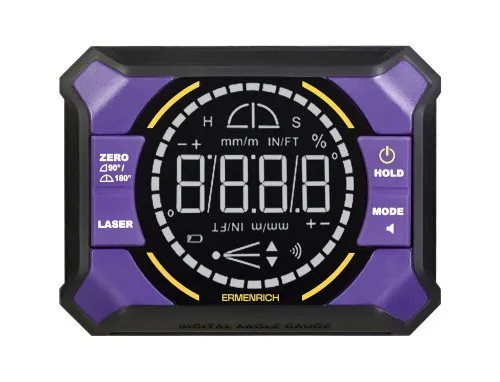

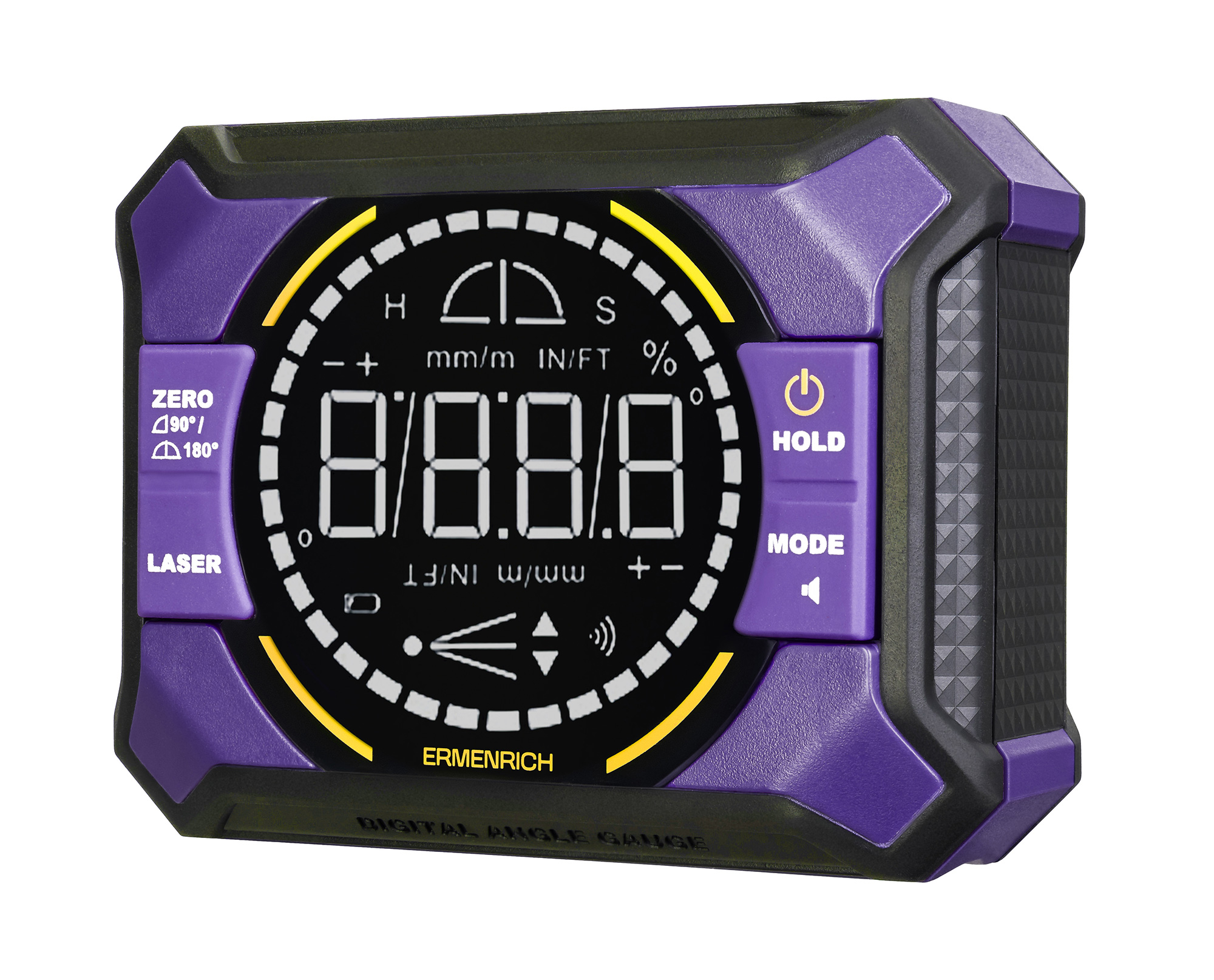

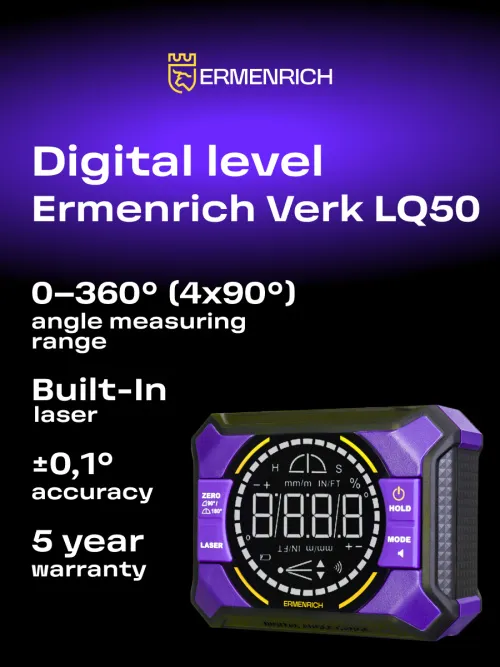

The device is compact, measures the tilt in 4x90° or 2x180° format, and displays the results on a high-contrast LCD screen. The user can switch display units: degrees, percent, millimeters per meter, or inches/feet. The measurement accuracy is ±0.1° at key angles of 0° and 90° and does not exceed ±0.2° in other positions, ensuring reliable performance across the entire operating range.

Laser marking and intelligent functions

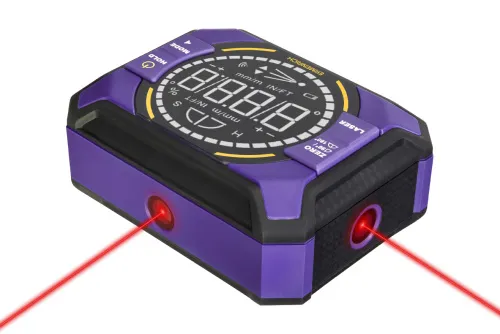

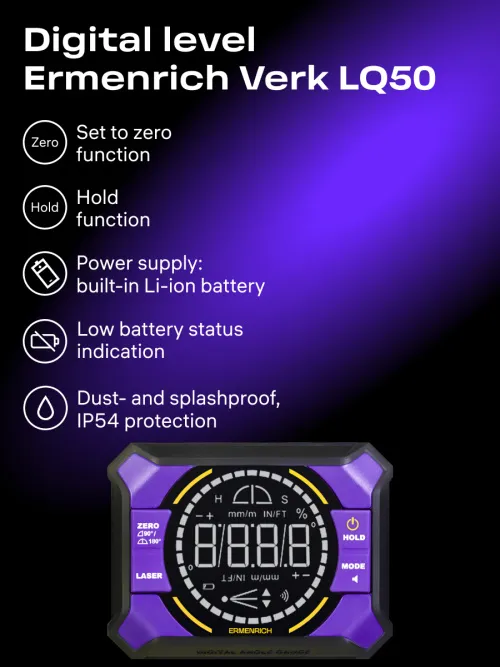

The built-in red laser forms two mutually perpendicular lines, instantly creating reference axes without the need for additional tools. The electronic “bubble” indication remains clearly legible even in low light conditions. The Hold button freezes intermediate readings, simplifying the transportation of the instrument. The Zero button allows you to set a new reference point for a series of repeated or symmetrical measurements. The device notifies you with an audible alert when the target angle is reached, which is especially useful when the display is not visible.

Design and power supply

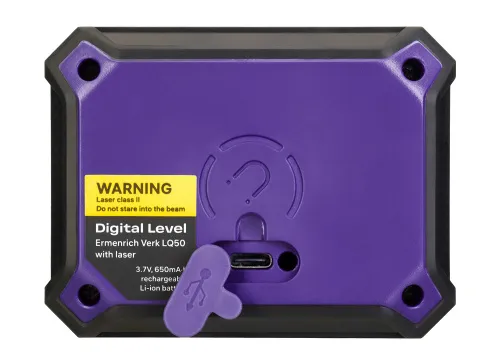

The 650mAh (3.7V) lithium-ion battery, charged via USB Type-C, provides up to four hours of continuous use. The energy-saving system automatically switches off the device after three minutes of inactivity (in non-laser mode) or after 30 minutes (if the laser is on).

The body, which is made of polycarbonate and ABS plastic alloy with silicone inserts, makes the device lightweight as well as shock- and vibration-resistant, and the IP54 rating protects the electronics from dust and water splashes. The device operates stably at temperatures from 0°C to 40°C, maintaining accuracy both indoors and outdoors.

The built-in magnetic base securely attaches the level to metal surfaces, simplifying marking and alignment both in the workshop and on site. Compact dimensions, high precision, and well-thought-out ergonomics make the tool reliably effective for tasks of any complexity.

Key features:

• Tilt measurement in two modes: 4x90° or 2x180°
• Laser guides with two mutually perpendicular red lines allow for fast and highly accurate markings
• Electronic “bubble” position indication enables instant visual verification of deviations from the level position
• Built-in 650mAh Li-ion battery with USB Type-C for long battery life and easy charging
• Modes for holding measurements and instant zero reset
• Body made of polycarbonate, ABS plastic, and silicone with IP54 protection that reliably resists dust, water splashes, and mechanical impacts
• Compact size (60mm length) and light weight (no more than 150 grams) with a magnetic mount
