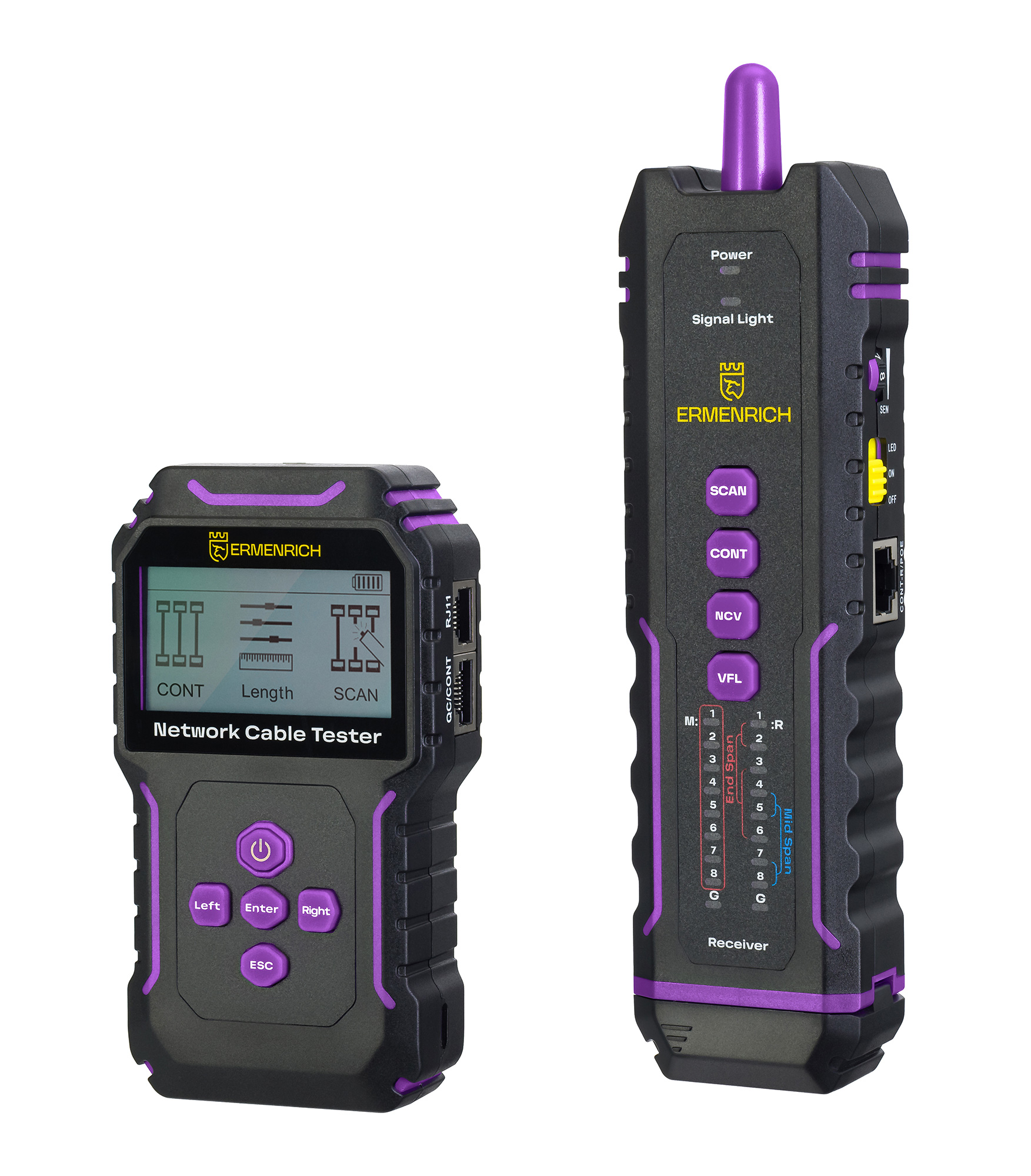

Ermenrich NetGeeks NP45 Multifunctional Cable Tester
Functions: TDR cable length measurement, cable tracing, Port Flash, VFL function, NCV function, PoE test, cable crystal head QC
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555023168 |
| Package size (LxWxH) | 24x16x5 cm |
| Shipping Weight | 0.6 kg |

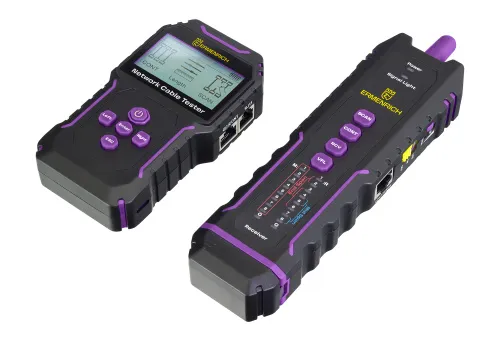

The Ermenrich NetGeeks NP45 Multifunctional Cable Tester is a special device for testing a large number of parameters of telephone, computer, and twisted pair networks as well as detecting cable faults and open circuits, determining the presence of voltage, etc. The tester offers features that empower professionals to efficiently install, diagnose, and repair networks across the office, home, and industrial settings.
The Port Flash function on the tester can help you locate the cable connected to the network port on the switch or router. The device has an NCV function for non-contact detection of hazardous voltage. The device can also conduct a PoE test, which helps to determine the PSE type and it detects midspan/endspan. The VFL (Visual Fault Locator) function allows you to find bends and damage to the cable using the light signals of the device. Ermenrich NetGeeks NP45 can be used to measure cable length using the TDR method (in the range of 2.5 to 200m). The maximum cable length covered during testing is 600m.
The device is designed for testing STP/UTP network cables of 5E/6/6A categories as well as for the additional detection of telephone and electrical cables.
Key features:
- RJ11 and RJ45 patch cords, alligator clip, and charging cable included
- Port Flash, NCV, VFL, PoE test functions – everything you need for comprehensive diagnostics
- Measuring cable length from 2.5 to 200m using time-domain reflectometry
- Сable crystal head QC, polarity detection

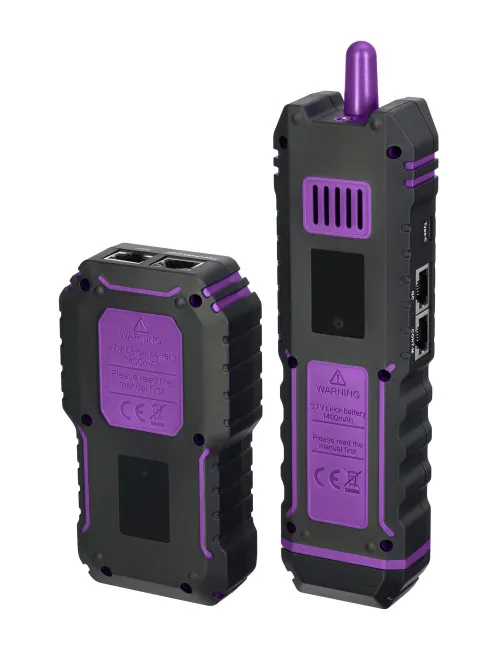

- The transmitter and receiver are powered by a rechargeable battery

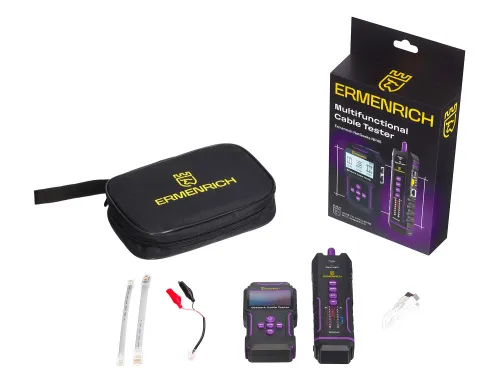

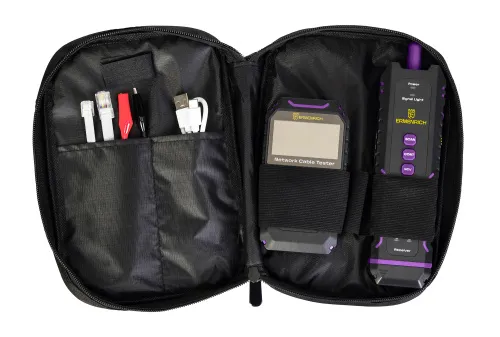

The kit includes:
- Transmitter
- Receiver
- RJ11 patch cord
- RJ45 patch cord
- Alligator clip
- Type-C USB cable
- Carry bag
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555023168 |
| Package size (LxWxH) | 24x16x5 cm |
| Shipping Weight | 0.6 kg |
| Transmitter | |

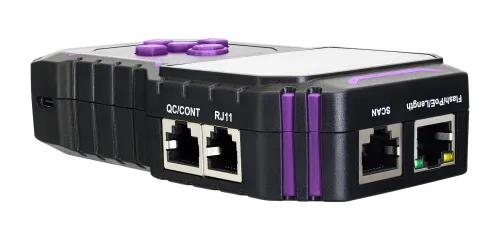

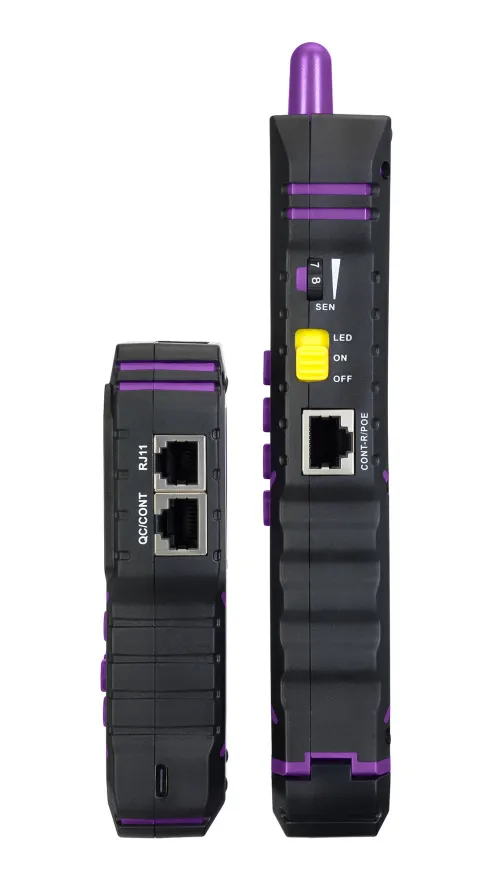

| Ports | RJ45 (Scan), RJ11, Type-C, RJ45 (Length/Flash/PoE), QC/CONT |
| Tracing cable types | telephone, common wires, STP/UTP (CAT5E, CAT6, CAT6A) network cable |
| Testing cable types | STP/UTP (CAT5E, CAT6, CAT6A) network cable |
| Maximum length of the tested cable, m | 600 |
| Cable length measurement | ✓ |
| Cable testing | + (open circuits, short circuits, crossed pairs) |
| Port flash function | ✓ |
| Port flash function | +, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s) |
| Сable crystal head QC | ✓ |
| Cable tracing | ✓ |
| PoE test | ✓ |
| Voltage polarity detection | ✓ |
| Visual fault locator (VFL) | ✓ |
| Cable length measurement | |
| Measuring method | time-domain reflectometer (TDR) |
| Units of measurement | meters/yards, feet |
| Measuring range, m | 2.5 — 200 |
| Measuring the distance to open circuits | ✓ |
| Measuring the distance to short circuit | ✓ |
| Calibration | + |
| Minimum cable length for calibration, m (ft) | 10 (32.8) |
| PoE test | |
| Power source equipment (PSE) type test | standard (IEEE 802.3at/af), non-standard |
| Midspan/endspan identification | ✓ |
| Power measurement range, W | 5 — 60 |
| Key features | |
| Maximum operating current, mA | 200 |
| Protection | input voltage: 60V |
| Display | LED |
| Display resolution, px | 128х64 |
| Display backlight | ✓ |
| Power supply | 1400 mAh, 3.7V lithium polymer battery |
| Battery life, h | 15 |
| Low battery status indicator | ✓ |
| Auto power off | 15 min, 60 min, 30 min |
| Operating temperature range, °C | 0...+50 |
| Operating humidity range, % | 20…70 |

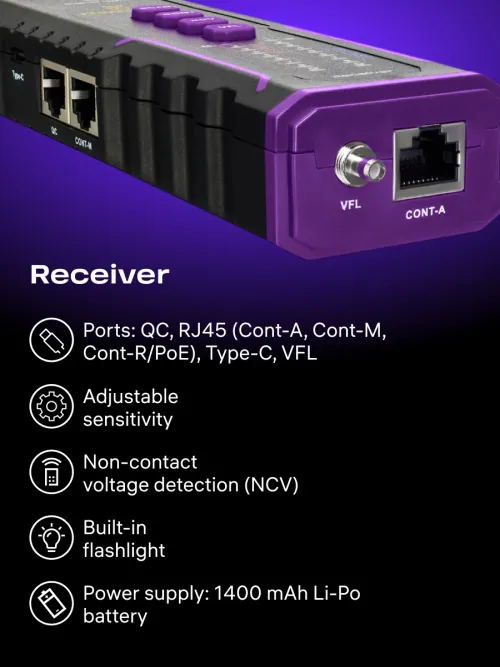

| Receiver / Remote unit | |

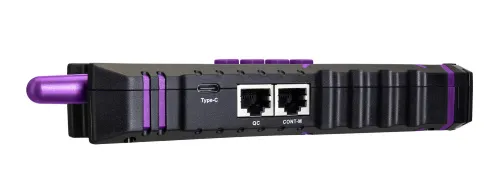

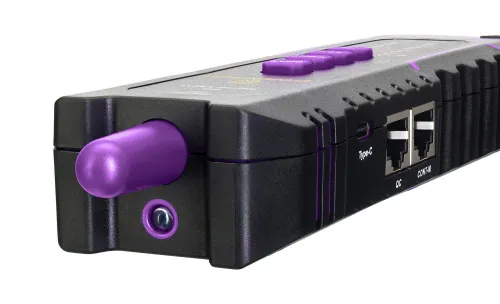

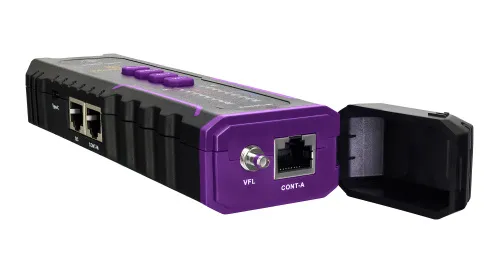

| Ports | QC, VFL, Type-C, RJ45 (Cont-A), RJ45 (Cont-M), RJ45 (Cont-R/PoE) |
| Adjustable sensitivity | ✓ |
| Non-contact voltage detection (NCV) | ✓ |
| Сable crystal head QC | ✓ |
| Flash light | ✓ |
| Maximum operating current, mA | 100 |
| Power supply | 1400 mAh, 3.7V lithium polymer battery |
| Battery life, h | 10 |
| Operating temperature range, °C | -10...+60 |
| Operating humidity range, % | 20…70 |
