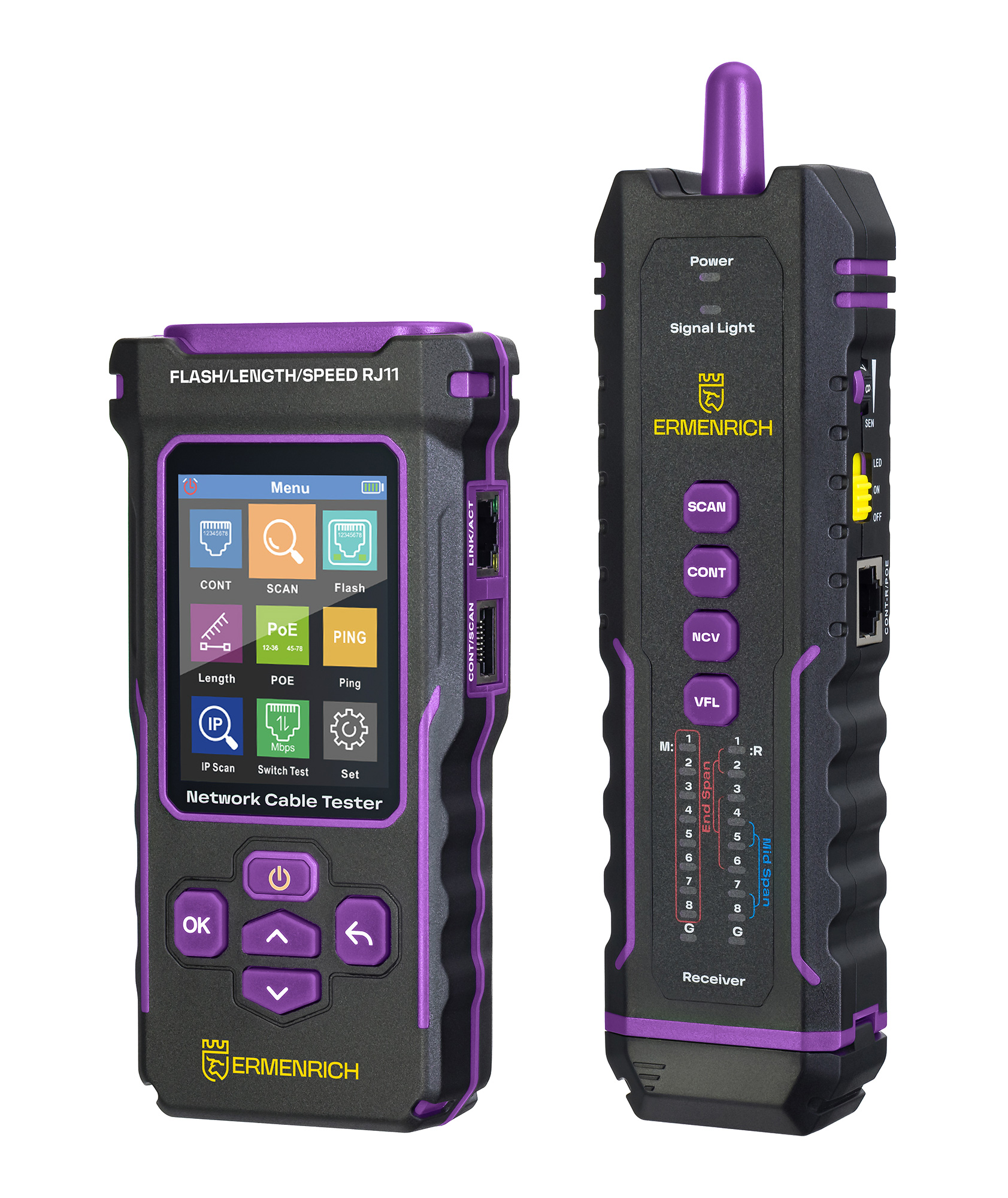

Ermenrich NetGeeks NP50 Multifunctional Cable Tester

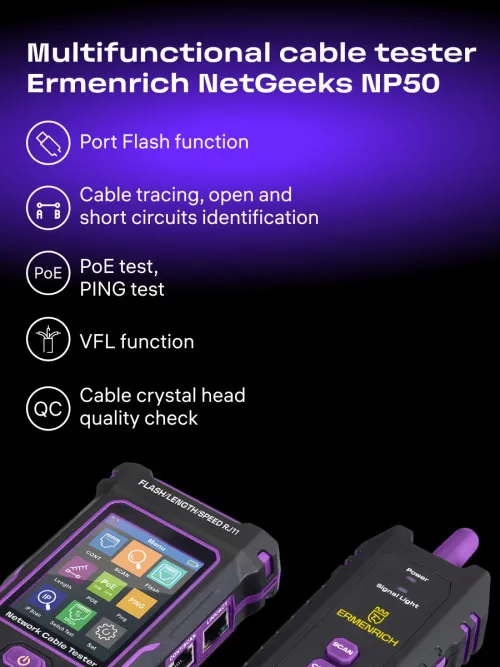

Functions: TDR cable length measurement, cable tracing, Port Flash, VFL function, NCV function, PoE test, PING test, cable crystal head QC
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555023175 |
| Package size (LxWxH) | 24x16x5 cm |
| Shipping Weight | 0.6 kg |
The Ermenrich NetGeeks NP50 multifunctional cable tester is designed for testing STP/UTP network cables of 5/5E/6/6A categories, measuring cable length using the TDR method (within 5–200m), conducting comprehensive diagnostics of telephone and computer networks, and detecting twisted pair. The device will identify the location of open or short circuit on the line, measure the approximate distance to the fault as well as detect crossed pairs. Maximum length of the tested cable: 1000m.
The device has many functions that are useful to specialists who install, maintain, and repair networks in industrial, office, and home environments. Ermenrich NetGeeks NP50 can be used to perform Ethernet network tests: PoE (identifies the PSE type and midspan/endspan) and PING (measure the packet transmission speed, determine the IP address). The Port Flash feature allows you to quickly identify which port on your router or switch your cable is connected to. Using the Visual Fault Locator (VFL), you can locate network faults based on the receiver’s light signals. Light indication is also present in the non-contact voltage detection (NCV) function. All of the diagnostic results are displayed on the transmitter’s color TFT screen.
Key features:
- PSE identification according to IEEE 802.3at/af/bt and non-standard
- Measuring of cable length 5–200m with an error of ±3m
- The receiver features a flashlight that is also used for light indication
- Cable tracing, locating open or short circuits and crossed pairs
- Comprehensive network diagnostics with PoE, VFL, NCV, PING, QC test functions

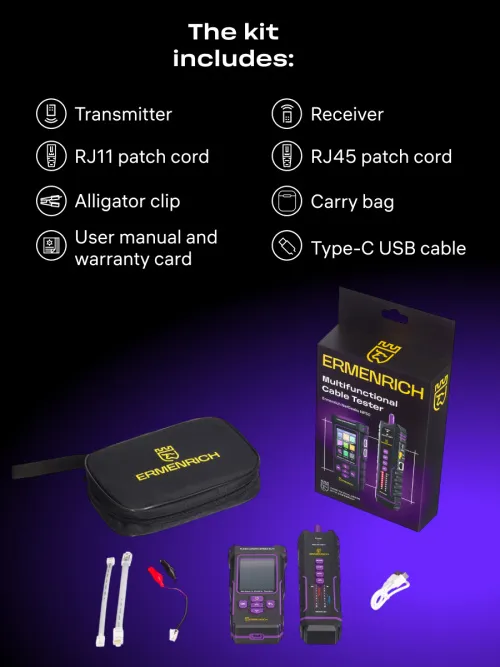

The kit includes:
- Transmitter
- Receiver
- RJ11 patch cord
- RJ45 patch cord
- Alligator clip
- Type-C USB cable
- Carry bag
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555023175 |
| Package size (LxWxH) | 24x16x5 cm |
| Shipping Weight | 0.6 kg |

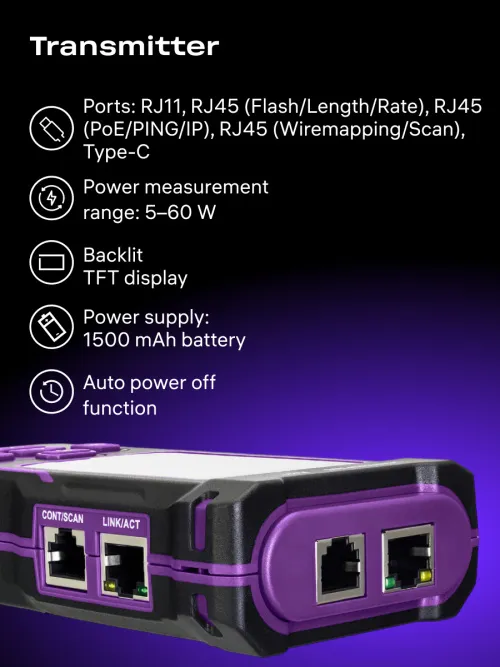

| Transmitter | |
| Ports | RJ11, Type-C, RJ45 (Wiremapping/Scan), RJ45 (PoE/PING/IP), RJ45 (Flash/Length/Rate) |
| Tracing cable types | telephone, common wires, STP/UTP 5/5E/6/6A network cable |
| Testing cable types | STP/UTP 5/5E/6/6A network cable |
| Maximum length of the tested cable, m | 600 (analog), 1000 (digital) |
| Cable length measurement | ✓ |
| Cable testing | + (open circuits, short circuits, crossed pairs) |
| Port flash function | ✓ |
| Cable tracing | ✓ |
| PoE test | ✓ |
| PING test | ✓ |
| Voltage polarity detection | ✓ |
| Visual fault locator (VFL) | ✓ |
| Cable length measurement | |
| Measuring method | time-domain reflectometer (TDR) |
| Units of measurement | meters/yards, feet |
| Measuring range, m | 5 — 200 |
| Error | 3m |
| Measuring the distance to open circuits | ✓ |
| Measuring the distance to short circuit | ✓ |
| Calibration | + |
| Minimum cable length for calibration, m (ft) | 10 (32.8) |
| PoE test | |
| Power source equipment (PSE) type test | non-standard, standard (IEEE 802.3at/af/bt) |
| Midspan/endspan identification | ✓ |
| Power measurement range, W | 5 — 60 |
| Key features | |
| Maximum operating current, mA | 150 |
| Protection | input voltage: 60V |
| Display | TFT |
| Display resolution, px | 128х64 |
| Display backlight | ✓ |
| Power supply | Li-ion battery 3.7V, 1500mAh |
| Battery life, h | 10 |
| Low battery status indicator | ✓ |
| Auto power off | 15 min, 60 min, 30 min |
| Operating temperature range, °C | -10...+60 |
| Operating humidity range, % | 20…70 |

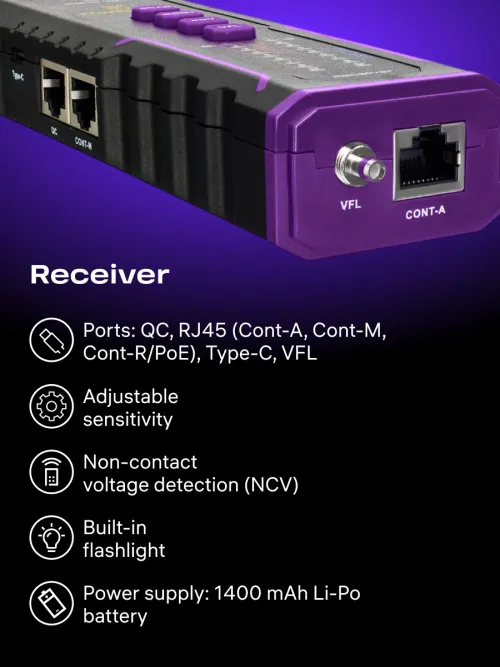

| Receiver / Remote unit | |
| Ports | QC, VFL, Type-C, RJ45 (Cont-A), RJ45 (Cont-M), RJ45 (Cont-R/PoE) |
| Adjustable sensitivity | ✓ |
| Non-contact voltage detection (NCV) | ✓ |
| Сable crystal head QC | ✓ |
| Flash light | ✓ |
| Maximum operating current, mA | 100 |
| Power supply | 1400 mAh, 3.7V lithium polymer battery |
| Battery life, h | 10 |
| Operating temperature range, °C | -10...+60 |
| Operating humidity range, % | 20…70 |
