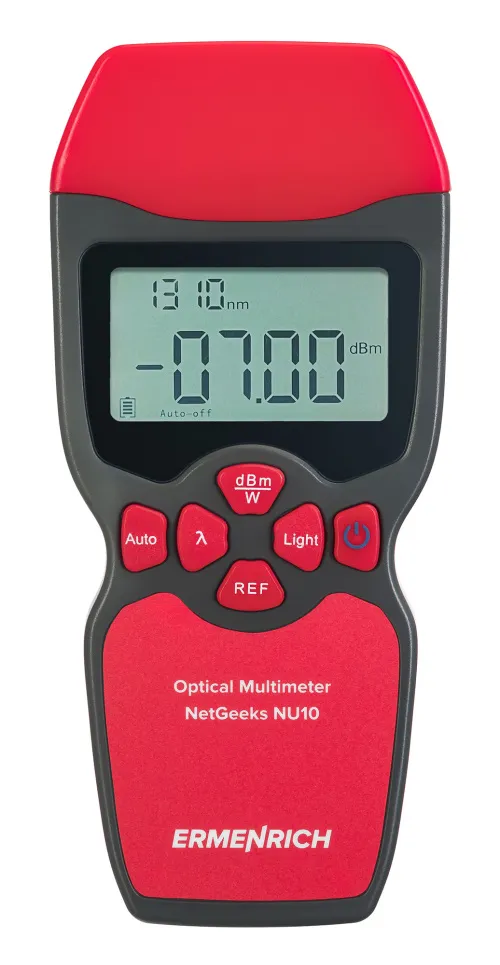

Ermenrich NetGeeks NU10 Optical Multimeter

Description

The Ermenrich NetGeeks NU10 optical multimeter is a compact device for testing fiber-optic communication lines. You can measure the absolute optical power or relative loss of optical power between two points in the fiber optic cable. The device is useful to those who install and maintain cable networks or inspect and certify telecommunications equipment.

The multimeter supports six wavelengths: You can select the desired one with a push of a button. The FC/SC/ST interfaces are used for connection. There is an option to set the reference level for the current wavelength, which makes it easier to determine the power loss. The measurements are displayed on the built-in backlit screen. The device runs on batteries. The auto-off function helps save the power.

Key features:

Absolute and relative optical power measurements
FC/SC/ST connectors, supports 6 wavelengths
Option to set the reference level
Powered by batteries; auto-off function
Portable design and simple operation

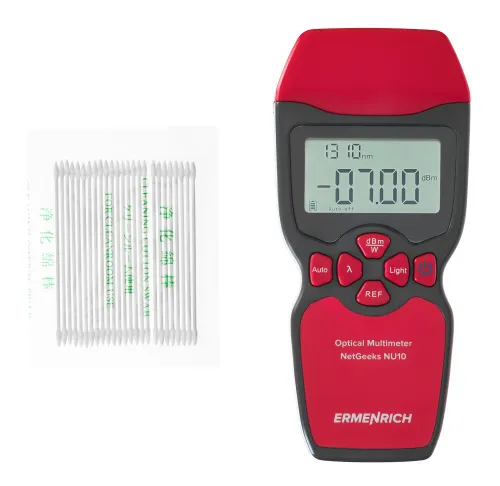

The kit includes:

Transmitter

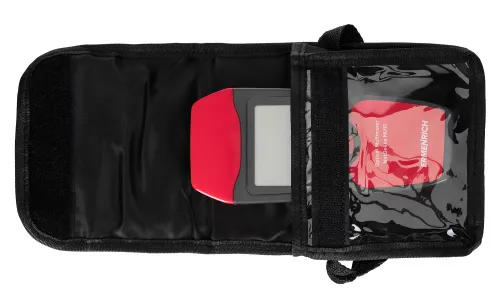

Pouch
Cotton swabs
User manual and warranty card

Specifications

Product ID
Brand	Ermenrich
Warranty	5 years
EAN	5905555017006
Package size (LxWxH)	19x15x6 cm
Shipping Weight	0.335 kg
Type	optical multimeter
Optical power meter wavelength, nm	850/ 1300/ 1310/ 1490/ 1550/ 1625

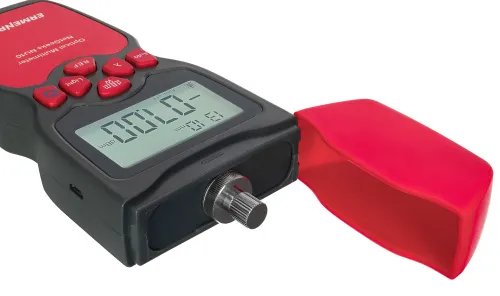

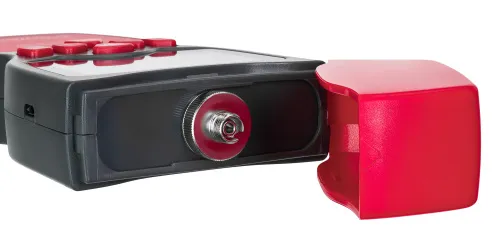

Fiber connector type	FC, SC, ST
Maintained cable type	single-mode (SM), multimode (MM)
Units of measurement	dB, dBm, W
Power detection range, dBm	-50 — 26
Option to set the reference level	✓
Display	FSTN LCD
Display backlight	✓

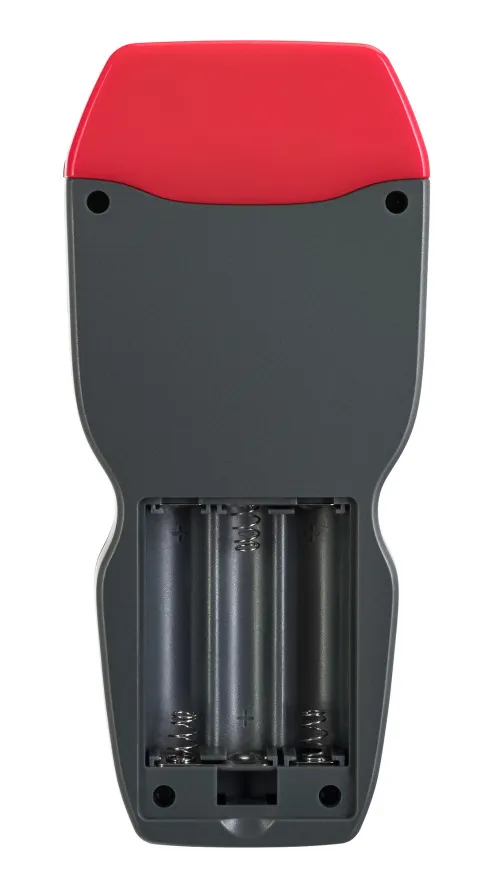

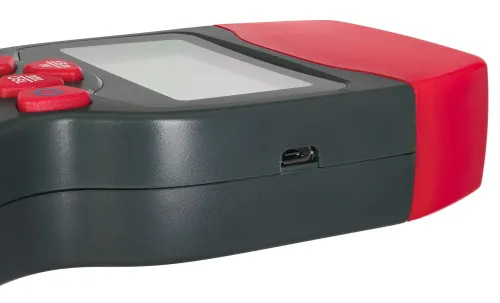

Power supply	3 AAA batteries (not included) or AC power (a microUSB cable and an AC adapter not included)
Low battery status indicator	✓
Auto power off	✓
Operating temperature range, °C	-10...+60
Operating humidity range, %	20 — 60
