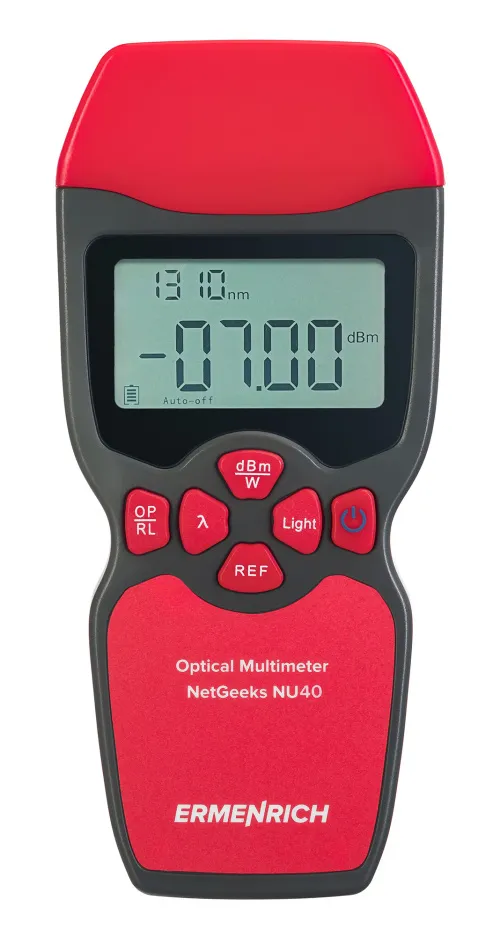

Ermenrich NetGeeks NU40 Optical Multimeter
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017037 |
| Package size (LxWxH) | 19x15x6 cm |
| Shipping Weight | 0.36 kg |
Optical multimeter, or optical power meter, Ermenrich NetGeeks NU40 – an essential tool for professionals who install and maintain fiber-optic communication lines (FOCL). The device allows you to measure the absolute power and find losses between two points in the line. It has a light source function for checking fiber optic cables. The multimeter is equipped with two connectors and it supports a hybrid operating mode: When testing a cable, it can simultaneously act as an optical power meter and a light source for assessing signal loss.
The device is equipped with FC, SC, ST connectors and can work with single-mode and multi-mode cables. You can adjust and select the operating mode with the buttons. The measurements are displayed on the built-in screen, which has a backlight for low-light conditions. The multimeter is powered by standard batteries (not included).
Key features:
- Supports single-mode and multi-mode cables, FC, SC, ST connectors
- Measuring absolute and relative optical power, six wavelengths
- Light source function for checking fiber optic cables
- Hybrid cable operating mode: The device is a light source and an optical power meter
- Powered by standard batteries, auto-off function to save battery power
The kit includes:
- Transmitter
- Pouch
- Cotton swabs
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017037 |
| Package size (LxWxH) | 19x15x6 cm |
| Shipping Weight | 0.36 kg |
| Type | optical multimeter |
| Optical power meter wavelength, nm | 850/ 1300/ 1310/ 1490/ 1550/ 1625 |
| Fiber connector type | FC, SC, ST |
| Maintained cable type | single-mode (SM), multimode (MM) |
| Units of measurement | dB, dBm, W |
| Power detection range, dBm | -50 — 26 |
| Option to set the reference level | ✓ |
| Display | FSTN LCD |
| Display backlight | ✓ |

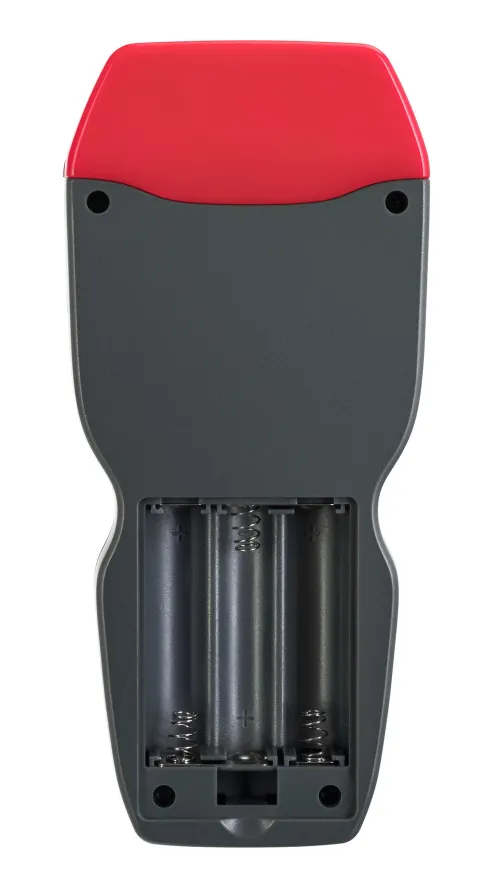

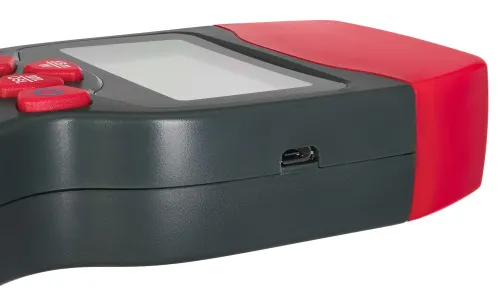

| Power supply | 3 AAA batteries (not included) or AC power (a microUSB cable and an AC adapter not included) |
| Low battery status indicator | ✓ |
| Auto power off | ✓ |
| Operating temperature range, °C | -10...+60 |
| Operating humidity range, % | 20 — 70 |
