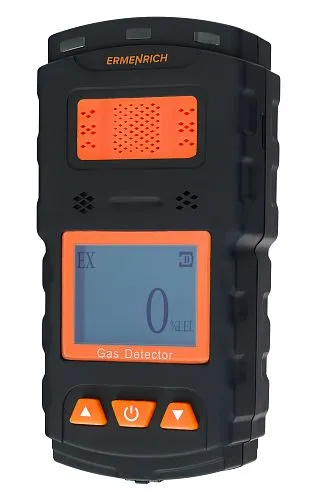

Ermenrich NG35 Gas Detector

Portable gas detector for detecting flammable gas leaks

Ermenrich NG35 Gas Detector
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555018621
Package size (LxWxH) 21x15x8 cm
Shipping Weight 0.625 kg
All specifications
Description

The Ermenrich NG35 gas detector is a compact, portable device that enables you to quickly detect the presence of flammable gases: natural gas, methane, ethane, propane, and butane. The sensitive sensor detects gas concentrations in the range of 0% to 100% LEL; the alarm threshold can be set independently. The response speed is less than 30 seconds, which allows you to quickly detect gas leaks and ensure safety at work or at home.

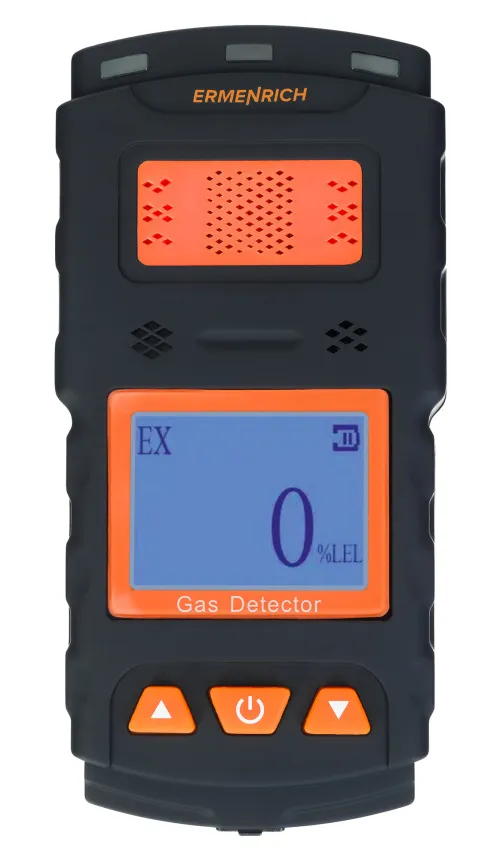

The LCD display shows the concentration level, battery charge level, and the current date and time. When the alarm setpoint is exceeded, the device alerts you with sound, light, or vibration. If necessary, you can view the results of the previous measurements.

The power source is a lithium-ion rechargeable battery, a full charge of which lasts 8 hours. The battery is charged via a USB cable with an AC adapter. The battery charge indicator will notify you of the need to charge the device, ensure uninterrupted operation, and avoid errors in measurements.

Key features:

  • Detection of flammable gas concentrations in the range of 0–100% LEL
  • Adjustable alarm setpoint
  • Three types of alerts: light, sound, vibration
  • Up to 8 hours battery life

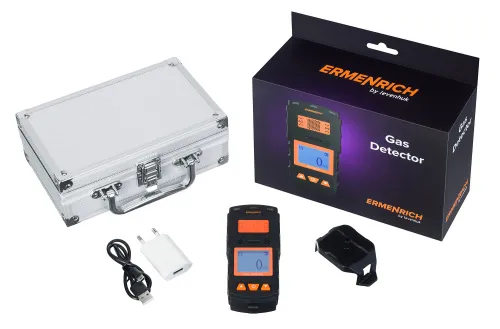

The kit includes:

  • Gas detector
  • USB cable
  • AC adapter

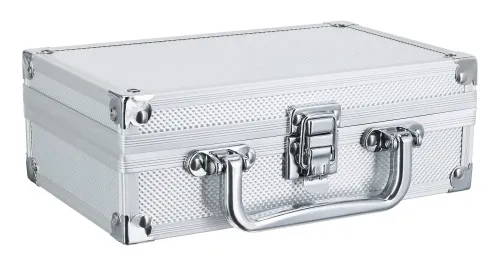

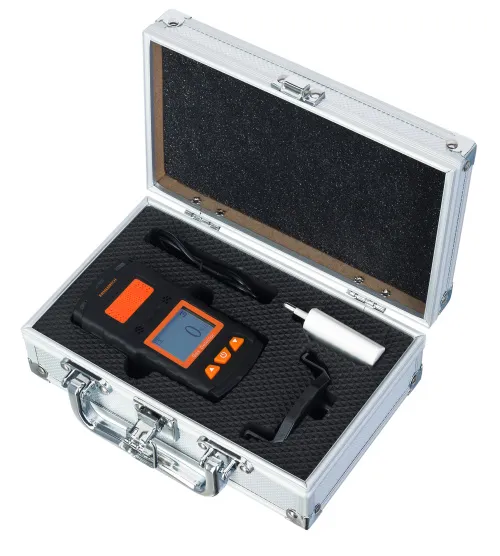

  • Aluminum case
  • User manual and warranty card
Specifications
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555018621
Package size (LxWxH) 21x15x8 cm
Shipping Weight 0.625 kg
Combustible gases to be detected natural gas, methane, ethane, propane, butane
Measuring range 0–100% LEL
Units of measurement % LEL
Response time <30 s
Alarm setpoint lower: 20% LEL, upper: 50% LEL
Manual alarm setpoints
Low battery status indicator
Display LCD

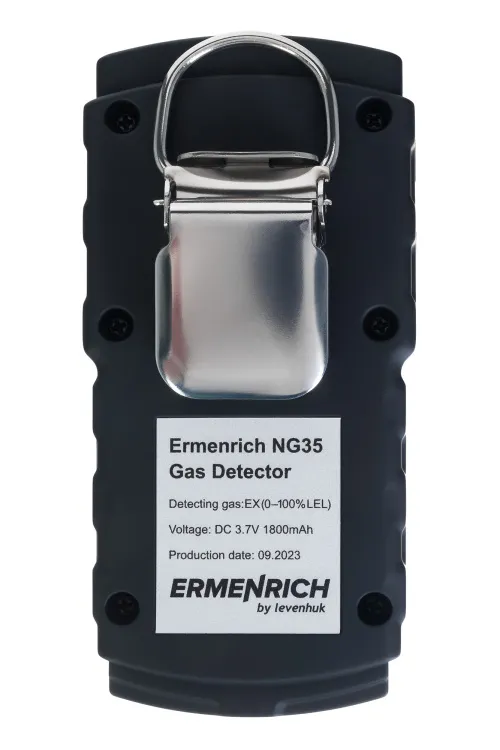

Power supply 3.7V 1800mAh lithium-ion rechargeable battery (charging via USB cable with a 5V/2A AC adapter)
Battery life, h 8
Battery charging time, h 6 — 8
Operating life of one set of batteries ≥8 h
Explosion-proof ex Ib IIB T3 Gb
Waterproof IP65; full dust protection; protection from jets of water
Operating temperature range, °C -20...+50
Operating humidity range, % 0 — 95
