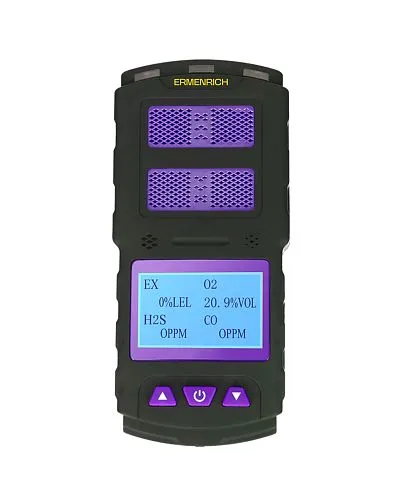

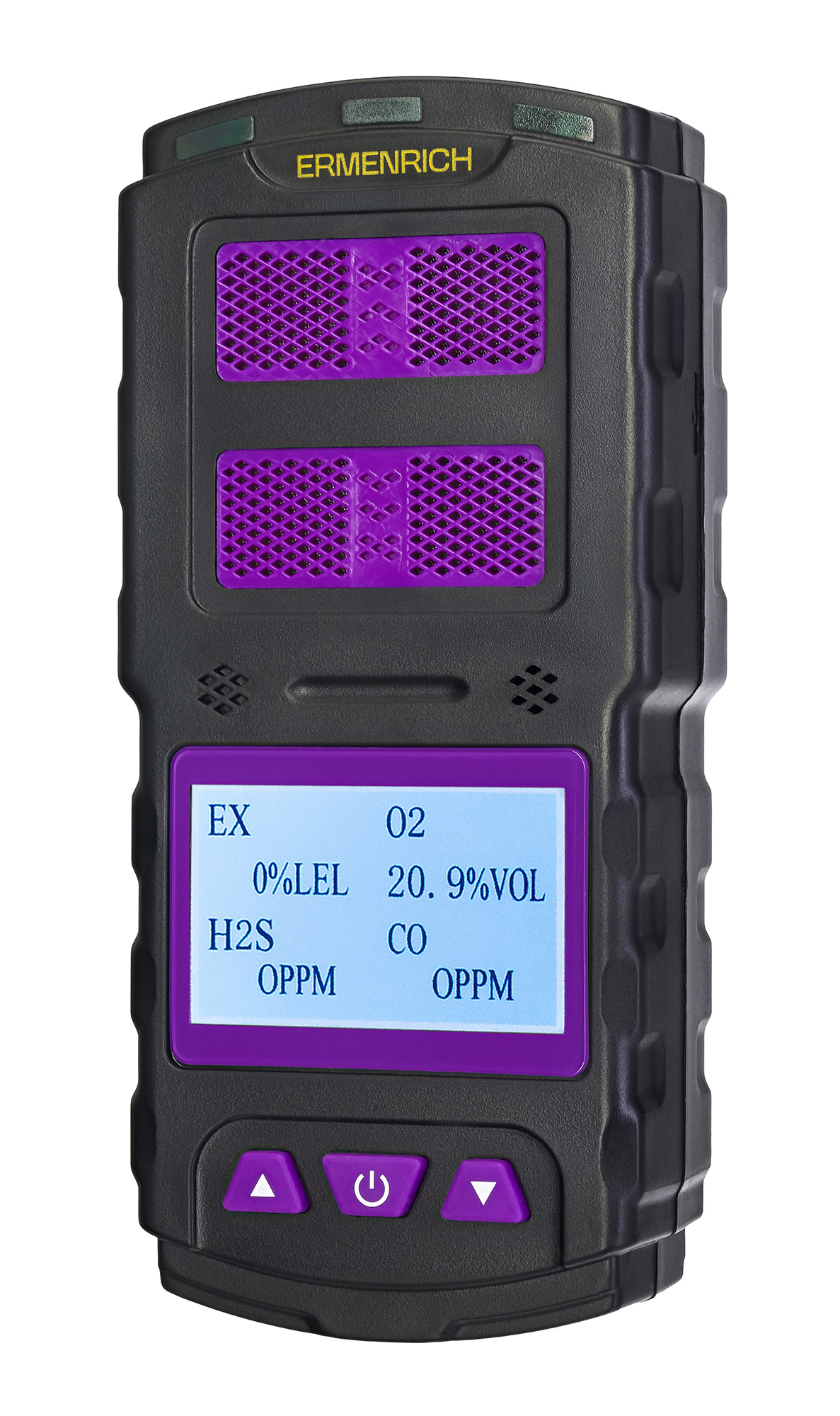

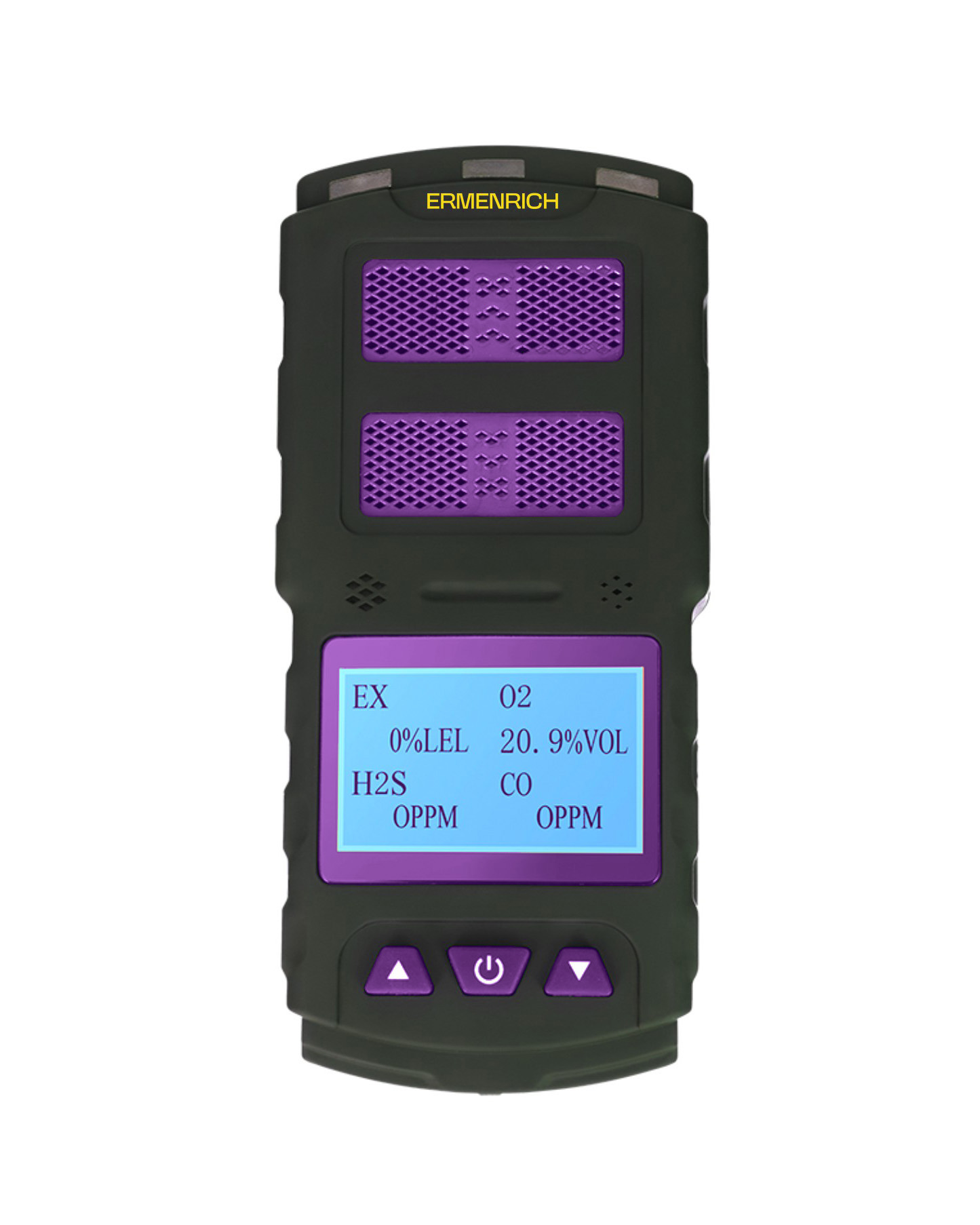

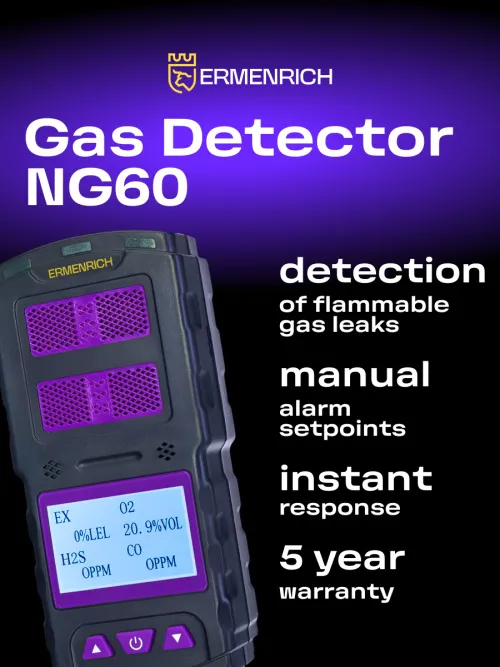

Ermenrich NG60 Gas Detector

Portable gas detector for detecting flammable gas leaks

Product ID
Brand	Ermenrich
Warranty	5 years
EAN	5905555024349
Package size (LxWxH)	21x15x8 cm
Shipping Weight	0.67 kg

All specifications

Description

The Ermenrich NG60 gas detector is essential to determine the concentration of flammable gases, hydrogen sulfide, and oxygen in the air and ensure safety at work or at home. Depending on the gas type, the device measures its concentration in % LEL (Lower Explosive Limit), ppm, or VOL. Alarm setpoints can be adjusted manually.

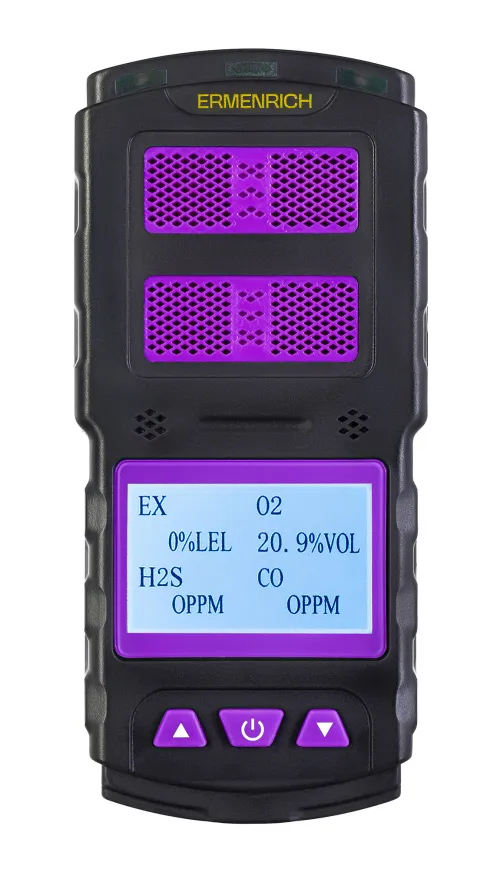

Readings are displayed on the LCD screen. When the alarm setpoint is exceeded, the detector alerts you with sound, light, or vibration. Power is supplied by a 2000mAh lithium-ion rechargeable battery, which provides 16–18 hours of operation. The low battery indicator will tell you when the device needs to be charged.

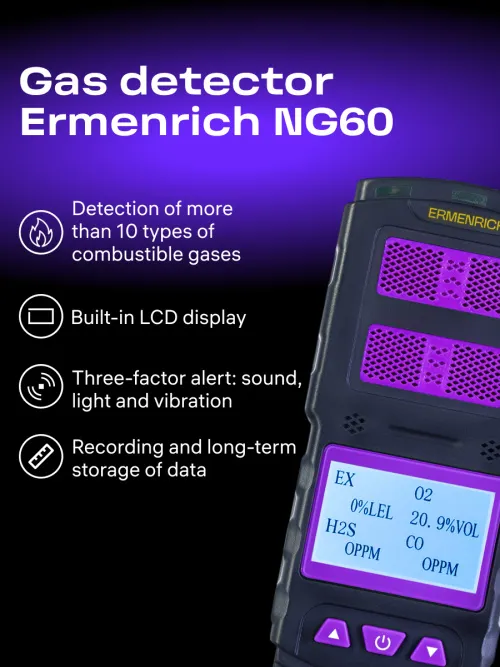

Key features:

Measuring the concentration of flammable gases, hydrogen sulfide, oxygen, carbon monoxide
Adjustable alarm setpoints
Three types of alerts (sound, light, vibration)
Up to 18 hours of lithium-ion battery life
LCD display, low battery indicator

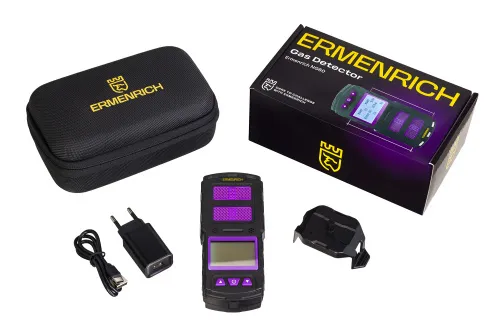

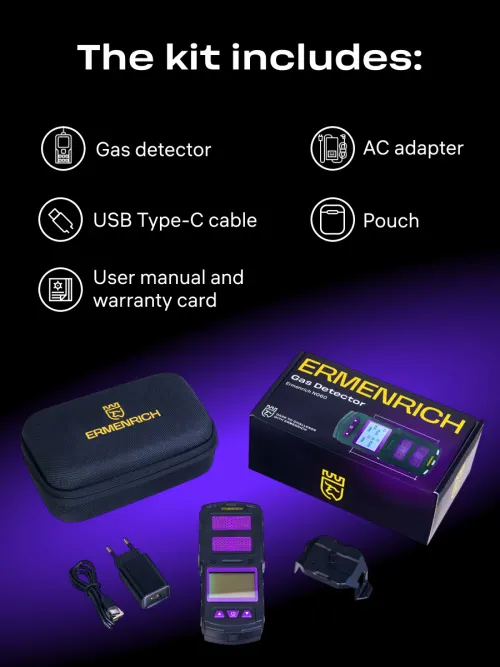

The kit includes:

Gas detector
USB cable
AC adapter

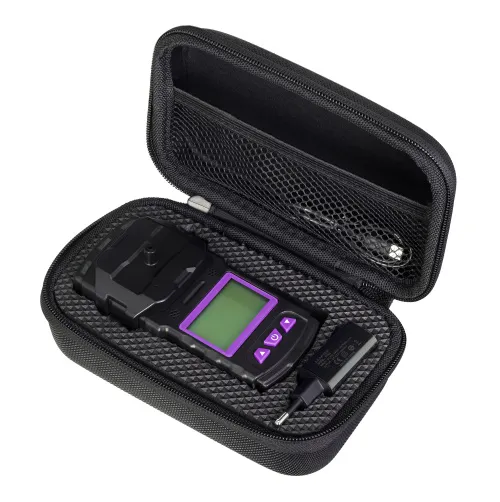

Aluminum case
User manual and warranty card

Specifications

Product ID
Brand	Ermenrich
Warranty	5 years
EAN	5905555024349
Package size (LxWxH)	21x15x8 cm
Shipping Weight	0.67 kg
Combustible gases to be detected	oxygen, hydrogen, carbon monoxide, methane, ethane, propane, butane, ethylene, propylene, butene, acetylene, propyne, butyne, hydrogen sulfide, phosphine, etc.

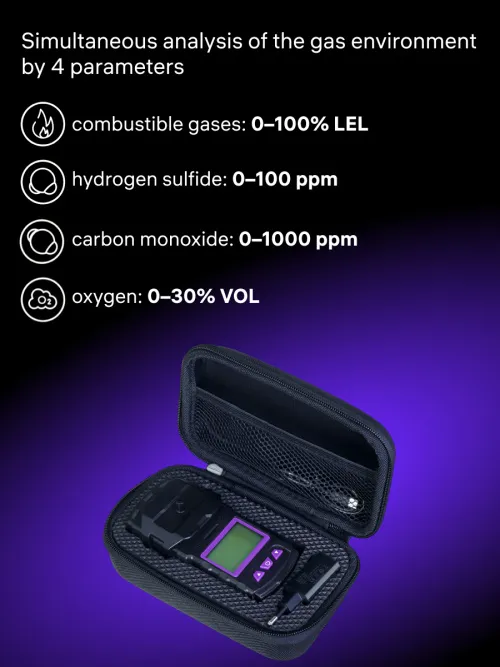

Measuring range	flammable gases: 0–100% LEL; hydrogen sulfide: 0–100 ppm; carbon monoxide: 0–1000ppm; oxygen: 0–30% VOL
Units of measurement	flammable gases: % LEL; hydrogen sulfide: ppm; carbon monoxide: ppm; oxygen: VOL

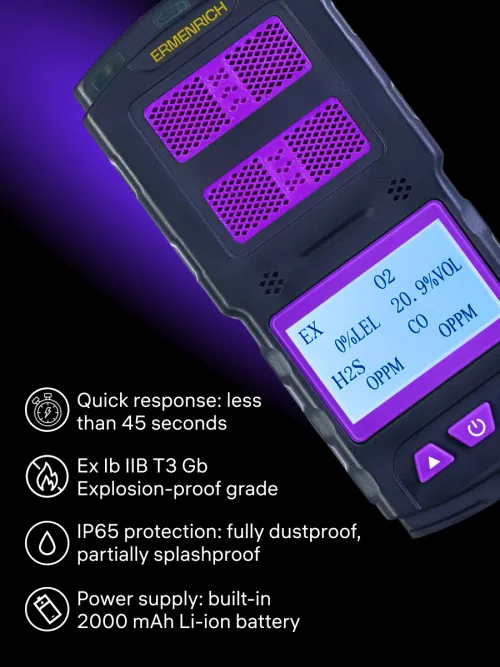

Response time	<45 s
Alarm setpoint	flammable gases: 20% LEL (lower), 50% LEL (upper); hydrogen sulfide: 10ppm (lower), 20ppm (upper); carbon monoxide: 50ppm (lower), 200ppm (upper); oxygen: 19.5% VOL (lower), 23.5% VOL (upper)
Manual alarm setpoints	✓
Display	LCD
Low battery status indicator	✓

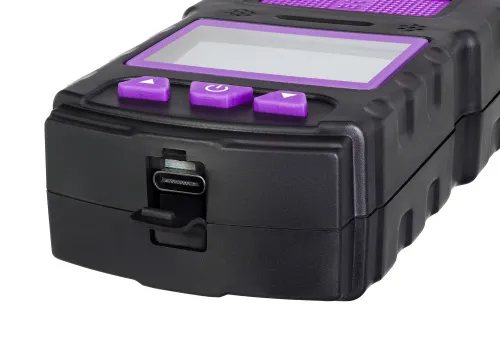

Power supply	3.7V 2000mAh lithium-ion rechargeable battery (charging via USB cable with a 24V/1A AC adapter)
Battery life, h	16 — 18
Battery charging time, h	6 — 8
Explosion-proof	ex Ib IIB T3 Gb
Waterproof	IP65; full dust protection; protection from jets of water
Operating temperature range, °C	-20...+50
Operating humidity range, %	0 — 95
