Description

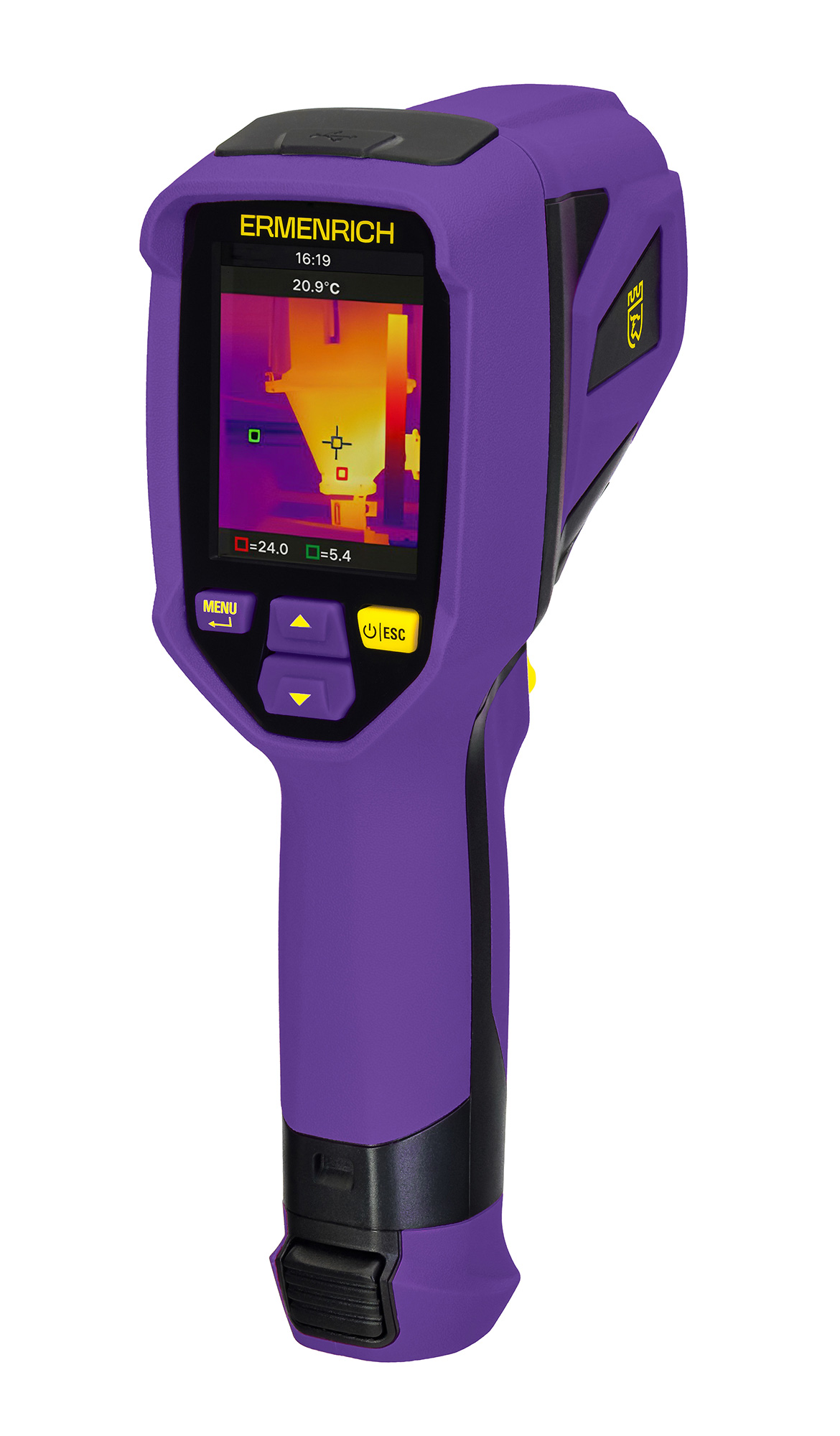

The Ermenrich Seek TV55 Thermal Camera is a handheld measuring device that is designed for professionals in construction, maintenance, and utility repair. It is suitable for detecting heat leaks in walls, windows, and roofs; diagnosing electrical wiring overloads; monitoring HVAC systems; inspecting masonry quality; and locating hidden defects.

The core component of the device is a 120x90px sensor with high thermal sensitivity of 40mK, which enables detecting minimal temperature differences. The thermal camera measures temperature across a wide range of −20°C to +400°C, covering most construction and domestic tasks.

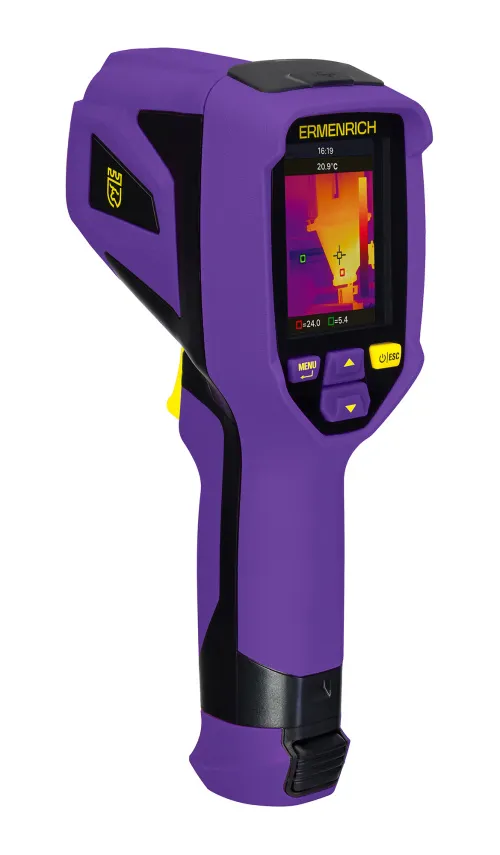

All of the data is displayed on a bright 2.4" LCD display. A 25Hz refresh rate ensures smooth and lag-free imaging. For thermogram analysis, eight color palettes are available. The built-in recorder allows you to take photos with temperature data and record videos. Data is saved to its internal memory or a microSD card. Files can be easily transferred to a computer via a USB Type-C cable. The software for photo and video processing and thermogram analysis as well as creating and sending reports is available for download in the “References and downloads” section. It is designed for the Windows platform.

You can quickly and easily locate problem areas thanks to the automatic tracking of three temperature types: highest, lowest, and spot temperature at the center. An adjustable emissivity setting guarantees accurate temperature readings for various materials. The auto power-off function saves battery power, and a low battery indicator promptly warns you when it is time to recharge.

The device is powered by a 2600mAh lithium-ion battery, providing up to four hours of continuous operation. The thermal camera is designed to operate in an environment with ambient temperatures ranging from 0°C to +50°C.

Key features:

120x90px sensor with high sensitivity (40mK)
Wide measurement range: –20°C to +400°C
Bright 2.4-inch LCD display with a 25Hz refresh rate and 240x320px resolution
8 color palettes for convenient thermogram analysis
Built-in recorder with support for saving photos and videos to both internal memory and a microSD card

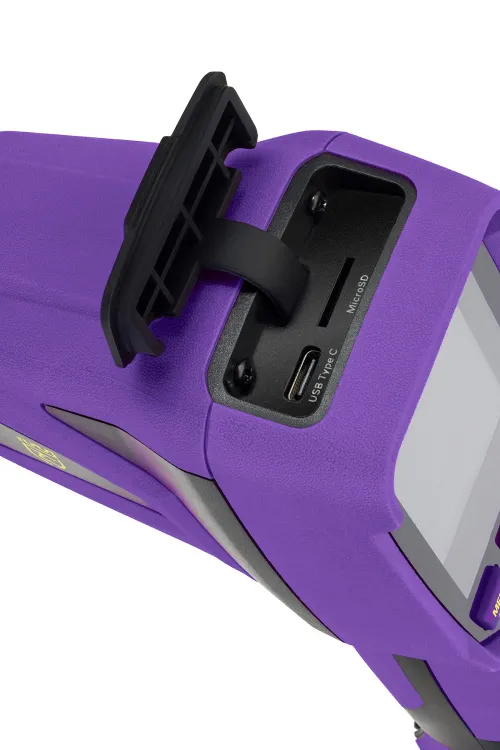

Data transfer to a PC via a wired connection, USB Type-C port
2600mAh Li-ion battery; up to 4 hours of battery life
Windows software for thermogram analysis and saving

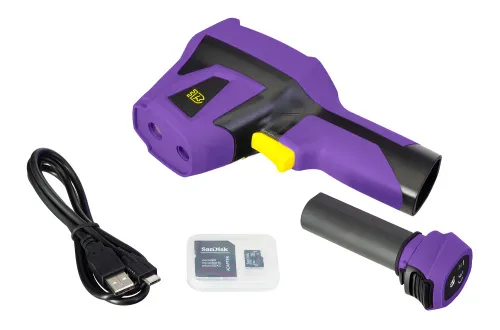

The kit includes:

Thermal camera
USB Type-C cable
Rechargeable battery

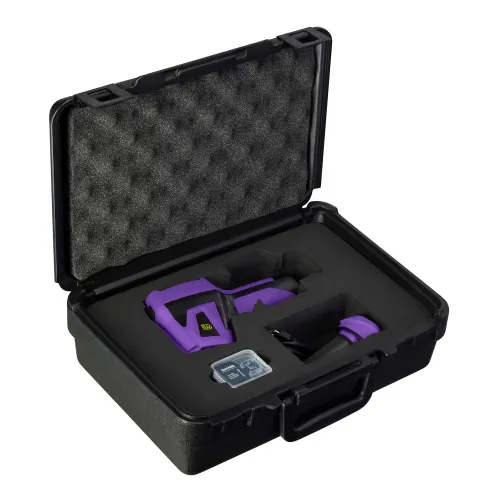

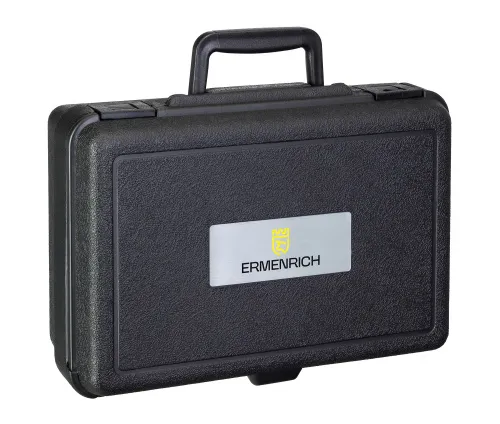

Case
8GB microSD memory card with an SD adapter
User manual and warranty card

Specifications

Product ID
Brand	Ermenrich
Warranty	5 years
EAN	5905555027418
Package size (LxWxH)	35x14x24 cm
Shipping Weight	1.73 kg
Type of thermo vision device	manual
Resolution of microbolometer matrix, px	120x90
Spectral range, μm	8–14
Frame rate	25 Hz
Temperature measuring range, °С	-20 — 400
Temperature error, %	resolution: 0.1°C (°F), ±2°C or ±2% (whichever is greater, at an ambient temperature of +10°C to +35°C)
Color palettes	blue-red, brown, feather, gray, hot-cold, inverted gray, iron, rainbow
Field of view (horizontal)x(vertical), °	50x37, 7.6mrad (instantaneous)
Display	LCD
Display diagonal, inch	2.4
Display resolution, px	240x320
Operating mode	IR mode

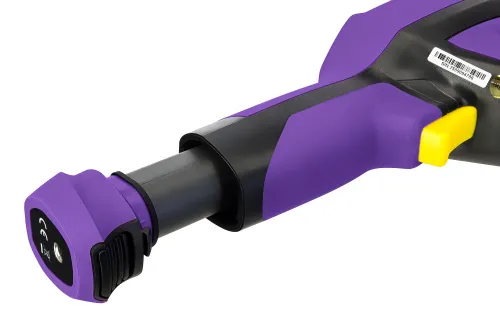

Power supply	2600mAh 3.7V Li-ion battery; charging via USB Type-C cable (included) and 5V/2.4A adapter (not included)
Battery life, h	4
Operating temperature range, °C	0...+50
Software	Thermview Pro software for Windows
System requirements	for PC: Windows 10 or later, .NET Framework 4.5
Built-in recorder	✓
Memory	8GB microSD card; 3.4GB of internal storage
Video format	*.mp4
Image format	.jpg, .hir (with temperature data)
Interface connectors	USB Type-C
Pouch/case/bag in set	case
Additional	a low battery indicator, adjustable emissivity from 0.1 to 0.99, auto-off function, response time: 12ms, 3 temperature markers on the screen: lowest, highest, and center point
