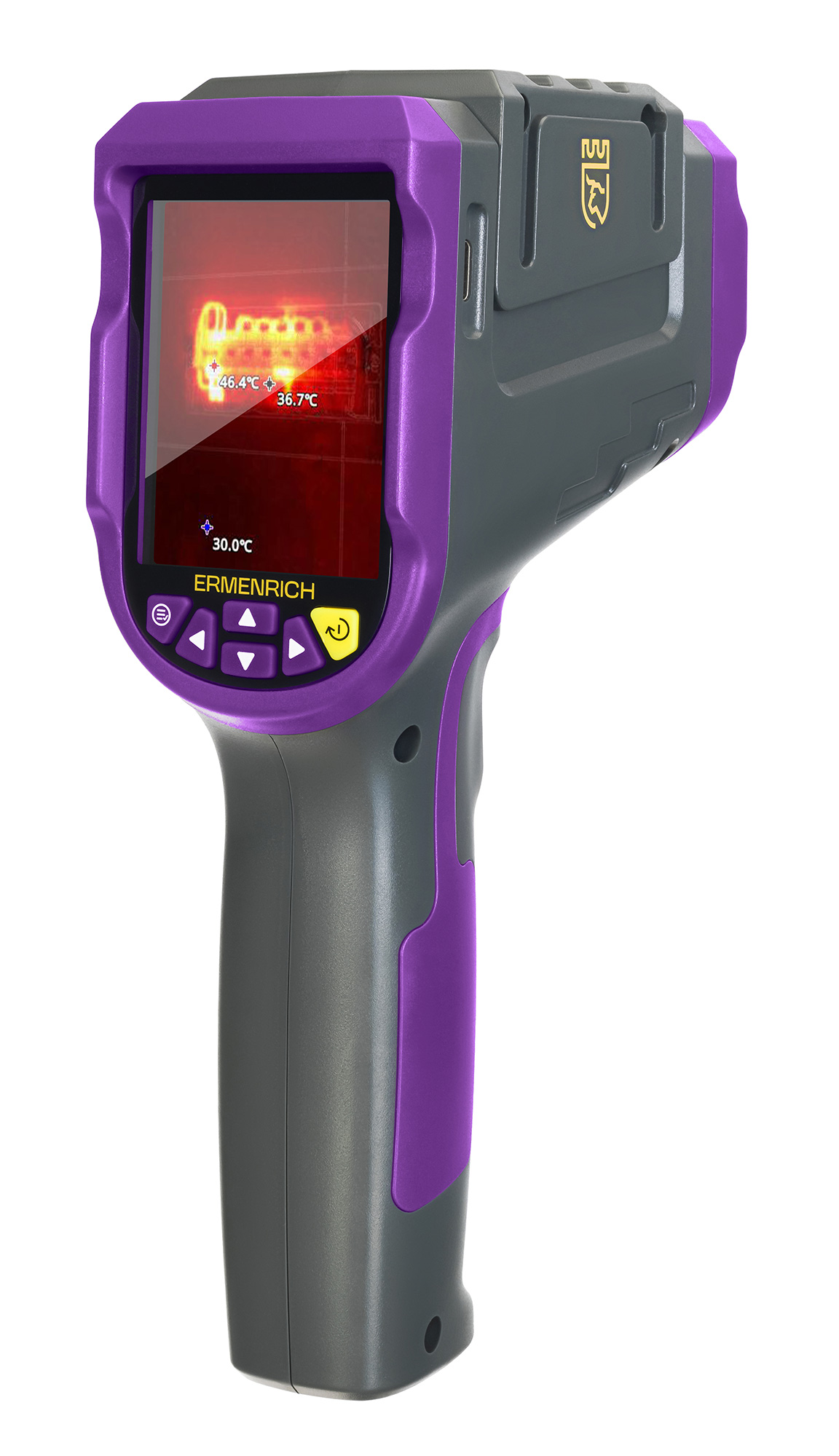

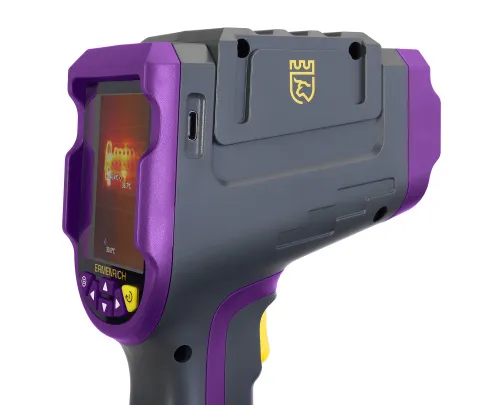

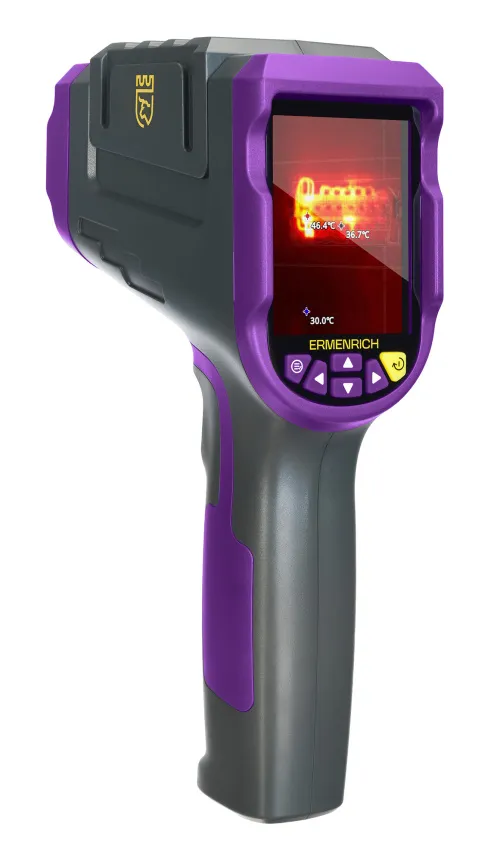

Ermenrich Seek TV70 Thermal Camera
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555020792 |
| Package size (LxWxH) | 26x16x8 cm |
| Shipping Weight | 0.57 kg |
The Ermenrich Seek TV70 Thermal Camera will help you to inspect electrical equipment, find heat leaks in the facades and foundations of buildings, or monitor the installation of heating systems. The range of measured temperatures of the thermal camera is −20 to +400°C (−4… +204°F).

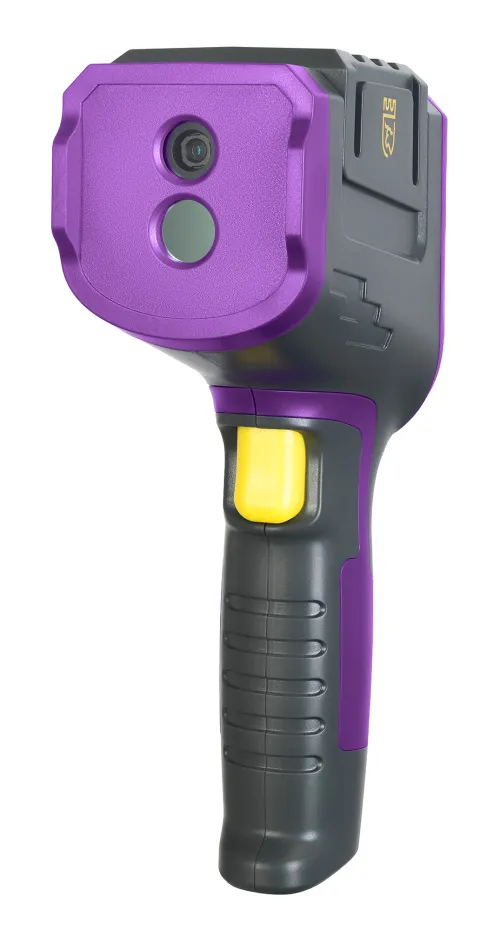

The thermal camera is equipped with a 120x90px thermal imaging module and a 1MP visible light camera. Image display modes available: visible light mode, infrared mode, edge fusion mode, dual light fusion mode, and picture-in-picture function. The image on the color LCD screen is displayed in one of 8 color palettes.
The measurement process can be captured in photos or on video. The data is saved to a built-in 8GB memory card.

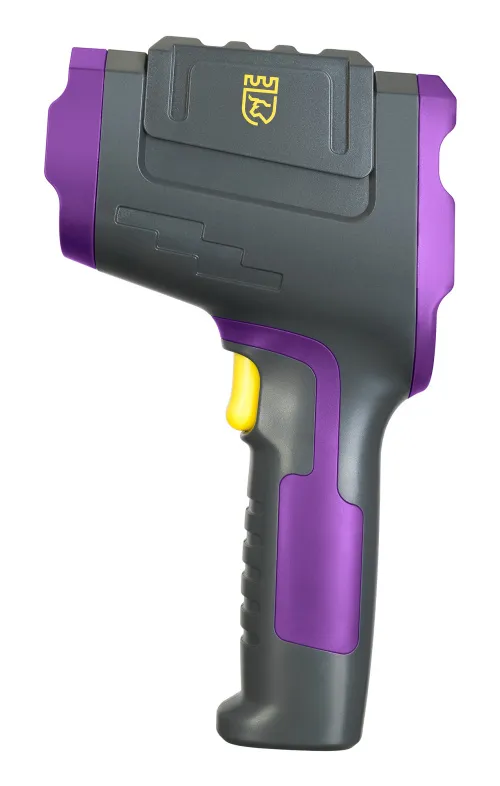

The body has an ergonomic handle and six control buttons. A 2600mAh lithium battery is used for power supply. Its charge is enough for 4 hours of continuous operation. The automatic shutdown function and a battery charge indicator will help you save energy. A USB Type-C cable is used for charging.
Key features:
- Construction thermal camera with a 120x90px sensor and 1MP camera
- 8 color palettes, different display modes and picture-in-picture functionality
- 240x320px LCD screen
- Records photos and videos to 8GB internal memory
- 2600mAh lithium battery, USB cable for battery charging
- Continuous operation time of up to 4 hours, automatic shutdown

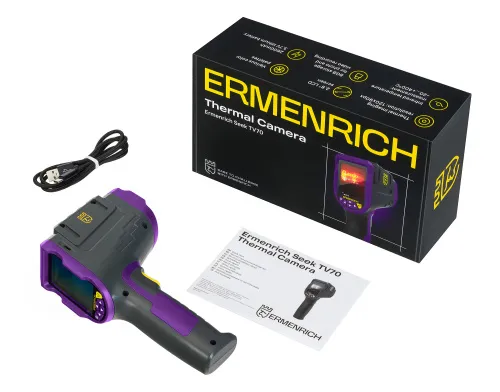

The kit includes:
- Thermal camera
- USB Type-C cable
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555020792 |
| Package size (LxWxH) | 26x16x8 cm |
| Shipping Weight | 0.57 kg |
| Type of thermo vision device | manual |
| Resolution of microbolometer matrix, px | 120x90 |
| Spectral range, μm | 8–14 |
| Frame rate | 25 Hz |
| Temperature measuring range, °С | -20 — 400 |
| Temperature error, % | resolution: 0.1°C (°F), accuracy: <100°C: ±2°C; ≥100°C: ±2% |
| Temperature sensitivity (NETD), mK | <70 |
| Color palettes | high contrast, hot black, hot green, hot red, hot white, lava, rainbow, red iron |
| Field of view (horizontal)x(vertical), ° | 38x50, 7.39mrad (instantaneous) |
| Fusion of optical and thermal imagery | + |
| Display | LCD |
| Display diagonal, inch | 2.8 |
| Display resolution, px | 240x320 |
| Operating mode | IR mode, IR edge detection mode, Dual light vision mode, Visible light mode |
| Power supply | 2600mAh lithium battery; charging via a USB Type-C cable (included) |
| Battery life, h | 4 |
| Maximum load (impact), g | drop from a height of up to 1m (3.3ft) |
| Built-in recorder | ✓ |
| Memory | built-in, 8GB |
| Video format | *.mp4 |
| Image format | *.jpg |
| Interface connectors | USB (C-type) |
| Additional | a low battery indicator, picture-in-picture mode, camera resolution: 1MP, adjustable emissivity from 0.1 to 0.99, response time: 12ms, auto-off |
