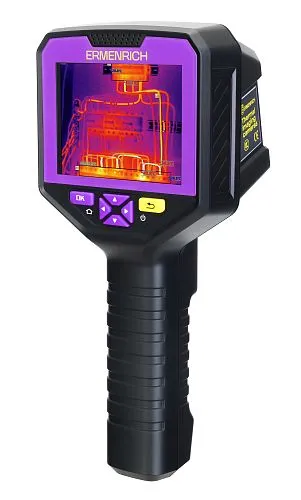

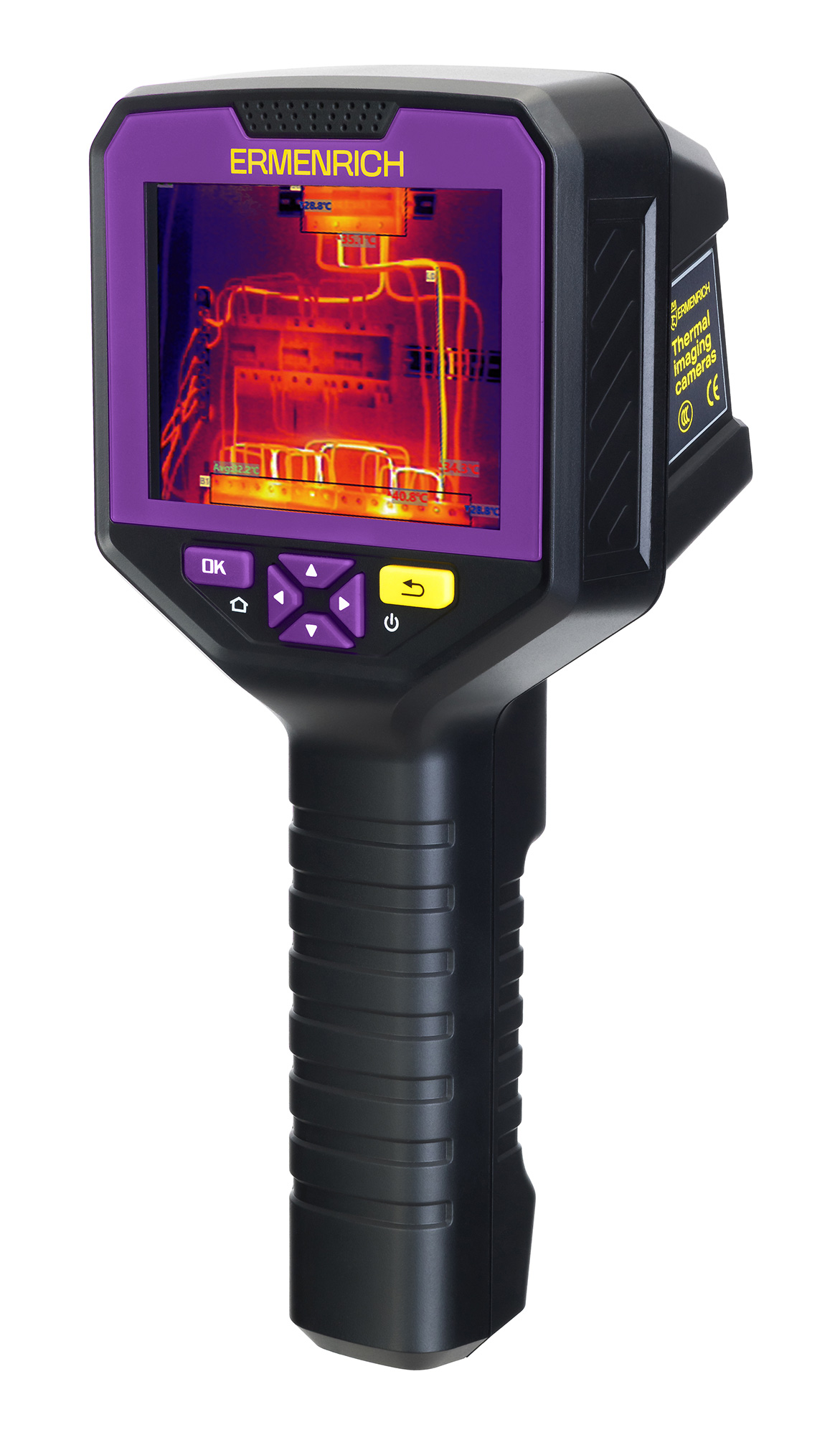

Ermenrich Seek TV90 Thermal Camera
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555020808 |
| Package size (LxWxH) | 27x15x11 cm |
| Shipping Weight | 0.86 kg |
The construction thermal camera Ermenrich Seek TV90 is used to control the quality of equipment and work performed in construction, industry, installation of heating systems, and car and equipment repair. It is even useful in pest control, such as finding small animals in buildings. The range of measured temperatures of the device is −20 to +400°C (−4… +204°F).

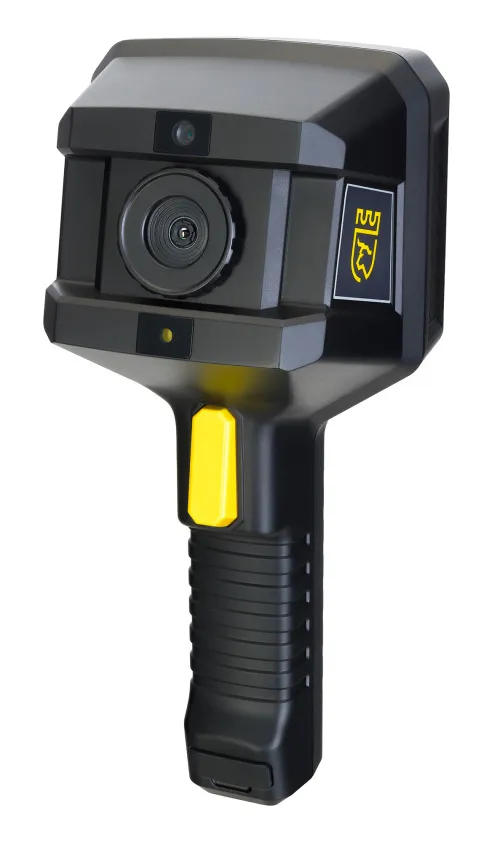

Ermenrich Seek TV90 is equipped with a thermal imaging sensor with a resolution of 256x192px and a visible light camera. Display modes available: infrared, visible light, dual light fusion, and infrared edge detection modes. The picture-in-picture function allows you to work in two modes simultaneously.

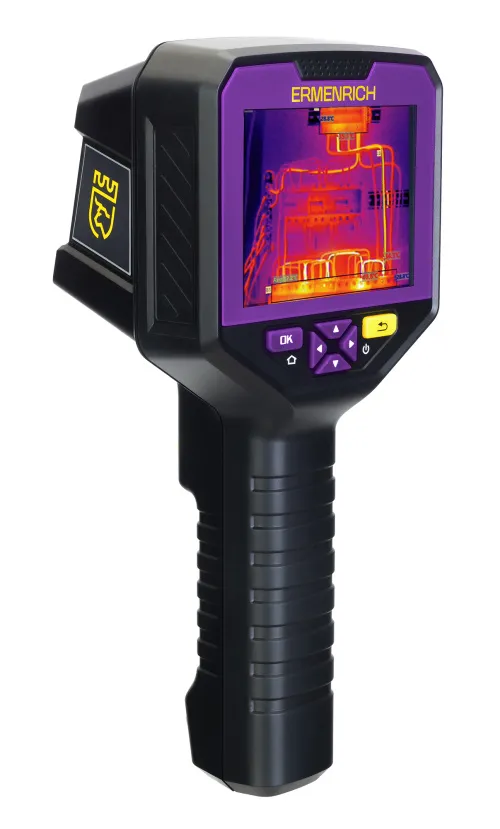

The 3.5" LCD screen with a resolution of 240x320px displays the image in one of 8 color modes. You can record videos and photos that are saved to the built-in 8GB memory.
The device is powered by a 2600mAh, 3.7V lithium battery. One charge lasts up to 4 hours of continuous operation. To save energy, there is an automatic shutdown function and a charge level indication.
Key features:
- Construction thermal camera, measured temperature range is from −20 to +400°C (−4… +204°F)
- Thermal imaging sensor 256x195px, visible light camera
- Display modes: infrared, visible light, dual light fusion, infrared edge detection, picture-in-picture
- 3.5" color LCD screen, 8 color palettes
- 2600mAh lithium battery, 3.7V
- Continuous operation time of 4 hours, automatic shutdown

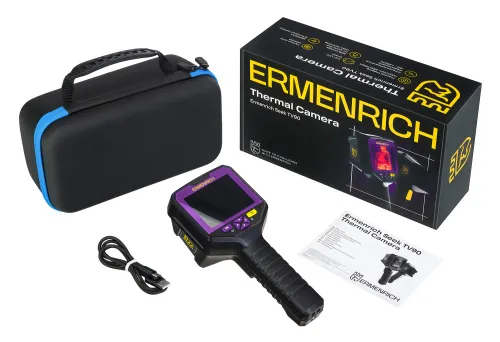

The kit includes:
- Thermal camera
- USB Type-C cable

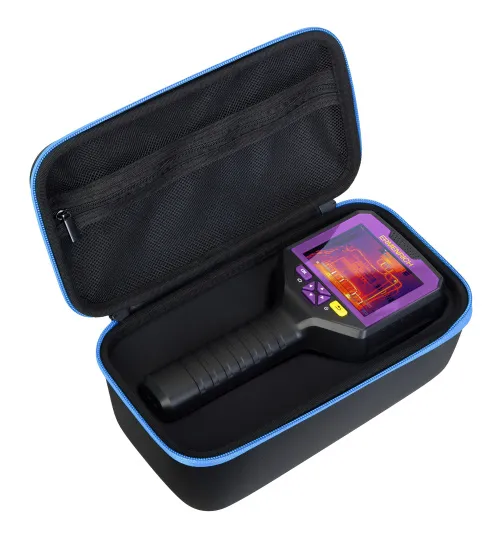

- Pouch
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555020808 |
| Package size (LxWxH) | 27x15x11 cm |
| Shipping Weight | 0.86 kg |
| Type of thermo vision device | manual, tripod mountable |
| Resolution of microbolometer matrix, px | 256х192 |
| Spectral range, μm | 8–14 |
| Frame rate | 25 Hz |
| Temperature measuring range, °С | -20 — 400 |
| Temperature error, % | resolution: 0.1°C (°F), accuracy: <100°C: ±2°C; ≥100°C: ±2% |
| Temperature sensitivity (NETD), mK | <70 |
| Color palettes | high contrast, hot black, hot green, hot red, hot white, lava, rainbow, red iron |
| Field of view (horizontal)x(vertical), ° | 56x42, 3.75mrad (instantaneous) |
| Fusion of optical and thermal imagery | + |
| Display | LCD |
| Display diagonal, inch | 3.5 |
| Display resolution, px | 240x320 |
| Operating mode | IR mode, IR edge detection mode, Dual light vision mode, Visible light mode |
| Power supply | 2600mAh lithium battery; charging via a USB Type-C cable (included) |
| Battery life, h | 4 |
| Maximum load (impact), g | drop from a height of up to 1m (3.3ft) |
| Built-in recorder | ✓ |
| Memory | built-in, 8GB |
| Video format | *.mp4 |
| Image format | *.jpg |

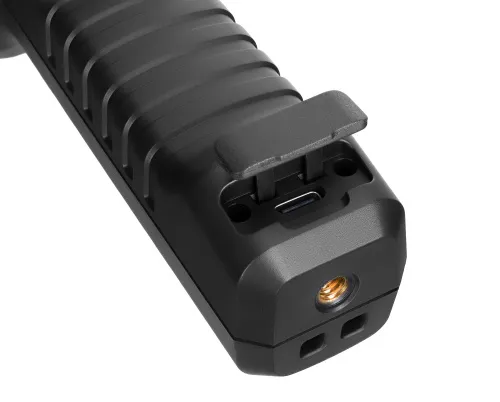

| Interface connectors | USB Type-C |
| Mounting on a tripod | ✓ |
| Mount | standard 1/4" thread |
| Additional | a low battery indicator, picture-in-picture mode, camera resolution: 1MP, adjustable emissivity from 0.1 to 0.99, response time: 12ms, auto-off |
