Ermenrich NT70 Thickness Gauge
Digital, with 1,500-measurement memory. Measuring range: 0–1350µm. Automatic substrate detection: ferrous/non-ferrous metal. Audible signal. 1.8-inch screen
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555028750 |
| Shipping Weight | 0.81 kg |
| Operating principle | eddy current, magnetic |

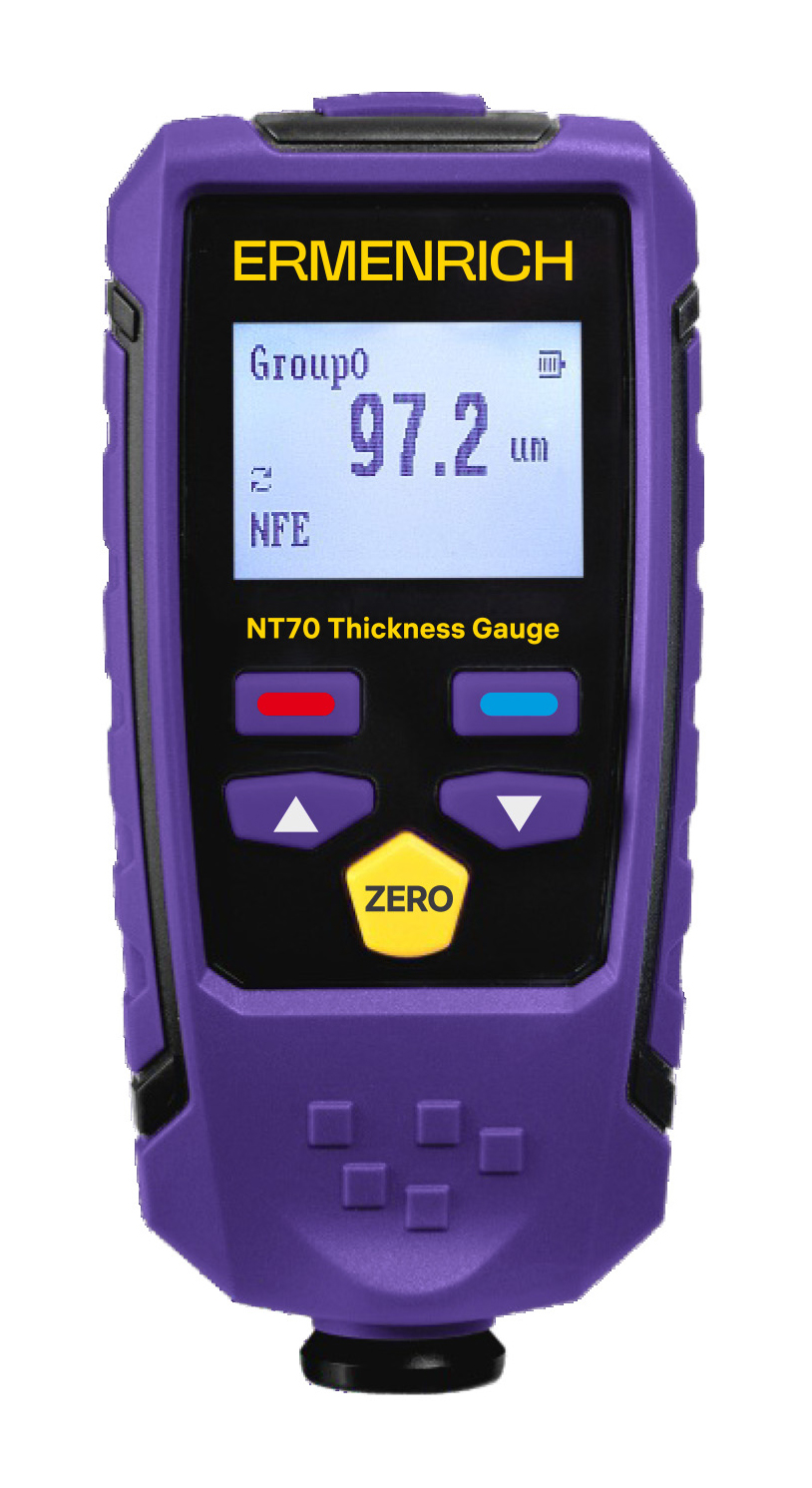

The Ermenrich NT70 Thickness Gauge is a precision instrument for the non-destructive thickness measurement of paint, varnish, body filler, or primer coatings on metal substrates. It helps you instantly spot signs of body repair, repainting, or corrosion. The model is a handy tool for vehicle inspectors, car enthusiasts, pre-purchase car inspection specialists, and auto body repair technicians.
The device works with ferrous metals (Fe, such as steel and cast iron) and non-ferrous metals (NFe, such as aluminum and copper). It automatically detects the substrate type. The measuring range is 0µm to 1,350µm, with a resolution as fine as 0.1µm. The minimum radius of curvature is 1.5mm for ferrous metals and 3mm for non-ferrous metals. Therefore, coatings can be measured on bends and complex-shaped body parts. Readings are shown on a 1.8-inch monochrome backlit screen, and an audible signal accompanies each measurement.
The built-in memory stores up to 1,500 measurement results. Data can be transferred to a computer via the included USB cable for further analysis in the Coating Thickness Tester software.
The device weighs only 110 grams and easily fits in a pocket. It is powered by two AAA batteries (1.5V), providing up to 10 hours of battery life.
Key features:
- Automatic detection of the metal substrate type (Fe/NFe)
- Measuring range from 0µm to 1,350µm with minimal measurement error
- Stores up to 1,500 results for comprehensive coating audits, and the data can be viewed on a PC
- Measures curved surfaces with a radius as small as 1.5mm
- Audible signal confirms each successful measurement
- Monochrome 1.8-inch backlit display
The kit includes:
- Thickness gauge
- Iron plate
- Aluminum plate
- Calibration plate – 5 pcs.
- USB cable
- Case
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555028750 |
| Shipping Weight | 0.81 kg |
| Operating principle | eddy current, magnetic |
| Units of measurement | mil., μm |
| Measuring range | 0–1350µm |
| Measurement resolution | 0.1µm in the range 0–100µm; 1µm in the range 100–1000µm; 10µm in the range 1000–1350µm |
| Measurement accuracy | ±(2.5% + 2µm) in the range 0–1000µm; ±3.5% in the range 1000–1350µm |
| Minimum measuring area | ferrous metals: 7mm; non-ferrous metals: 5mm |
| Minimum radius of curvature | ferrous metals: 1.5mm; non-ferrous metals: 3mm |
| Minimum thickness | ferrous metals: 0.5mm; non-ferrous metals: 0.3mm |
| Screen type | monochrome |
| Screen features | 1.8" diagonal, backlit |
| Memory | 1500 measurements |
| Ability to connect to PC | via USB cable and Coating Thickness Tester software (Windows 7/8.1/10) |
| Low battery status indicator | ✓ |
| Auto power off | 3 min |
| Power supply | 2 AAA batteries, 1.5V (not included) |
| Operating temperature range, °C | 0...+40 |
| Operating humidity range, % | 20 — 90 |
| Case material | durable ABS plastic, polycarbonate |
