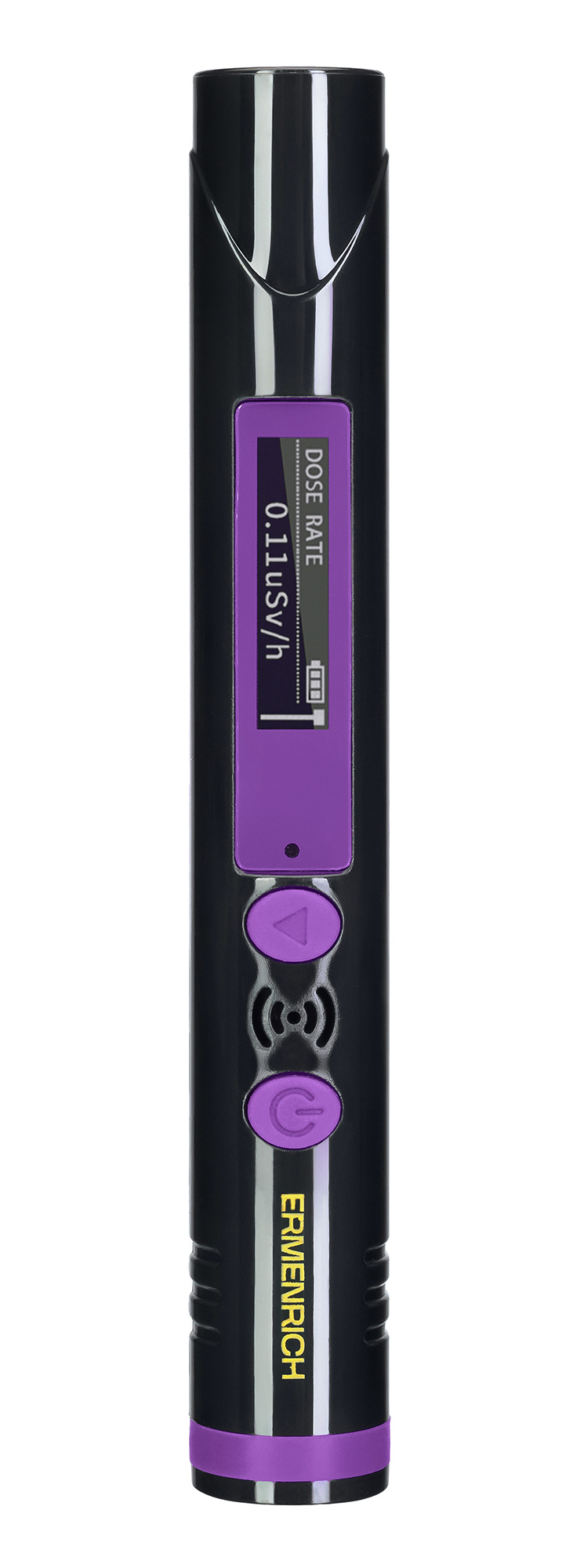

Ermenrich Ping RD20 Radiation Detector
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555023557 |
| Package size (LxWxH) | 14x6x3 cm |
| Shipping Weight | 0.12 kg |
Description
The Ermenrich Ping RD20 Radiation Detector is a compact and convenient device for determining background radiation in the environment, water, food, etc. It measures gamma, beta, and X-ray radiation in the range from 0.05µSv to 50mSv.
With its miniature size and low weight, the device has the full functionality of a dosimeter with a Geiger-Muller counter and can operate for up to 50 hours on a single charge. A 150mAh lithium battery is used for power supply. The LCD screen displays the readings and battery level.
Key features:
- Measurement of gamma, beta, X-ray radiation
- Geiger-Muller counter
- Compact body, LCD display
- Up to 50 hours of uninterrupted work
- Sound and light alerts
The kit includes:
- Radiation detector
- USB Type-C cable
- User manual and warranty card
Specifications
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555023557 |
| Package size (LxWxH) | 14x6x3 cm |
| Shipping Weight | 0.12 kg |
| Radiation measurement (gamma, beta, X-ray) | +, for gamma radiation only reference values, not exact |
| Sensor | Geiger-Muller counter |
| Length, mm | 48 |
| Measuring range | 0.05µSv to 50mSv |
| Cumulative dose measurement range | 0.1µSv to 100mSv |
| Exposure dose rate (EDR) measurement range | 0.08µSv/h to 50mSv/h |
| Measurement error based on data from a cesium isotope study used as a source of gamma radiation | –17%... +25% |
| Measuring time, sec | <10 s |
| Audible alerts | ✓ |
| Light alert | ✓ |
| Display | OLED |
| Number of lines displayed on the screen | 1 |
| Waterproof | IP3X, particle protection >2.5mm |
| Battery life, h | 2 — 3 |
| Operating time, h | 50 |
| Low battery status indicator | ✓ |
| Power supply | 150mAh lithium rechargeable battery (charging via USB Type-C cable with a 5V/2A AC adapter) |
| Operating temperature range, °C | -20...+50 |
| Operating humidity range, % | 0 — 95 |
