Ermenrich Reel TWR30 Extension Rod, 3.36m

Aluminum. 5 sections. 5/8'' and 1/4'' mounts

Ermenrich Reel TWR30 Extension Rod, 3.36m
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555024301
Package size (LxWxH) 14x76x15 cm
Shipping Weight 2.15 kg
All specifications
Description

The Ermenrich Reel TWR30 Extension Rod is a valuable accessory for frequent users of laser levels. This long, five-section spacer is installed vertically, with the bottom resting on the floor and the top secured to the ceiling. The rod has a platform for installing a laser level that can be smoothly moved across the entire height of the room.

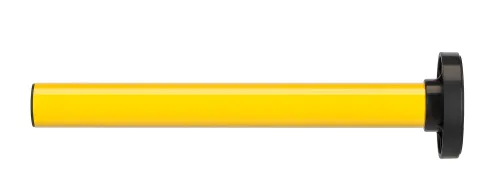

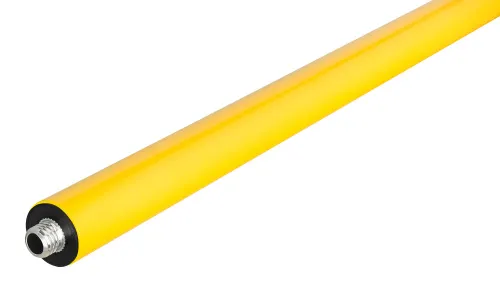

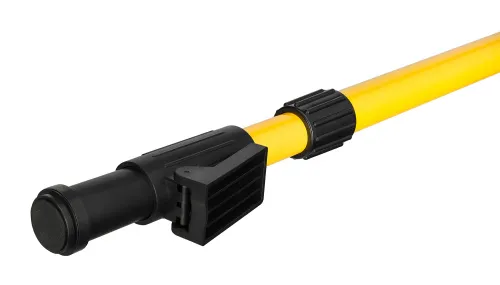

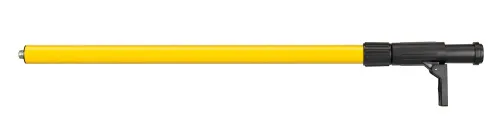

The lower section of the Ermenrich Reel TWR30 is telescopic, with a rotary position lock that changes the height of the assembly. This section also features a spring-loaded bottom and a fold-out footrest to make bar installation easy. The upper section is equipped with a stop that does not damage the paint or chalk coating of the ceiling. All of the sections are screwed into each other in sequence. The maximum height of the bar is 336cm, and the minimum height is 70cm.

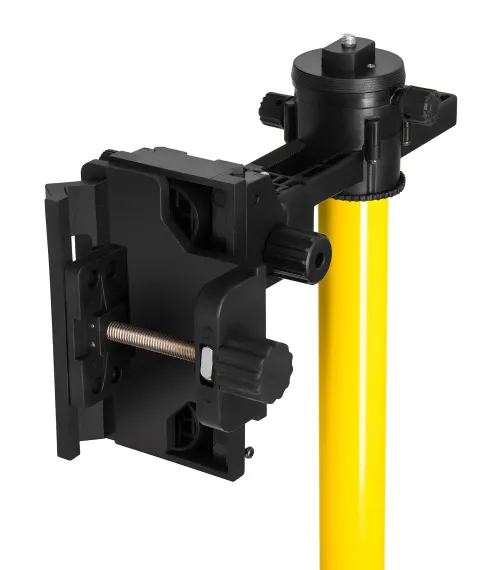

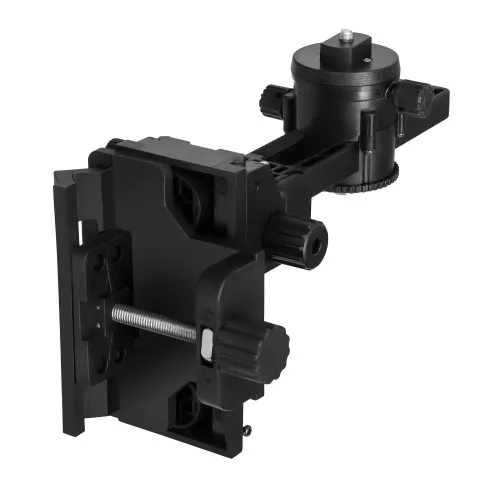

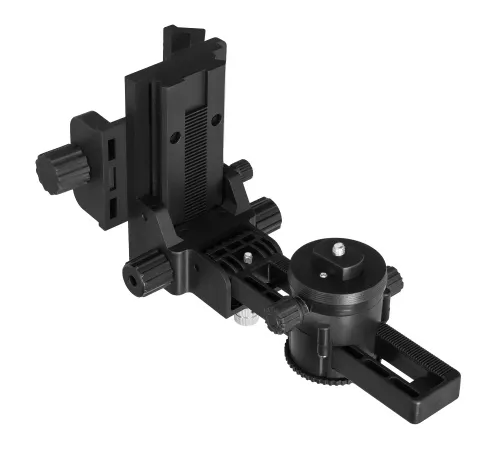

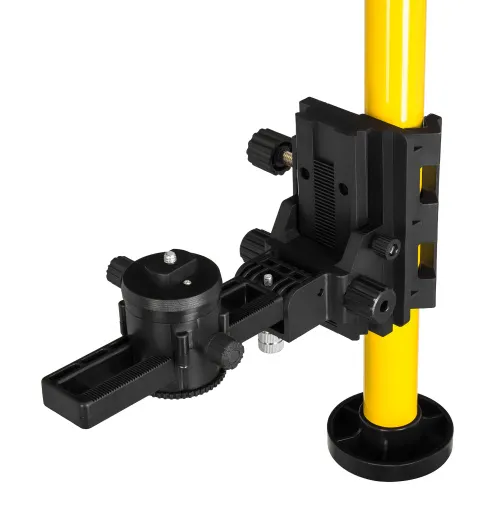

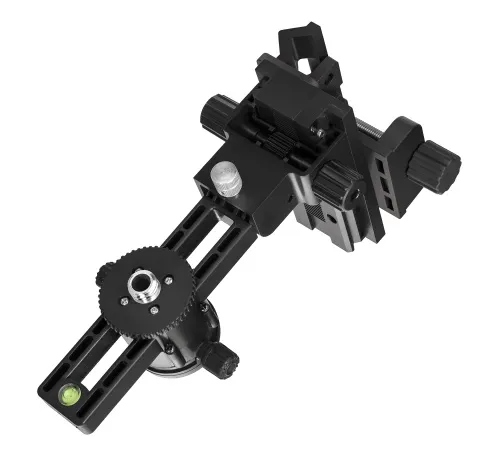

The platform allows devices with 5/8'' and 1/4'' mounts; the thread is selected by installing the appropriate attachment. The platform moves along the rod, controlled by a handle, and it is securely fixed in the selected position.

All the elements of the rod are packed in a bag with two zipped compartments and a long strap for easy carrying.

Key features:

  • Aluminum and consists of 5 sections
  • Height adjustment from 70 to 336cm
  • Allows the installation of laser levels with 5/8'' and 1/4'' threads
  • Does not damage ceiling and floor coating and has a spring-loaded base for easier installation
  • Comes in a bag

The kit includes:

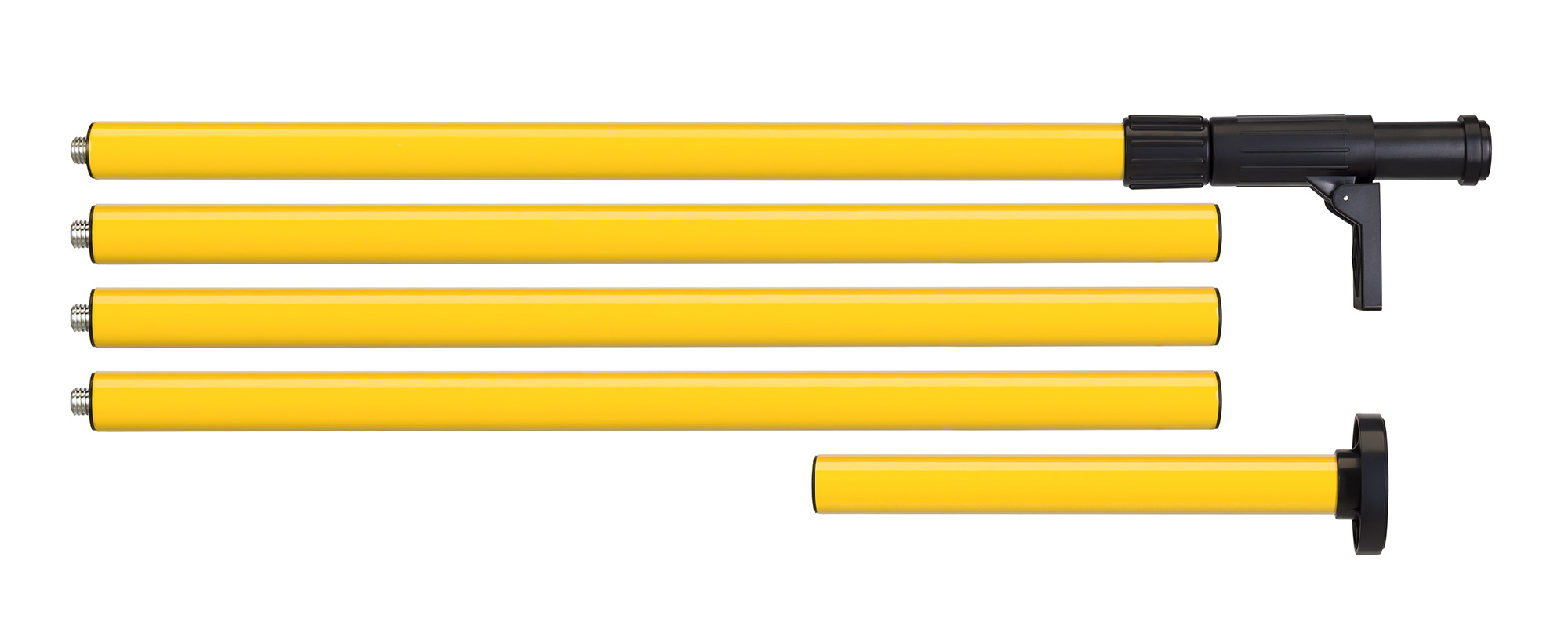

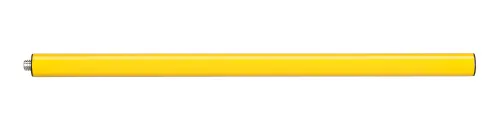

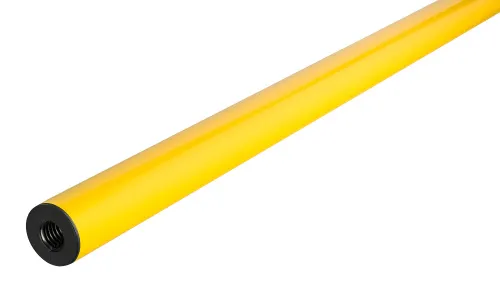

  • Rod section – 5 pcs.
  • Platform for installing a laser level
  • 5/8'' mount attachment (installed on the platform)
  • 1/4'' mount attachment
  • Carry bag
  • User manual and warranty card
Specifications
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555024301
Package size (LxWxH) 14x76x15 cm
Shipping Weight 2.15 kg
Type telescopic, for a laser level
Section (pitch number) 5
Height, m 0.7 — 3.36
Telescopic section, cm 50
Outside diameter, mm 32
Scale graduation cm
Scale value 1cm
Thread 1/4", 5/8
IP water and dustproof rating IP54, partially dustproof, splashproof
Operating temperature range, °C -10...+50
