Ermenrich NetGeeks NP25 PoE Tester
Functions: cable testing, PoE test with the identification of a PSE type, midspan/endspan identification
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555016856 |
| Package size (LxWxH) | 19x11x4 cm |
| Shipping Weight | 0.295 kg |
Ermenrich NetGeeks NP25 is a PoE cable tester for PoE-powered networks. It is used for setting up IP telephony, deploying IP surveillance systems, connecting wireless access points, etc. The Ermenrich NetGeeks NP25 supports all types of PoE devices. It can check the serviceability of cables, identify the PSE type, identify the midspan/endspan, and measure power and voltage.

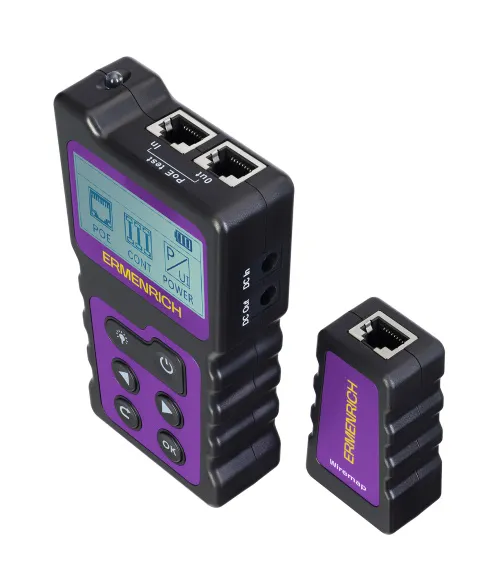

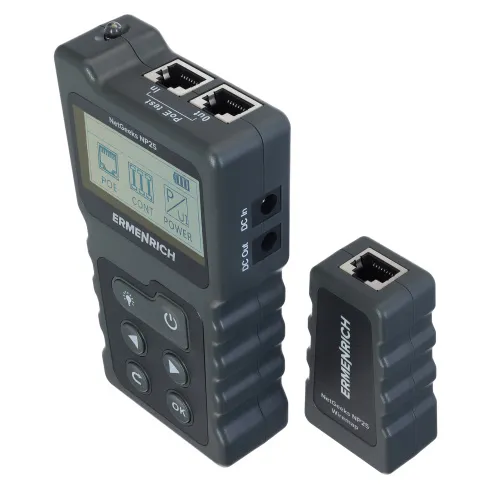

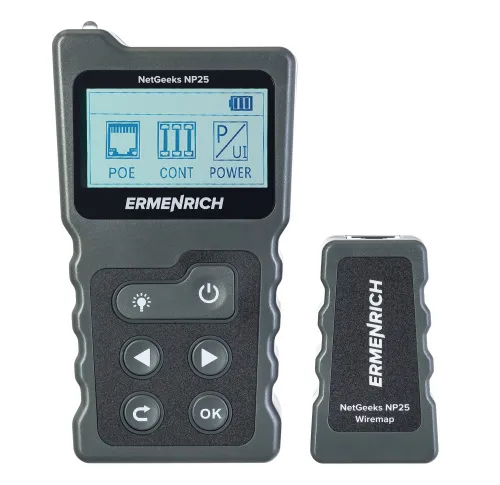

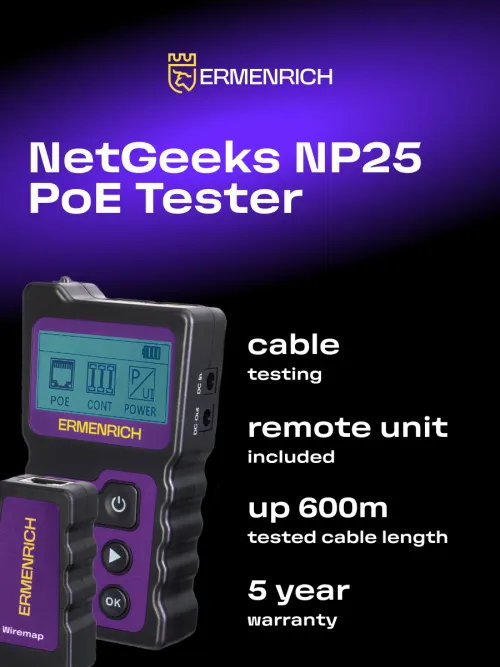

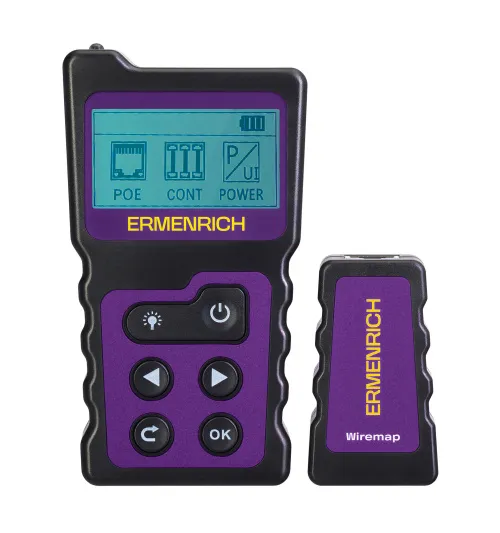

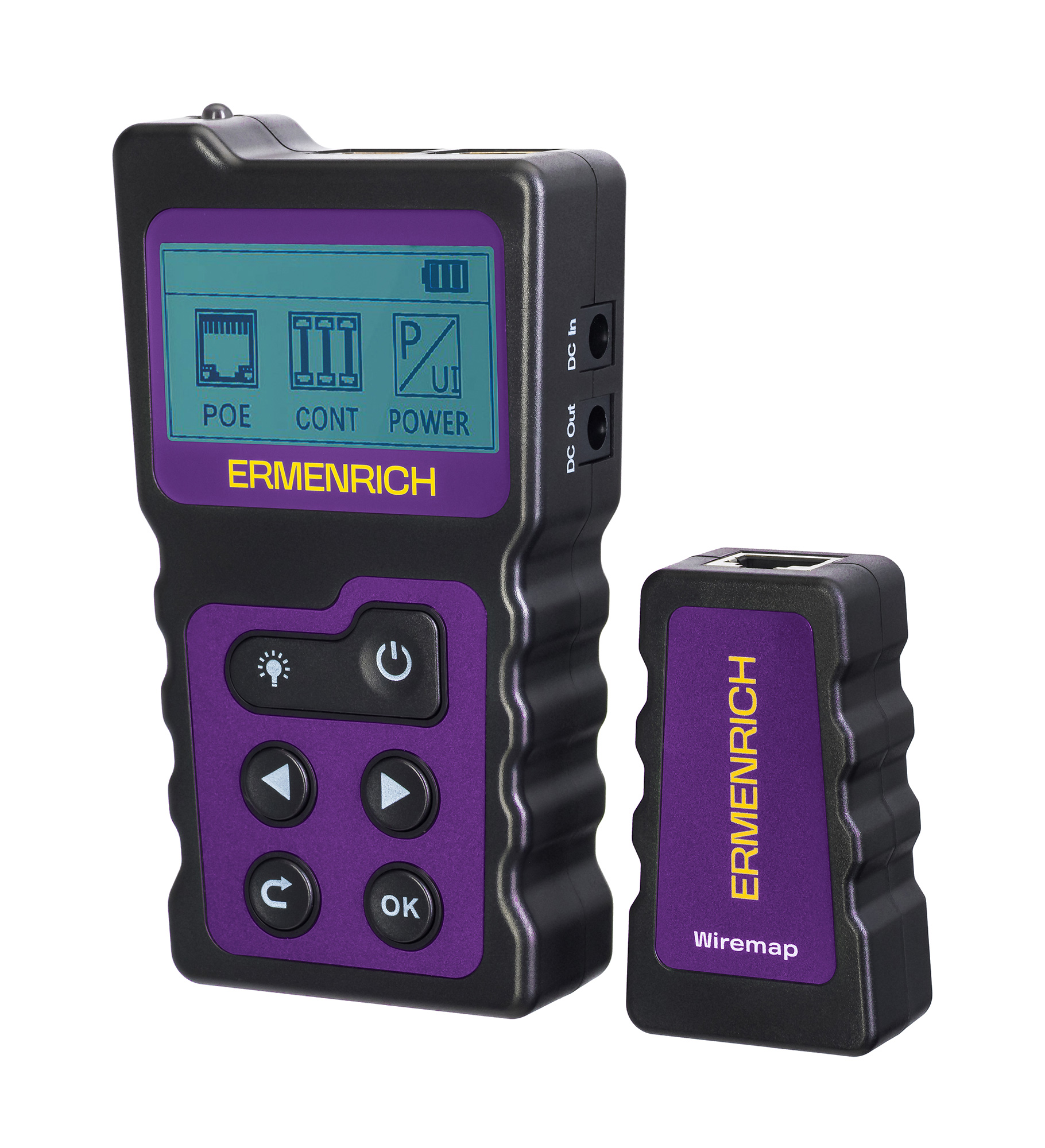

The device includes a transmitter and a remote unit. The transmitter requires three standard batteries (not included). Compact and lightweight, the Ermenrich NetGeeks NP25 is easily operated with just a few buttons. The results are displayed on the built-in backlit LCD display. Suitable for testing STP/UTP cables (CAT5, CAT6), telephone cables. The length of a tested cable should not be longer than 600 meters (1970ft).
Key features:

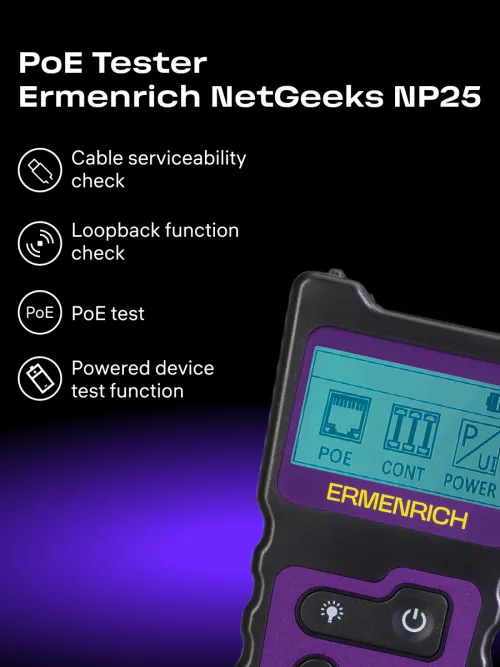

- Identification of the PSE type (standard or non-standard), midspan/endspan identification
- Power and DC voltage testing, powered device test function
- Testing cables for open circuits, short circuits, crossed pairs
- Testing cable types: STP/UTP (CAT5, CAT6), telephone cables

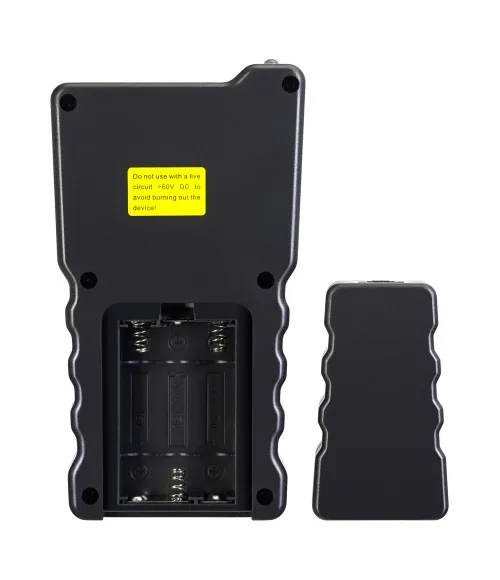

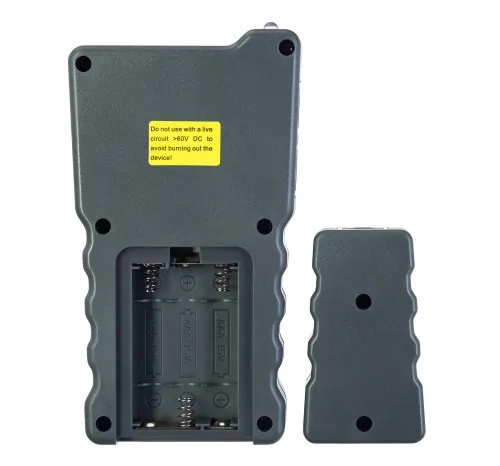

- Power supply (transmitter only): 3pcs AAA alkaline batteries

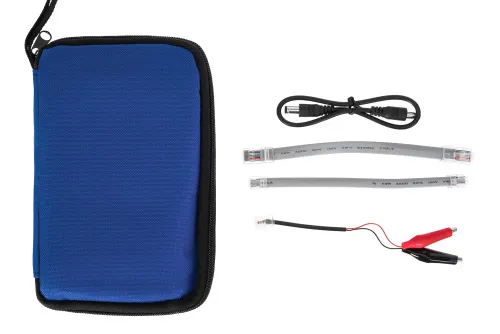

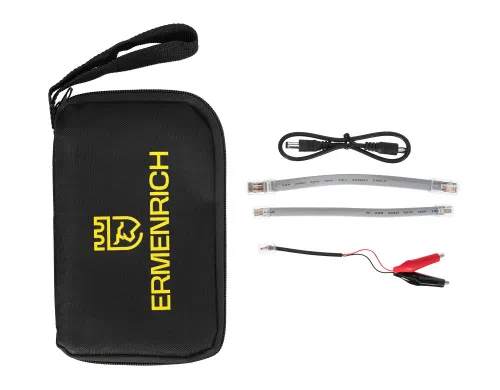

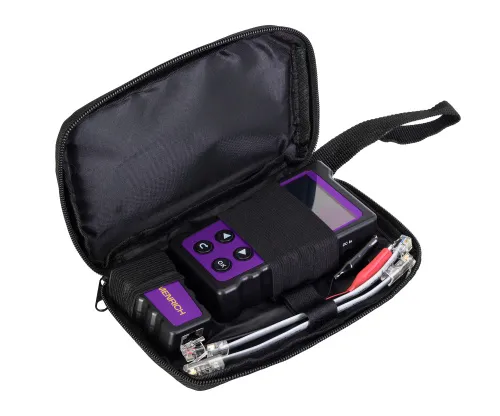

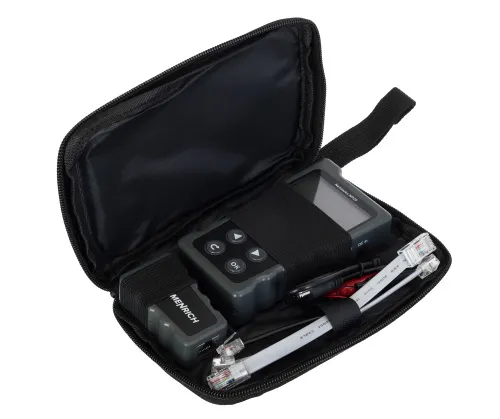

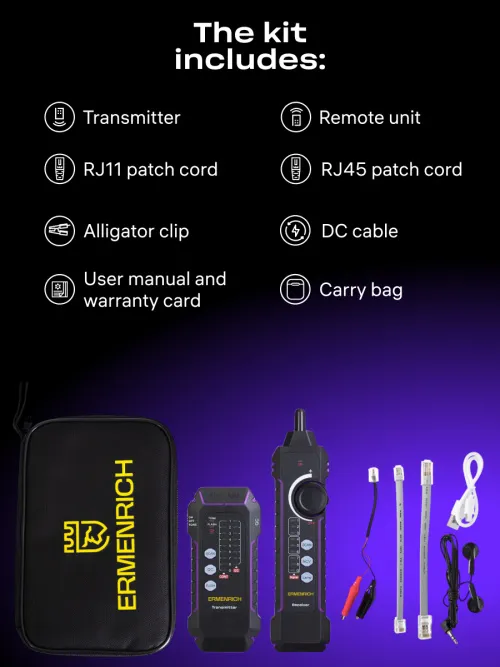

The kit includes:
- Transmitter
- Remote unit
- RJ11 patch cord
- RJ45 patch cord
- Alligator clip
- DC cable
- Carry bag
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555016856 |
| Package size (LxWxH) | 19x11x4 cm |
| Shipping Weight | 0.295 kg |

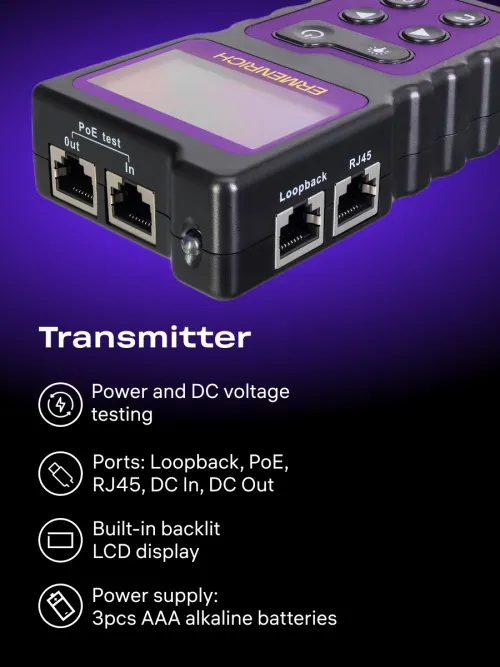

| Transmitter | |

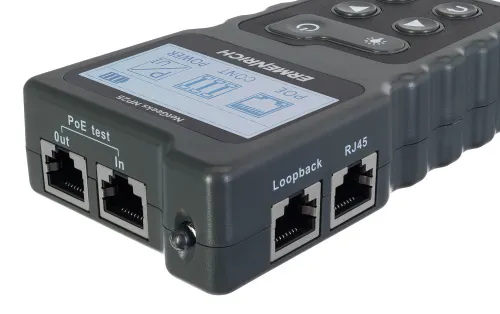

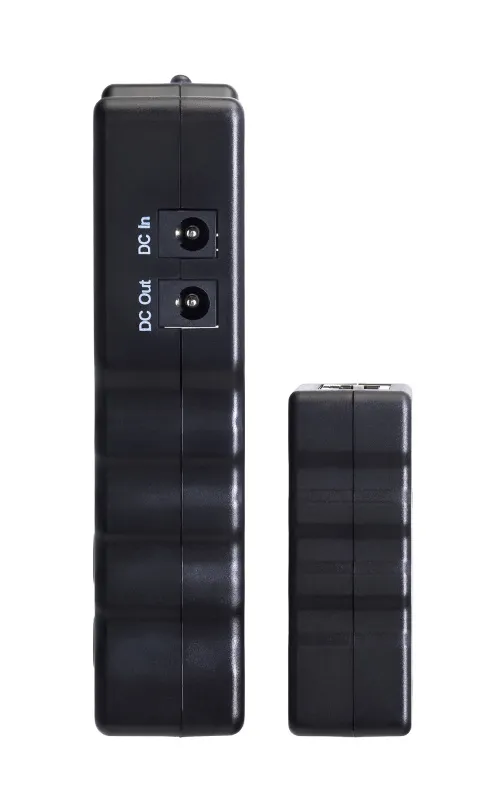

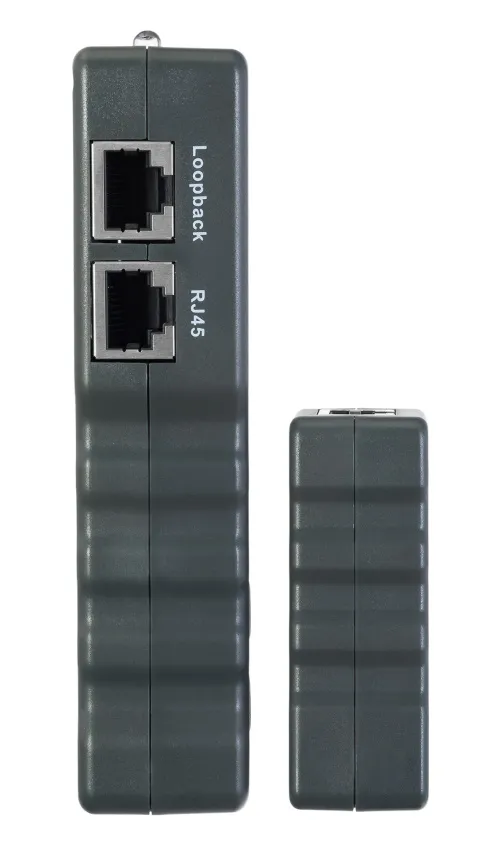

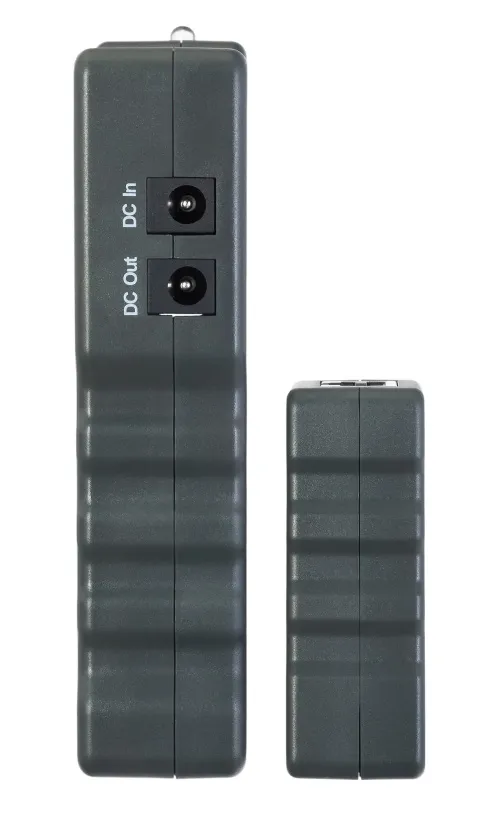

| Ports | RJ45, PoE, Loopback, DC (input), DC (output) |
| Testing cable types | telephone, STP/UTP (CAT5, CAT6) network cable |
| Maximum length of the tested cable, m | 600 |
| Cable testing | + (open circuits, short circuits, crossed pairs) |
| Loop-back test function | +, compatible with 10/100Mbps switches |
| PoE test | ✓ |
| Powered device (PD) test | ✓ |
| Voltage polarity detection | ✓ |
| PoE test | |
| Power source equipment (PSE) type test | standard (IEEE 802.3at/af)/non-standard |
| Midspan/endspan identification | ✓ |
| Operating voltage range (DC), V | 5 — 60 |
| Power measurement range, W | 0 — 18 |
| Powered device (PD) test | |
| Operating voltage range (DC), V | 5 — 60 |
| Current measuring range, A | 0 — 3 |
| Power measurement range, W | 0 — 180 |
| Key features | |
| Maximum operating current, mA | ≤80 |
| Protection | input voltage: 48V, current: 5mA |
| Display | LCD |
| Display resolution, px | 128х64 |
| Display backlight | ✓ |
| Power supply | AAA alkaline batteries – 3 pcs. (not included) |
| Auto power off | 15 min, 60 min, 30 min |
| Operating temperature range,°C | −10… +60 (14… 140) |
| Operating humidity range, % | 20…70 |

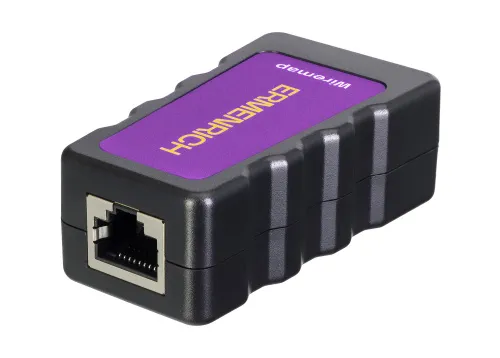

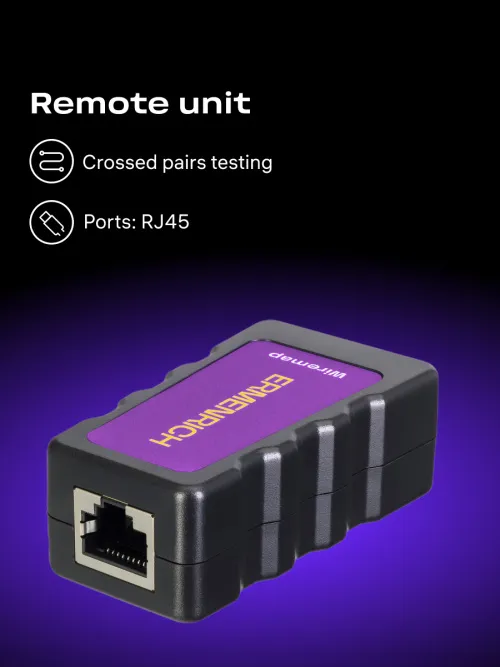

| Receiver / Remote unit | |
| Ports | RJ45 |
