Ermenrich NetGeeks NP30 Network Cable Tester
Functions: cable length measurement by measuring the capacitance of a cable, cable testing, Port Flash function, cable tracing
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555016832 |
| Package size (LxWxH) | 23x13x8 cm |
| Shipping Weight | 0.57 kg |
The Ermenrich NetGeeks NP30 cable tester is designed for checking network cables, locating open circuits, and measuring the length of a cable. The device will come in handy for anyone who installs, troubleshoots, and maintains computer networks and telephone lines, but it can also be used for household needs.
The Ermenrich NetGeeks NP30 can be used for testing network, telephone, coaxial, and other types of cables. It can be used to check for open circuits and short circuits as well as reversed and crossed pairs. There is a Port Flash function that enables you to find the exact port on the network switch or router to which the target cable is connected. The length measurement is available for LAN cables, ranging from 5 to 350 meters (from 16 to 1150ft) and with an accuracy of 5%. There is also an option to calibrate the device to improve the accuracy of measurements. The cable tester can also measure the distance to open circuits.

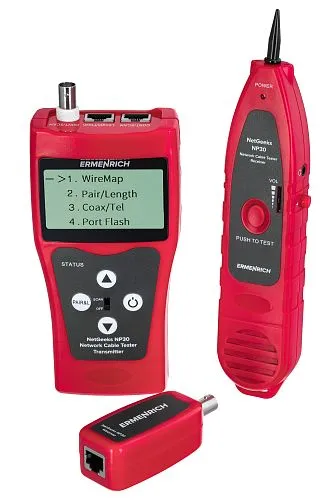

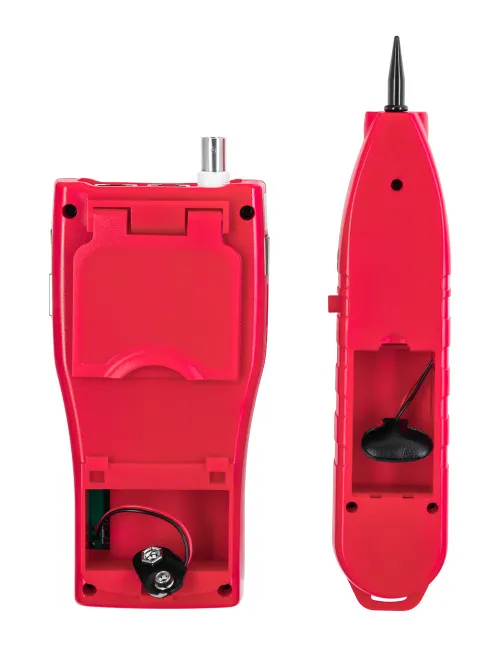

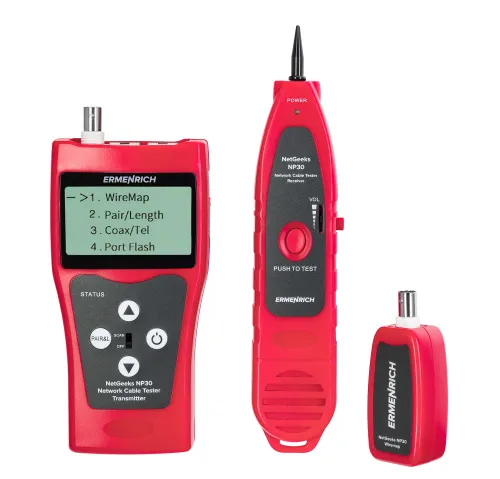

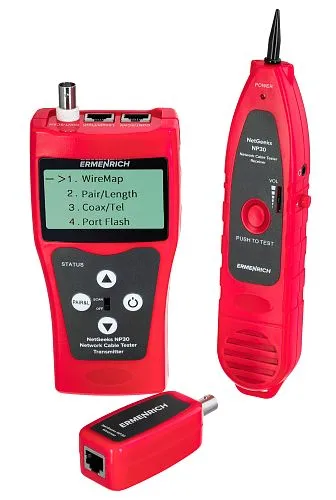

The set includes a transmitter, receiver, remote unit, and additional accessories. The transmitter and receiver require a 9V battery each.
Key features:
- Cable length measurement by measuring the capacitance of a cable
- Can be calibrated to improve measurement accuracy
- Cable diagnostics: open circuits, crossed pairs, short circuits
- Locating an open circuit, measuring the distance to it
- Port Flash function for detecting the exact port on the network switch or router to which the target cable is connected

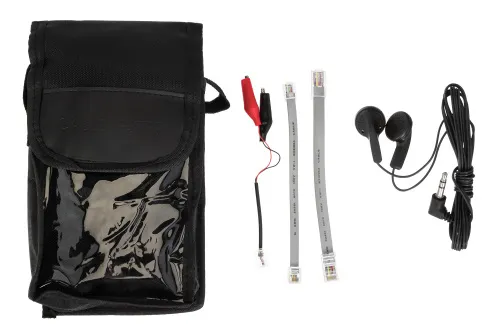

The kit includes:
- Transmitter
- Receiver

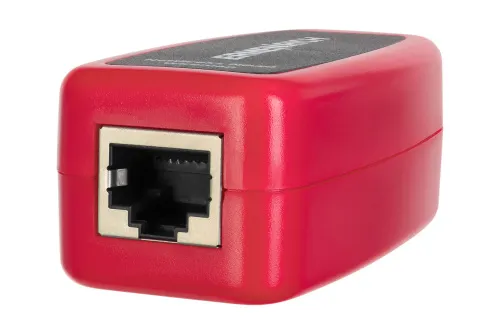

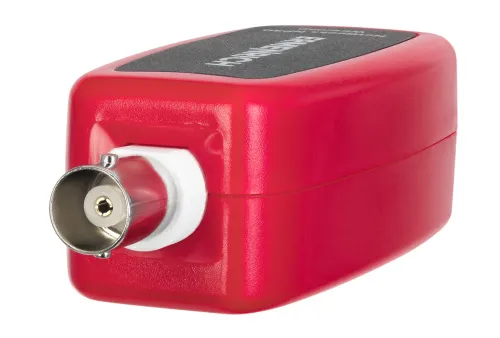

- Remote unit
- RJ11 patch cord
- RJ45 patch cord
- Alligator clip
- DC cable
- Earbuds

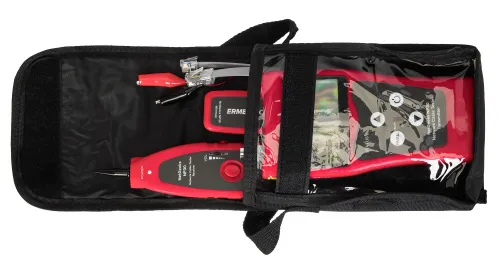

- Carry bag
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555016832 |
| Package size (LxWxH) | 23x13x8 cm |
| Shipping Weight | 0.57 kg |
| Transmitter | |

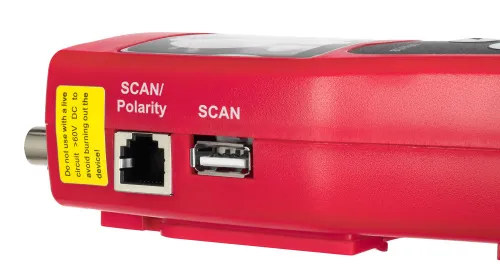

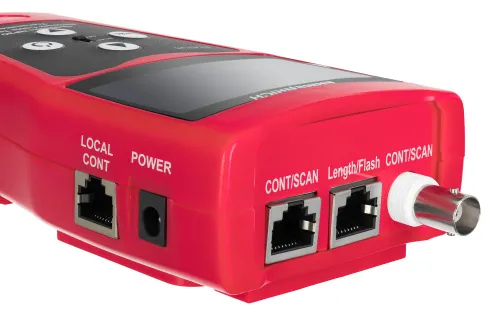

| Ports | RJ45 (main), RJ45 (Scan), BNC, RJ11 (scan), Flash, USB (scan), power supply |
| Tracing cable types | telephone, coaxial, common wires, STP/UTP (CAT5E, CAT6, CAT6A, CAT7) network cable |
| Testing cable types | coaxial, common wires, STP/UTP (CAT5E, CAT6, CAT6A) network cable |
| Cable length measurement | ✓ |
| Cable testing | + (open circuits, short circuits, crossed pairs, reversed pairs, split pairs, crosstalk) |
| Port flash function | ✓ |
| Port flash function | + |
| Cable tracing | ✓ |
| Voltage polarity detection | ✓ |
| Cable length measurement | |
| Measuring method | by measuring the capacitance of a cable |
| Units of measurement | m, ft |
| Measuring range, m | 5 — 350 |
| Error | 5 (±0.5m/1.6ft) |
| Measuring the distance to open circuits | ✓ |
| Calibration | + |
| Minimum cable length for calibration, m (ft) | 10 (32.8) |
| Key features | |
| Maximum operating current, mA | <150 |
| Protection | input voltage: 48V, current: 5mA |
| Display | LCD |
| Display resolution, px | 128x128 |
| Display backlight | ✓ |
| Power supply | 9V battery (not included) |
| Low battery status indicator | ✓ |
| Auto power off | 15 min, 60 min, 120 min, 30 min |
| Operating temperature range,°C | −10… +60 (14… 140) |
| Operating humidity range, % | 20…70 |

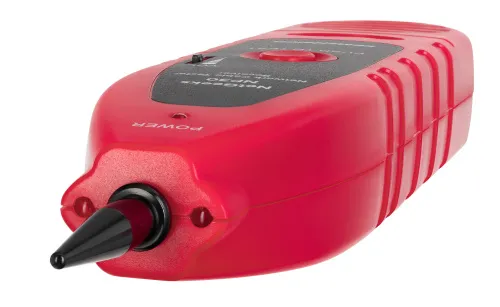

| Receiver / Remote unit | |

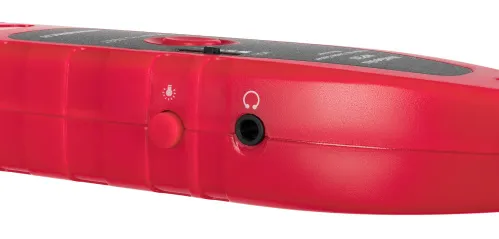

| Ports | BNC, RJ45, earbuds |
| Adjustable sensitivity | ✓ |
| Flash light | ✓ |
| Maximum operating current, mA | <100 |
| Power supply | 9V battery (not included) |
| Operating temperature range,°C | −10… +60 (14… 140) |
| Operating humidity range, % | 20…70 |
