Ermenrich Ping SM100 Wire Tracker

Tracing de-energized cables and live wiring in the ground or in walls

Product ID
Brand	Ermenrich
Warranty	5 years
EAN	5905555023090
Package size (LxWxH)	26x14x6 cm
Shipping Weight	0.555 kg

All specifications

Description

The Ermenrich Ping SM100 is designed for tracing cables in walls and ceilings as well as cables buried underground. The maximum detection depth is 2 meters (6.6ft). The device can find de-energized and energized cables, i.e. it can be used to trace cables hidden under plaster, map cable lines, find drilling locations, etc. The cable tracing is performed with crosstalk protection.

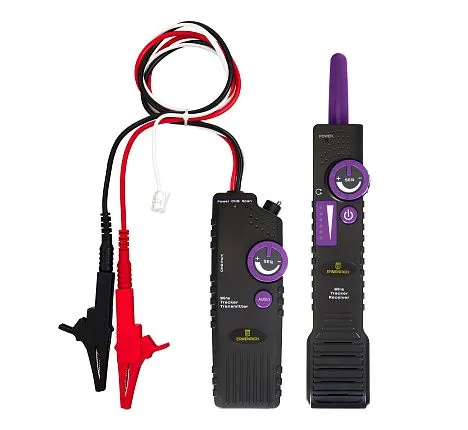

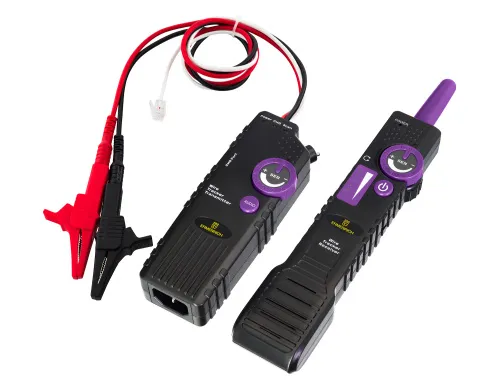

The device includes a transmitter and a receiver, the sensitivity of each unit can be adjusted individually. Both devices are powered by rechargeable batteries, and a charging cable is included. The Ermenrich Ping SM100 comes with earbuds, which will come in handy when working in noisy environments.

Key features:

For tracing different types of energized and de-energized cables
Maximum detection depth – 2 meters (6.6ft) (walls, ceilings, ground, etc.)
Crosstalk protection, transmitter, and receiver sensitivity adjustment
Powered by a rechargeable battery

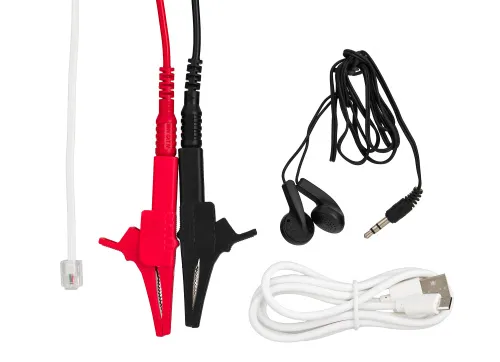

The kit includes:

Transmitter
Receiver
Micro USB cable
Earbuds

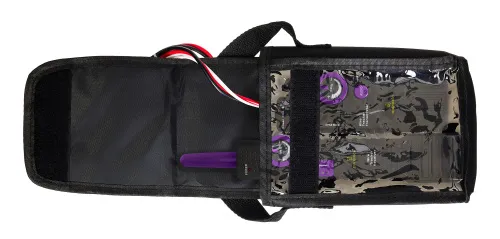

Carry bag
User manual and warranty card

Specifications

Product ID
Brand	Ermenrich
Warranty	5 years
EAN	5905555023090
Package size (LxWxH)	26x14x6 cm
Shipping Weight	0.555 kg

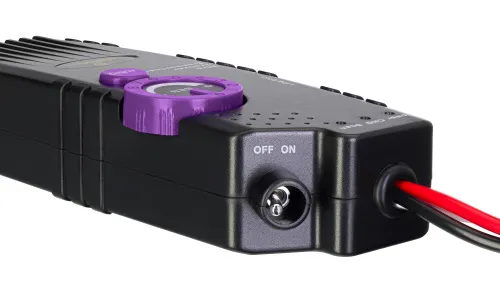

Transmitter

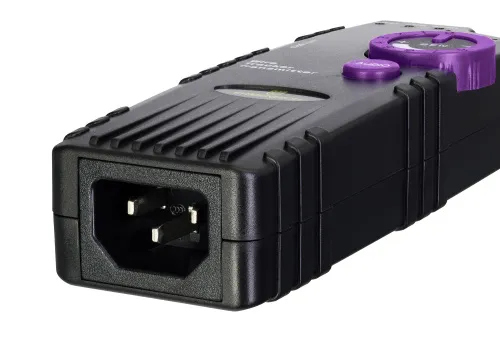

Ports	microUSB, RJ11, power supply, alligator clips
Tracing cable types	telephone, coaxial, common wires, power cable, network cable
Maximum detection depth, m (ft)	2 (6.6)
Maximum possible voltage of the circuit under test, V	400
Polarity test	✓
Crosstalk protection	✓
Maximum signal transmission distance, m (ft)	10000
Peak output signal voltage, V	21
Signal transmission format	multifrequency impulse
Adjustable sensitivity	✓
Maximum operating current, mA	<150

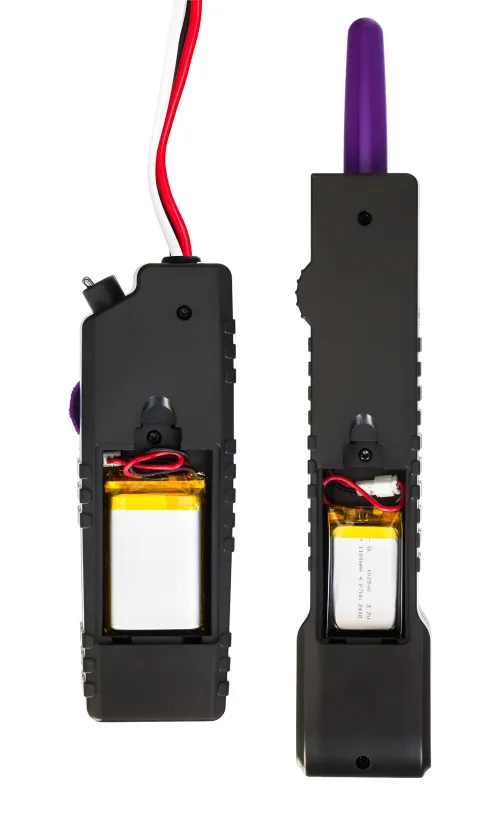

Power supply	1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included)
Low battery status indicator	✓
Operating temperature range, °C	-10...+40
Operating humidity range, %	30 — 60

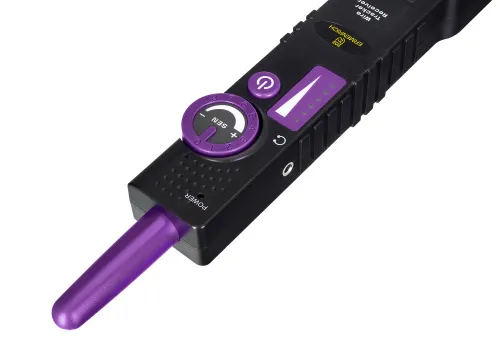

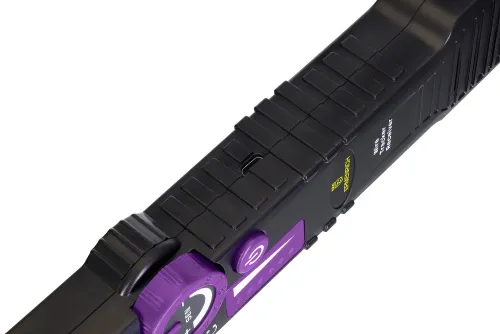

Receiver / Remote unit
Ports	microUSB, earbuds
Maximum operating current, mA	<80
Adjustable sensitivity	✓
Speaker	✓
Power supply	1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included)
Low battery status indicator	✓
Operating temperature range, °C	-10...+40
Operating humidity range, %	30 — 60
