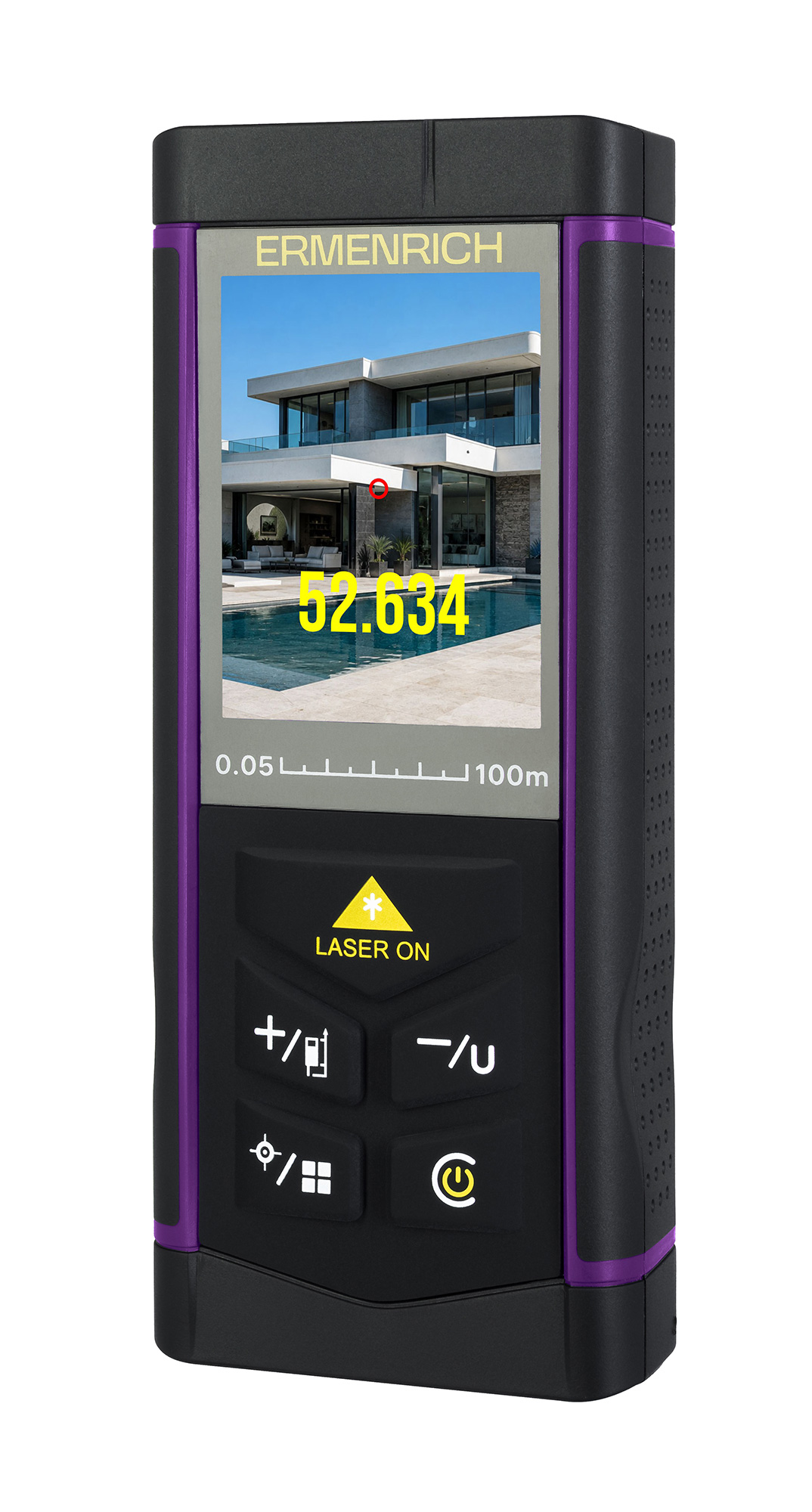

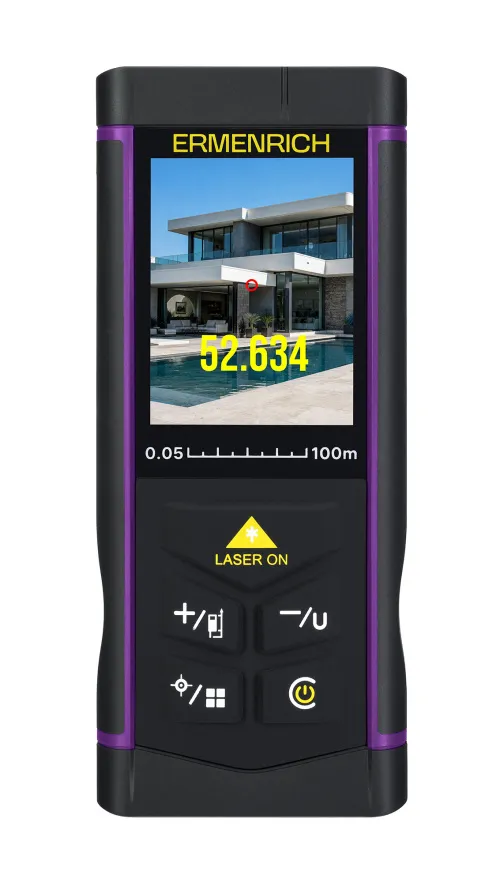

Ermenrich LR100 Laser Meter, with camera
Length, angles, area, and volume meter with a digital viewfinder. Maximum measurement range: 100m. Tripod included
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555024264 |
| Package size (LxWxH) | 19x11x10 cm |
| Shipping Weight | 0.54 kg |

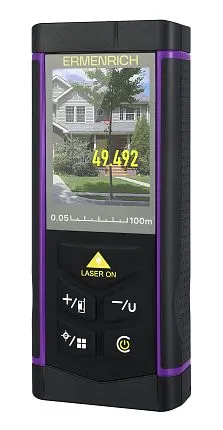

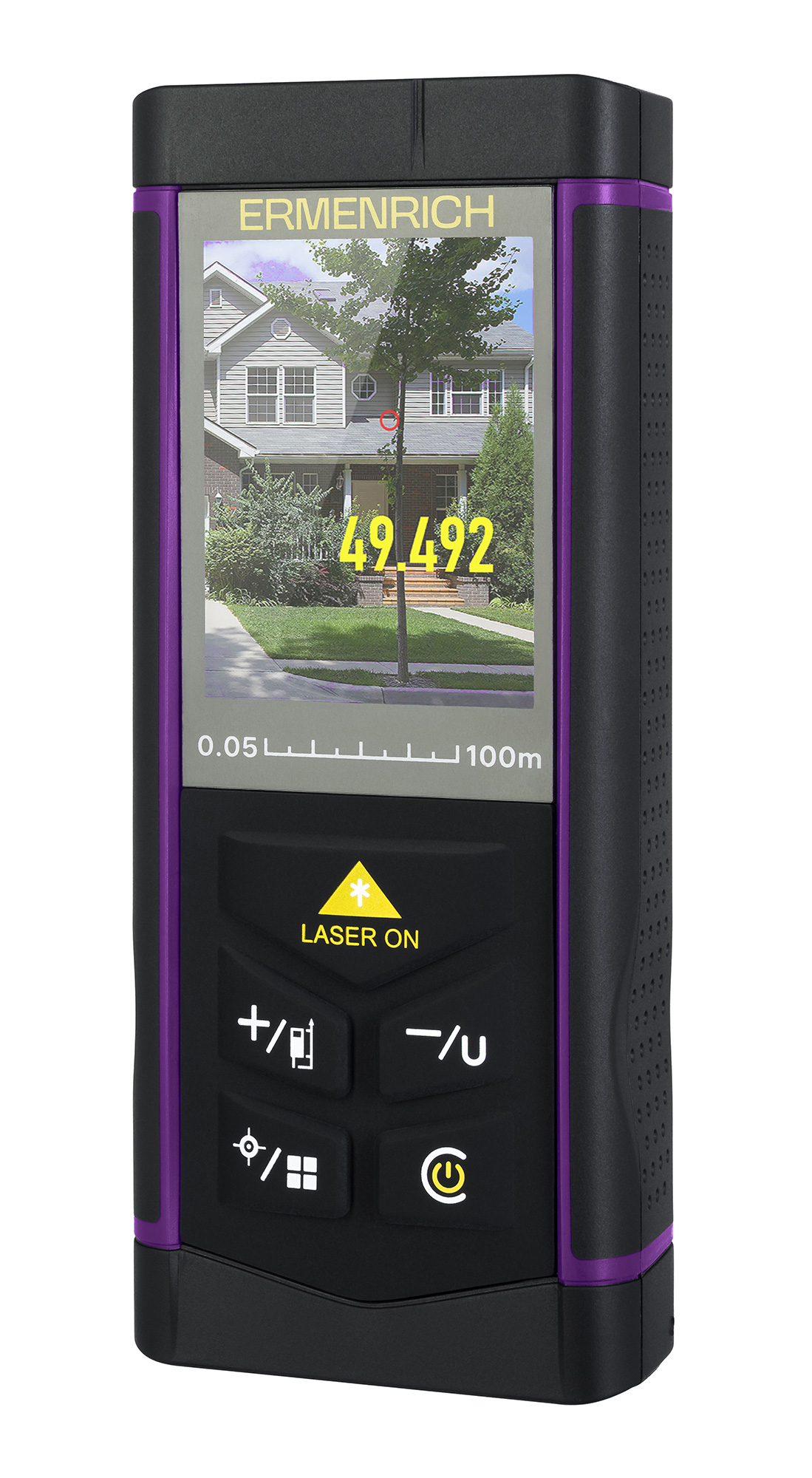

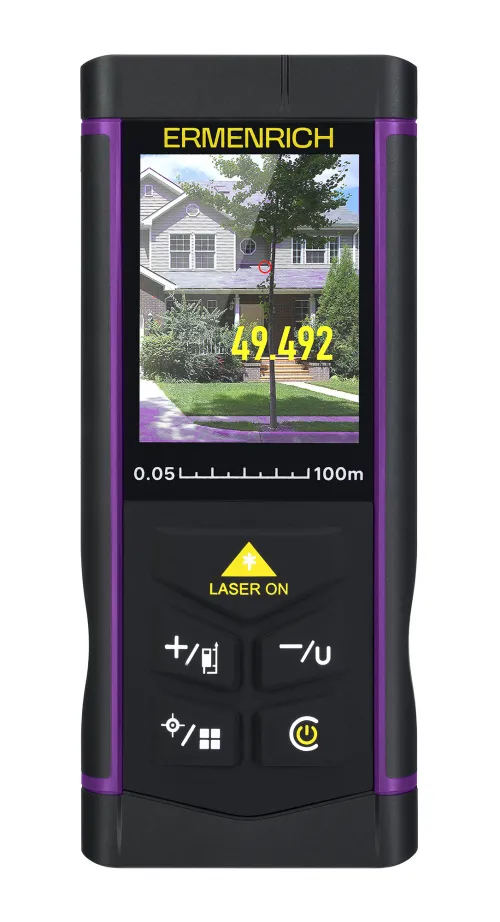

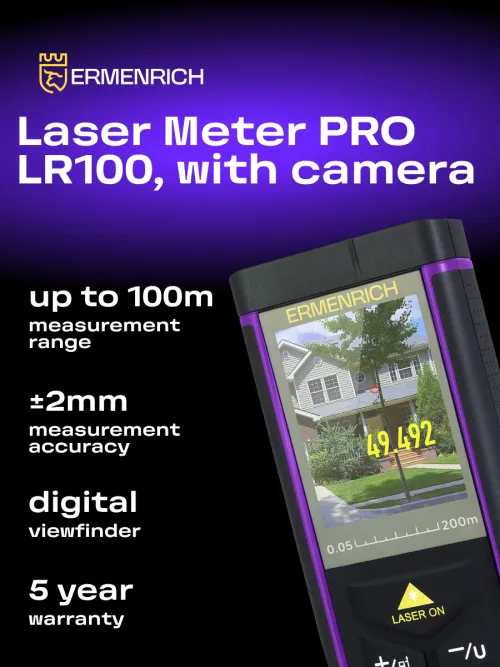

The Ermenrich LR100 Laser Meter has a range of 100 meters and is ideal for outdoor use. The model is equipped with a digital viewfinder. The built-in screen simultaneously shows the surrounding landscape, target point, and measurement result. This visualization ensures measurement accuracy. A meter with a camera is perfect for basic measuring tasks in home repairs and large-scale construction works alike.

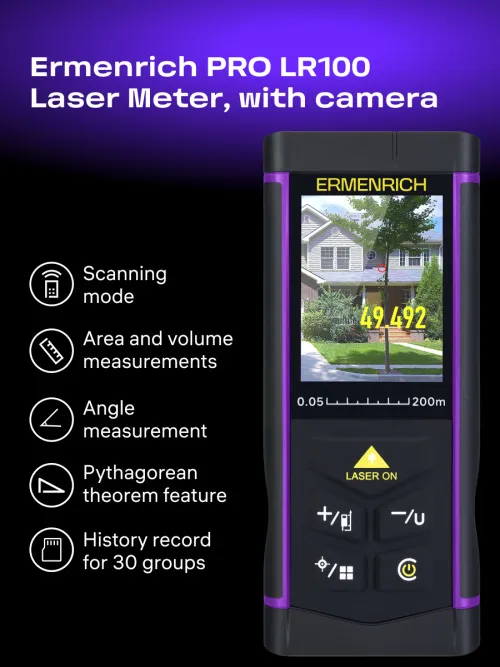

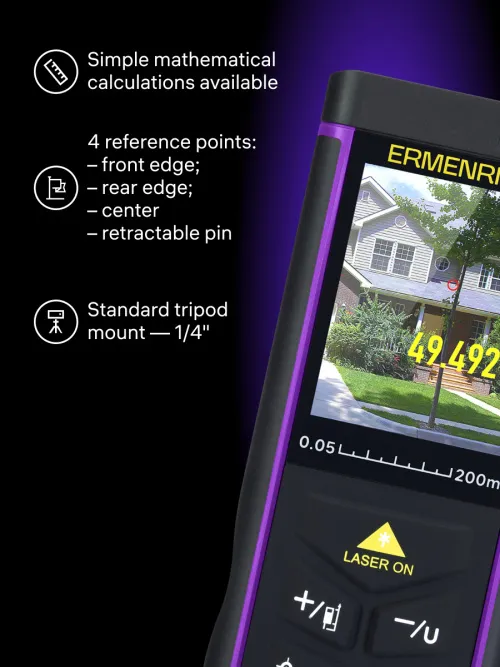

The device uses simple button controls, eliminating the risk of accidental presses. You can select convenient units of measurement as well as the operating mode. The device measures not only distances, but also angles, volumes, and areas. Basic mathematical calculations and Pythagorean theorem function are available. You can also select a reference point: front edge, rear edge, center, or retractable pin. Single measurements and scanning mode are available. The device stores up to 30 measurement groups in its built-in memory.
The meter is dust-resistant but is not intended for use in humid environments. The device has a standard 1/4'' thread mount, allowing you to install the meter on a tripod. A compact tabletop tripod is already included. Stationary use of the device increases measurement accuracy, as it provides a more stable placement than holding it in your hand.

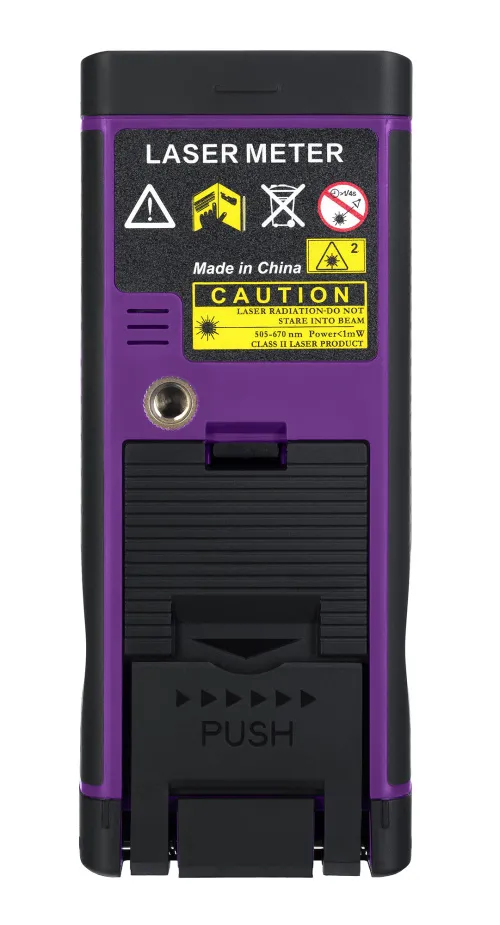

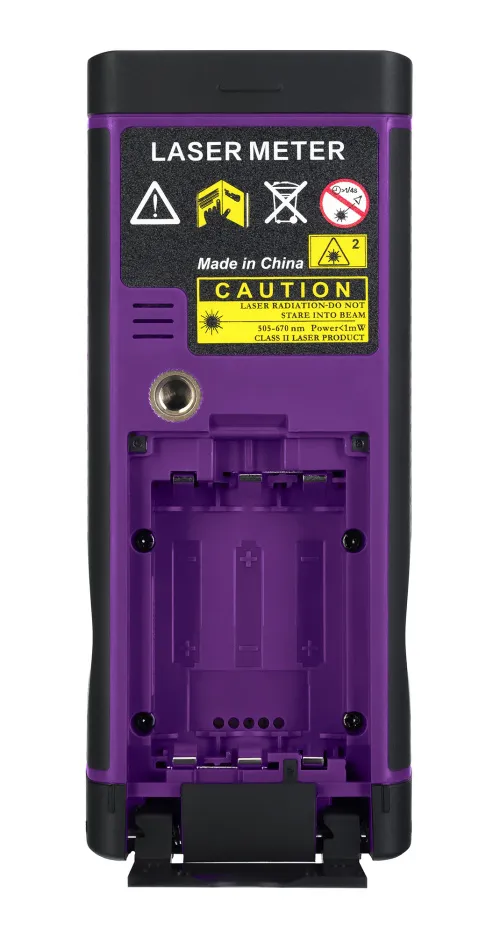

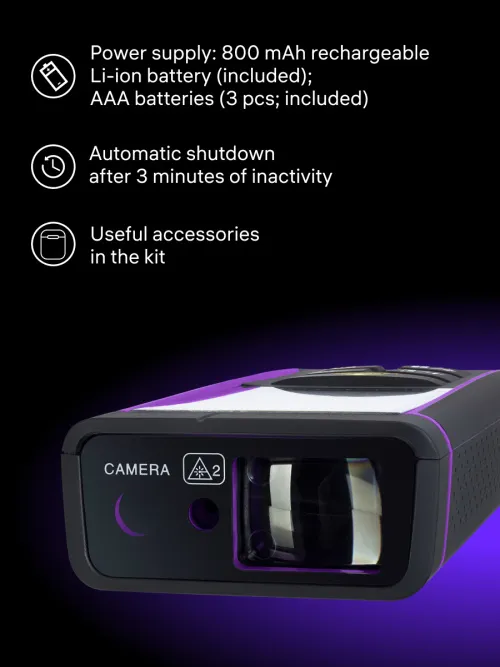

Powered by a rechargeable battery, but you can also use AAA batteries. The auto-off function helps to save power. The laser beam turns off after 30 seconds of inactivity, and the device itself turns off after 3 minutes.
Key features:
- Taking measurements within 100 meters
- Measured parameters: distance, angle, area, volume
- Mathematical calculations function, including Pythagorean theorem calculation
- Two operating modes: single measurement and scanning; four reference points to choose from

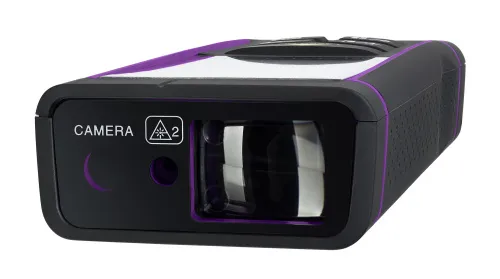

- Digital viewfinder (camera) for precise target point identification
- Power supply choice: rechargeable or standard batteries
- Tabletop tripod included

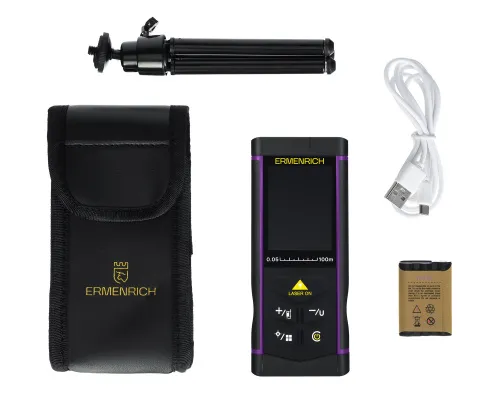

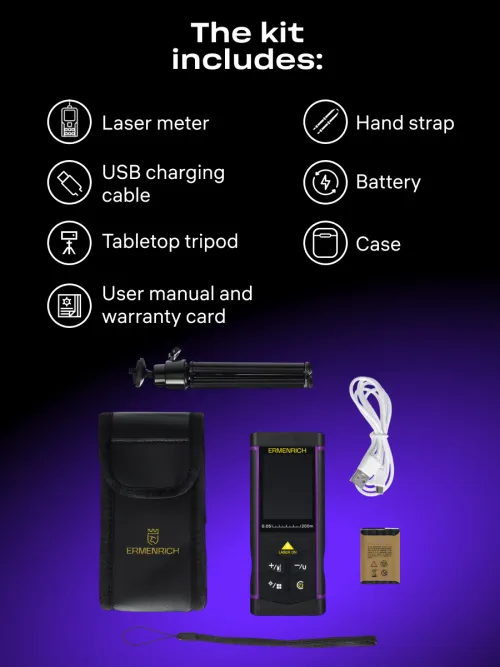

The kit includes:
- Laser meter
- Tabletop tripod
- Hand strap
- Battery
- USB charging cable

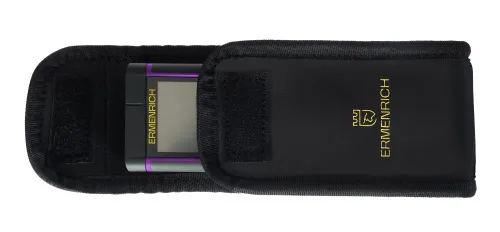

- Case
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555024264 |
| Package size (LxWxH) | 19x11x10 cm |
| Shipping Weight | 0.54 kg |
| Type | laser |
| Single distance measurement mode | ✓ |
| Scanning mode | ✓ |
| Units of measurement (length) | m, ft, in |
| Laser designator | class 2, <1mW, 505–670nm |
| Angle measurements | ✓ |
| Angle measurement range, ° | 90 |
| Area measurement | ✓ |
| Units of measurement (area) | m2, sq. ft., sq. in. |
| Volume measurement | ✓ |
| Units of measurement (volume) | m3, cu ft, cu in |
| Display | TFT |
| Pythagorean theorem feature | ✓ |
| Vertical measurement | ✓ |
| Addition and subtraction | ✓ |
| Reference point | ✓ |
| Reference point | front edge, rear edge, center, retractable pin |
| Laser beam/device auto-off | 30 seconds / 3 minutes |
| History record | 30 groups |
| Power supply | 3.7V 800mAh Li-ion battery or 1.5V AAA batteries (3 pcs.) |
| Operating temperature range,°C | 0...+40 (+32…+104°F) |
| Storage temperature range,°C | -20 — 60 |
| Mounting on a tripod | ✓ |
| Tripod adapter | 1/4" thread |
| Pouch/case/bag in set | pouch |
| Tripod included | ✓ |
