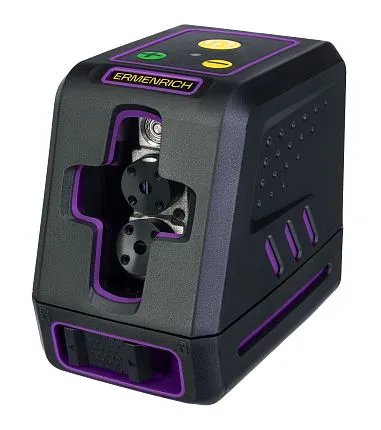

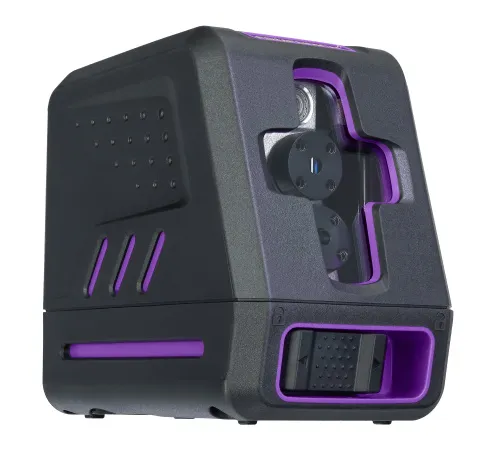

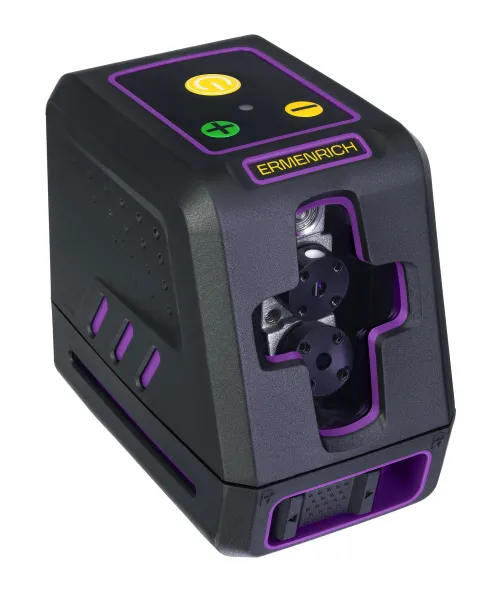

Ermenrich LT20 Laser Level

2 lines. Laser color: red. Working distance: up to 15m (50ft)

Ermenrich LT20 Laser Level
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555015811
Package size (LxWxH) 8x13x12 cm
Shipping Weight 0.565 kg
All specifications
Description

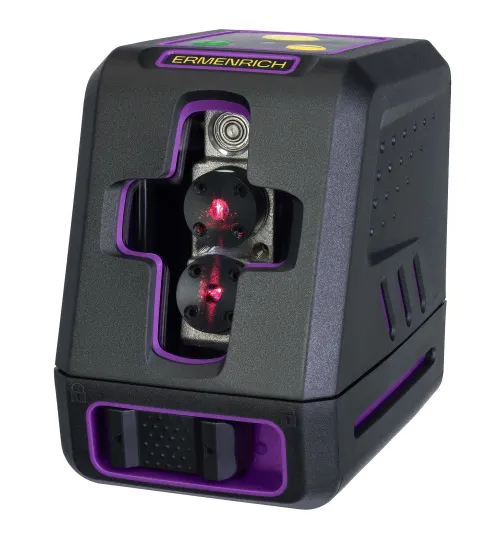

Meet the Ermenrich LT20 Laser Level – a universal tool for construction, renovation, and finishing work. It is equipped with red laser LEDs that generate two cross lines. The level can be up to 15m away from the surface on which the laser beams are projected. Horizontal and vertical sweep – 130°. The compensator aligns the laser beam lines. Given the low measurement error, it helps you to mark out the space as accurately as possible.

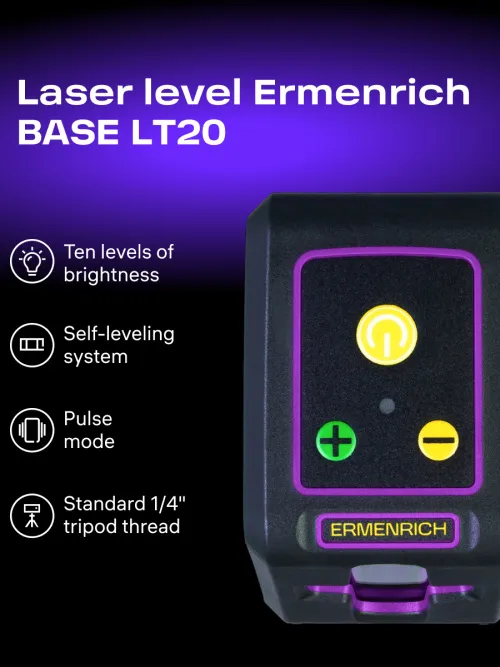

The Ermenrich LT20 can be mounted on a horizontal surface or mounted on a standard tripod. Using a tilt head tripod, you can tilt the level to get the required laser line configuration. The device is dust- and splashproof, which is particularly valuable in renovation and construction environments. The level is powered by standard batteries. There are 10 levels of brightness available.

Key features:

  • Projects two red lines
  • Horizontal and vertical planes with a sweep of 130°
  • Works at a distance of up to 15m (50ft) and has a self-leveling system
  • Powered by batteries, up to 180 hours on a single charge (at minimum brightness)
  • Dust- and splash-proof as well as suitable for a 1/4" tripod mount

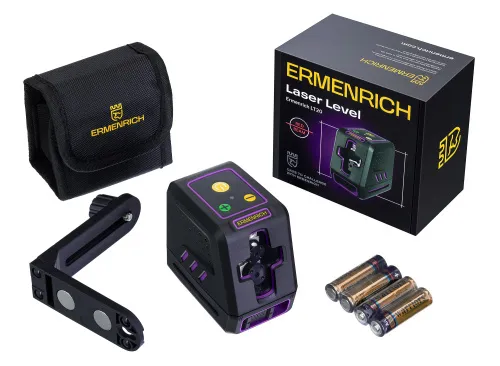

The kit includes:

  • Laser level

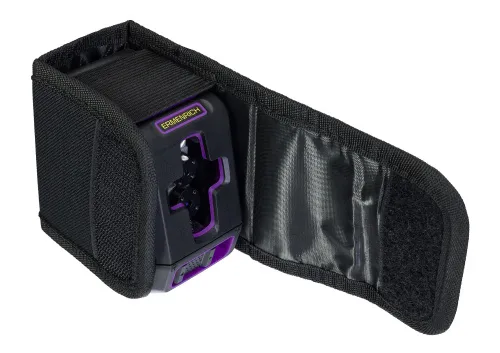

  • Case
  • L-shape bracket
  • User manual and warranty card
Specifications
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555015811
Package size (LxWxH) 8x13x12 cm
Shipping Weight 0.565 kg
Laser level type 1H/1V, 2 lines
Number of horizontal planes 1
Horizontal sweep, ° 130
Number of vertical planes 1
Vertical sweep, ° 130
Accuracy ±1.5mm/5m
Working distance up to 15 m
Laser beam color red
Self-leveling system
Compensator operating range, ° 4±1
Pulse mode
Adaptable to a tripod standard 1/4" thread

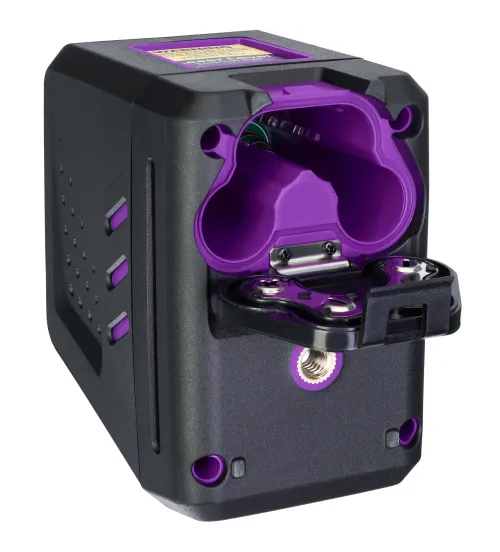

Power supply 4 AA batteries (not included)

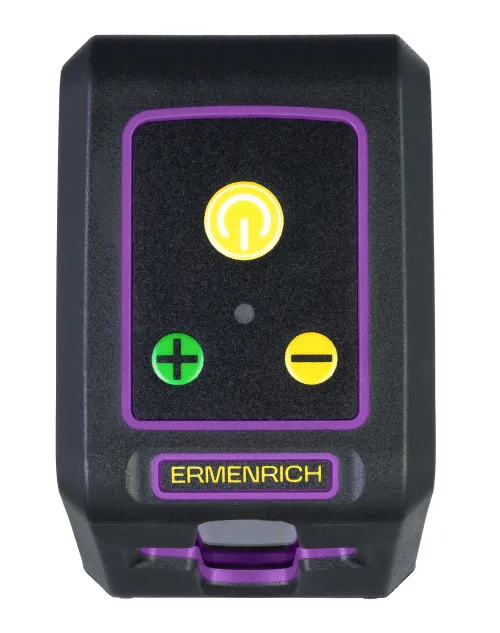

Brightness adjustment
Battery life, h 40 — 180
Laser class 2
Wavelength, nm 635–670
IP water and dustproof rating IP54, partially dustproof, splashproof, partially dustproof, splashproof
Operating temperature range, °C -10...+50
