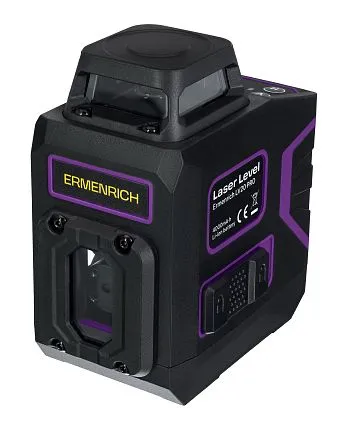

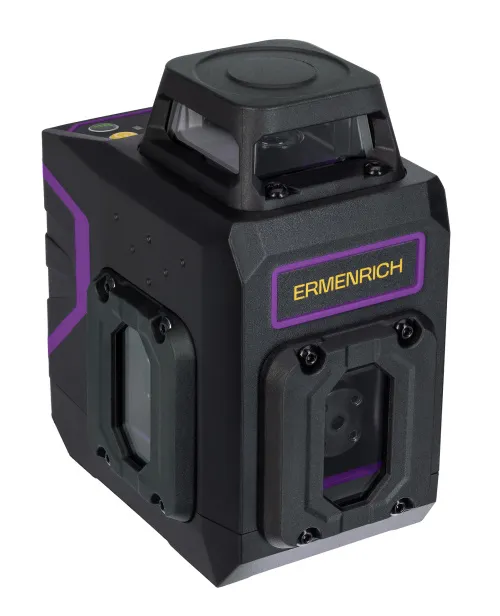

Ermenrich LV20 PRO Laser Level

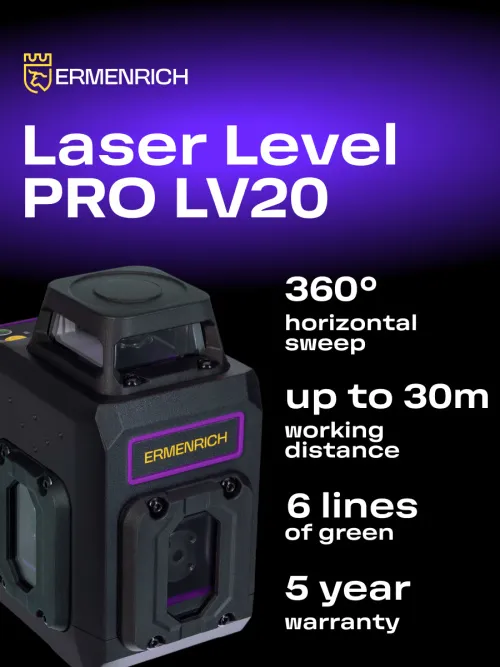

Compact and lightweight. 6 lines. Laser beam color: green. Working distance: up to 30m

Ermenrich LV20 PRO Laser Level
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555024288
Package size (LxWxH) 17x18x9 cm
Shipping Weight 0.72 kg
All specifications
Description

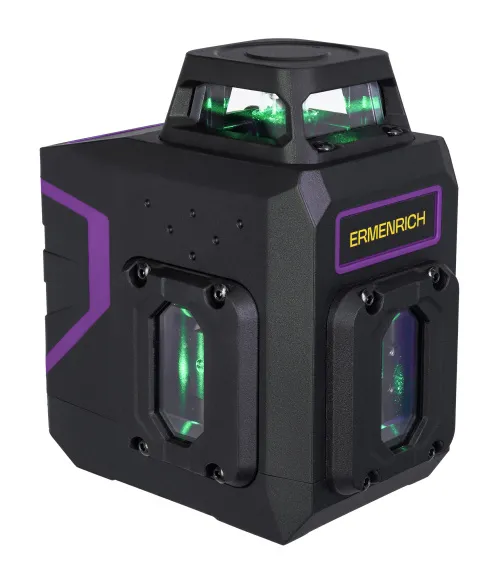

Ermenrich LV20 PRO Laser Level creates markings from 6 lines. Horizontally, the device forms one plane with a 360° sweep, and vertically – two lines. The laser beam is green, easily visible at any level of illumination. The brightness of the lines can be selected manually from 4 levels. Changing the brightness level helps you to adjust the visibility of lines to fit the lighting conditions. It also regulates the operating time of the device: at maximum brightness, the level will work for 6 hours, and at minimum brightness – 35 hours.

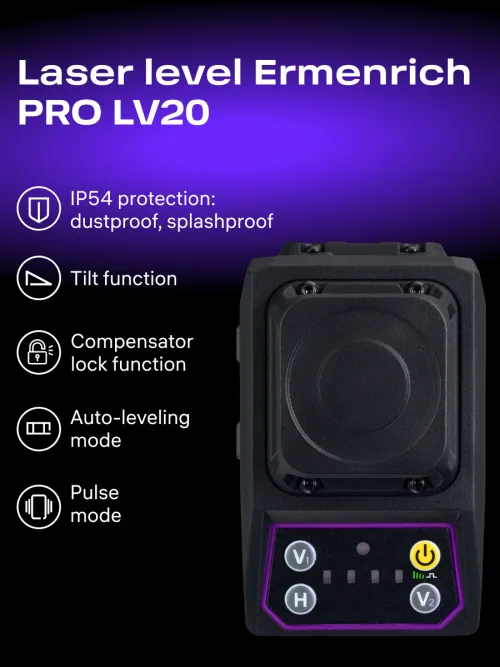

The level has a compensator, which monitors the tilt level and notifies about the need to align the device. This is how the auto-leveling mode works: As soon as the device is tilted more than 4°, the laser starts to flash. The level can also be switched to tilt mode by locking the compensator. You may need to create an inclined line when constructing stairs or creating complex room decor.

The level’s operating range is 30 meters, which is ideal for both home and professional tasks. To extend the range, you can use a laser receiver (purchased separately). The level works with it using pulse mode.

The device is protected from water spray and dust particles, and so it will continue to work without interruption even in the middle of a large construction site. The level is also shock-resistant. Therefore, it can withstand accidental falls. The device is powered by a rechargeable battery, which is recharged through a Type-C USB cable. The kit includes an L-shaped magnetic bracket with adjustable distance from the wall.

Key features:

  • 6 lines: one horizontal plane with 360° sweep, two vertical lines
  • Green laser beam with four brightness levels and a range of up to 30 meters
  • Pulse mode for working with a receiver (not included in the basic package)
  • Auto-leveling mode with built-in compensator at inclination over 4°
  • Compensator lock function and inclined line mode (working at an angle)
  • Powered by a built-in rechargeable battery; water, dust, and shock protection

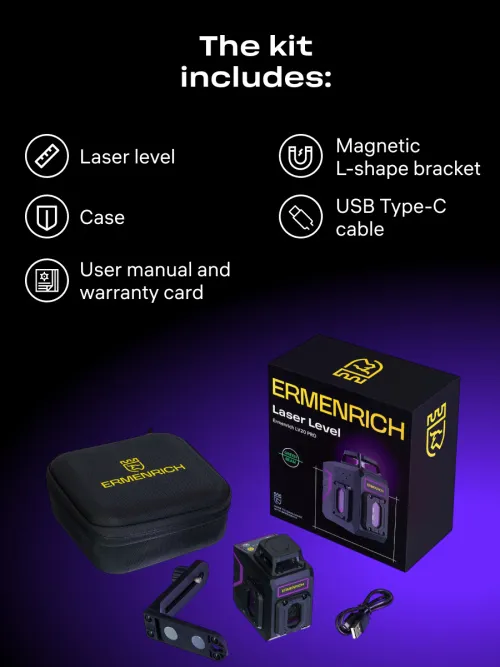

The kit includes:

  • Laser level

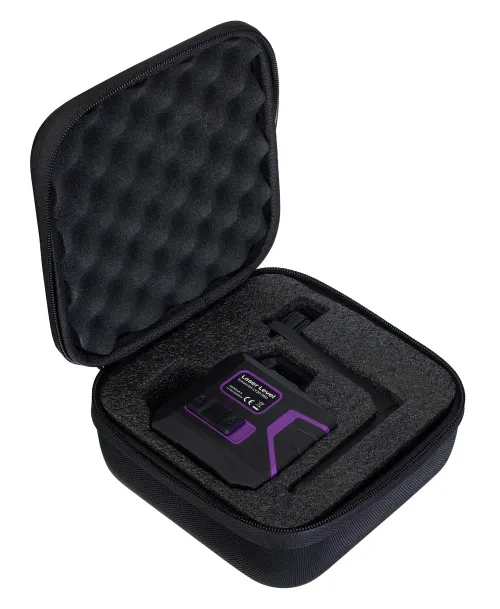

  • Case
  • Magnetic L-shape bracket
  • USB Type-C cable
  • User manual and warranty card
Specifications
Product ID
Brand Ermenrich
Warranty 5 years
EAN 5905555024288
Package size (LxWxH) 17x18x9 cm
Shipping Weight 0.72 kg
Laser level type 1H/2V, 6 lines
Number of horizontal planes 1
Horizontal sweep, ° 360
Number of vertical planes 2
Accuracy ±1.5mm/5m
Working distance up to 30m
Laser beam color green
Self-leveling system
Compensator operating range, ° 4±1
Compensator lock
Tilt function
Pulse mode

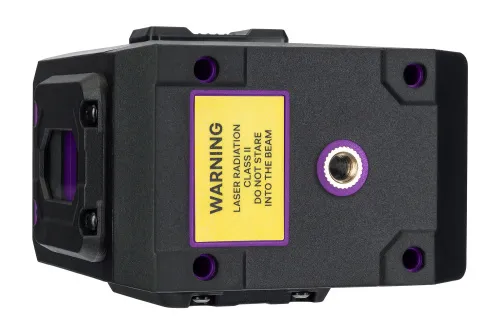

Adaptable to a tripod standard 1/4" thread
Magnetic back

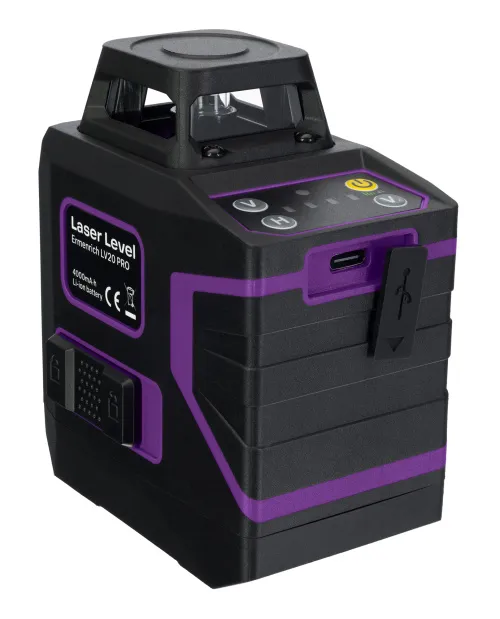

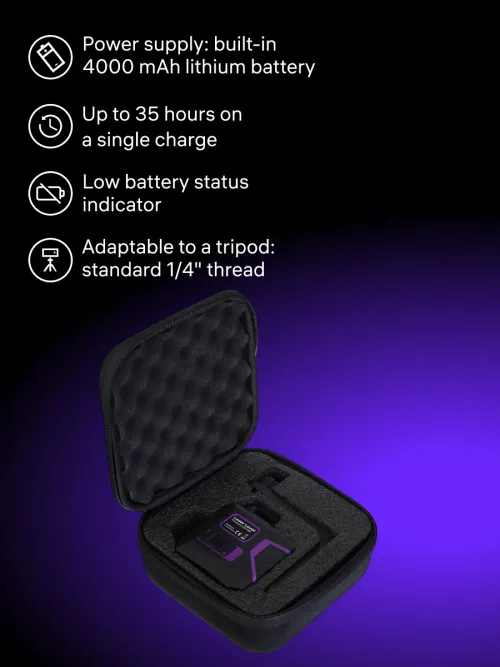

Power supply built-in 4000mAh lithium battery, 3.7V, AC power charging via USB Type-C (cable included)

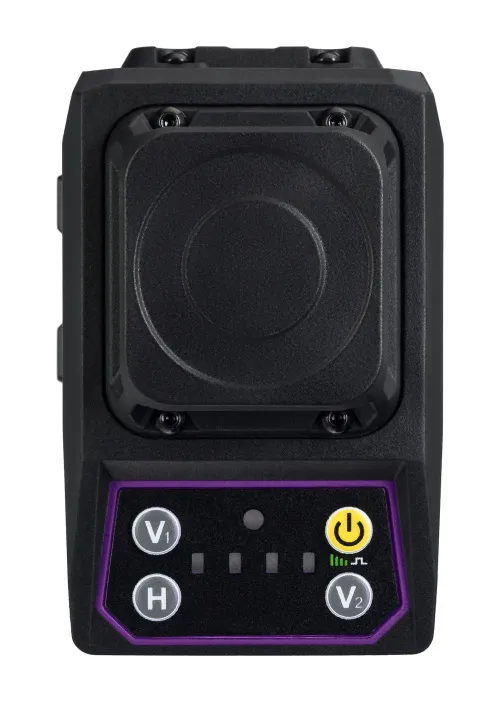

Brightness adjustment
Low battery status indicator
Battery life, h 6 — 35
Laser class 2
Wavelength, nm 505–550
IP water and dustproof rating IP54, partially dustproof, splashproof
Operating temperature range, °C -10...+50
Shock-proof
