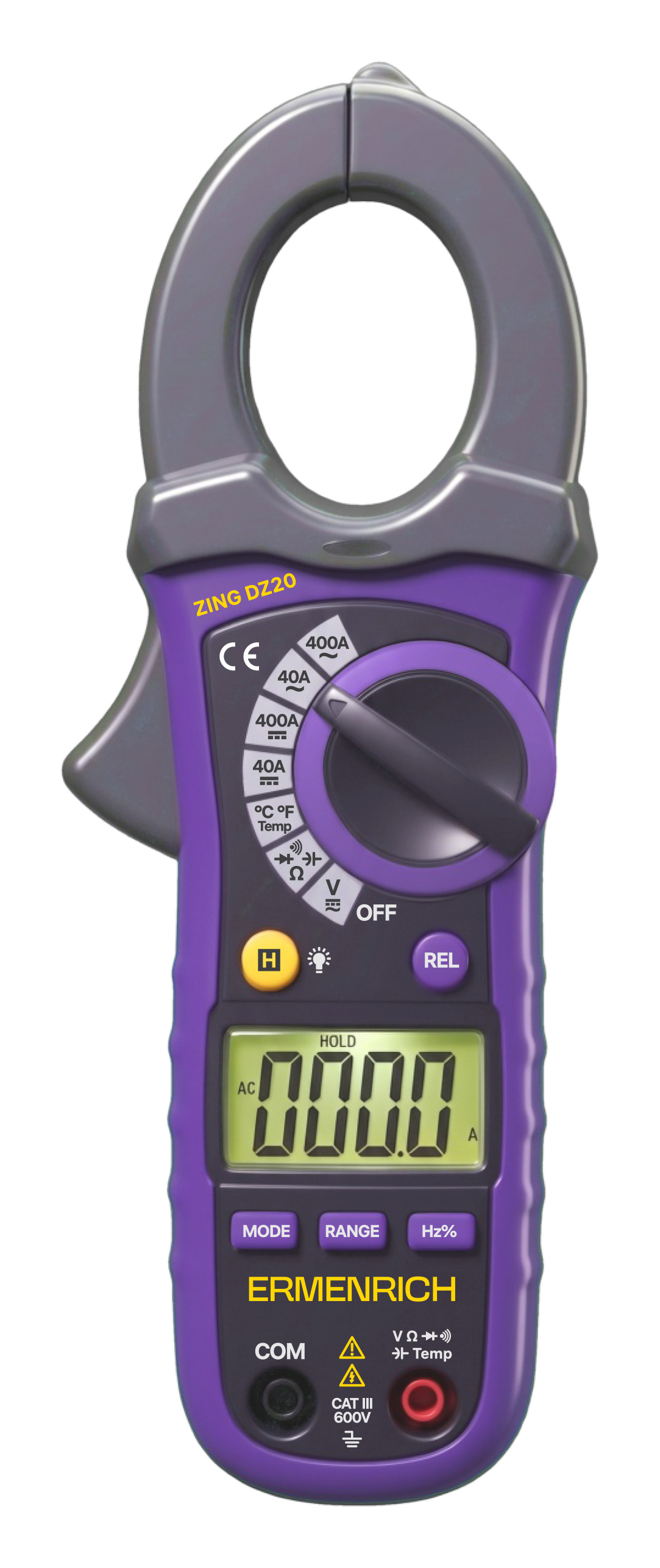

Ermenrich Zing DZ20 Digital Clamp Meter
With DC current measurement. Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple, continuity test, diode test, and NCV. Maximum jaw opening: 30mm
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555028699 |
| Shipping Weight | 0.5 kg |
| Selection of the measuring limit | automatic, manual |
The Ermenrich Zing DZ20 is a versatile digital clamp meter that is designed for auto electricians, installers, and repair technicians. The 30mm jaw opening easily accommodates thick power cables or individual conductors, allowing for safe current measurement without breaking the circuit.
Automotive electrical and power line diagnostics
The main advantage of this model is its DC current measurement capability. This makes the clamp meter an indispensable tool in the garage for checking the starter, testing alternator output, or finding parasitic battery draws. In residential and industrial networks (up to 600V), the device helps assess the actual load on circuit breakers, detect phase imbalances, and test solar panels.
Component and motor testing
The clamp meter is highly effective for component-level repairs. Capacitance measurement up to 100µF allows for the quick testing of start capacitors in air conditioners and pumps. The diode test function helps diagnose rectifiers in power supplies, welding machines, and automotive alternators. Frequency and duty cycle measurements are provided for working with inverters and PWM controllers.
Troubleshooting and ease of use
Locate problems quickly: The audible continuity test detects open circuits, while the non-contact voltage (NCV) detector finds live wires or hidden wiring. The thermocouple helps monitor radiator heating and air conditioner output temperatures. All readings are displayed on a clear screen, and the bright backlight is invaluable when working in poorly lit electrical panels or basements. The device is powered by a single 9V battery, with an auto-off function to preserve battery life.
Key features:
- DC and AC current measurement up to 400A: ideal for automotive electrical systems, solar panels, and mains loads
- 30mm jaw opening: accommodates large-diameter wires
- Voltage measurement up to 600V: perfect for 230/400V residential and industrial networks (cat. III 600V)
- Capacitance measurement up to 100µF: for testing run capacitors
- Non-contact voltage detection (NCV): for locating hidden wiring
- Thermocouple with an operating range of –20°C to +760°C: for monitoring the temperature of components and assemblies
The kit includes:
- Digital clamp meter
- Probe – 2 pcs.
- Thermocouple
- Pouch
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555028699 |
| Shipping Weight | 0.5 kg |
| Selection of the measuring limit | automatic, manual |
| Basic functions | ammeter, capacitance meter, duty cycle meter, frequency meter, ohmmeter, thermocouple, voltmeter |
| DC voltage measuring limit | 400mV: accuracy ±(0.8%+2); 4V/40V/400V: accuracy ±(1.5%+2); 600V: accuracy ±(2.0%+2) |
| AC voltage measuring limit | 400mV: accuracy ±(1.5%+30); 4V/40V/400V: accuracy ±(1.5%+5); 600V: accuracy ±(2.0%+5) |
| DC current measuring limit | 40A: accuracy ±(2.5%+5); 400A: accuracy ±(2.8%+5) |
| AC current measuring limit | 40A: accuracy ±(2.5%+8); 400A: accuracy ±(2.8%+5) |
| Resistance measuring limit | 400Ω: accuracy ±(1.0%+4); 4kΩ/40kΩ/400kΩ: accuracy ±(1.5%+2); 4MΩ: accuracy ±(2.5%+3); 40MΩ: accuracy ±(3.5%+5) |
| Capacity measuring limit | 40nF: accuracy ±(4.0%+20); 400nF/4µF/40µF: accuracy ±(3.0%+5); 100µF: accuracy ±(4.0%+10) |
| Frequency measurement limits | 10Hz – 10kHz: accuracy ±(1.5%+2) |
| Duty cycle measurement range | 0.1%–99.9%: accuracy ±(1.2%+2) |
| Temperature measurement range | –20...+760°C: accuracy ±(3%+5°C) |
| Wire mapping | ✓ |
| Continuity test | +, threshold <150Ω, test current <0.5mA |
| Diodes test | ✓ |
| Diode test | +, test current 0.3mA, open-circuit voltage 1.5V DC |
| Non-contact voltage detection (NCV) | ✓ |
| Hold function | ✓ |
| Relative value measurement (REL) | ✓ |
| Input impedance | 10MΩ (DC and AC) |
| Throughput capacitance | 50–400Hz (VAC) |
| Display | yes |
| Display counts | 4000 |
| Display backlight | ✓ |
| Safety standards | EN 61010-1:2010+A1:2019; EN IEC 61010-2-032:2021+A11:2021 |
| Overvoltage category | CAT III 600V |
| Operating temperature range, °C | 5...+40 |
| Power supply | 9V battery – 1 pc. (not included) |
| Auto power off | ✓ |
