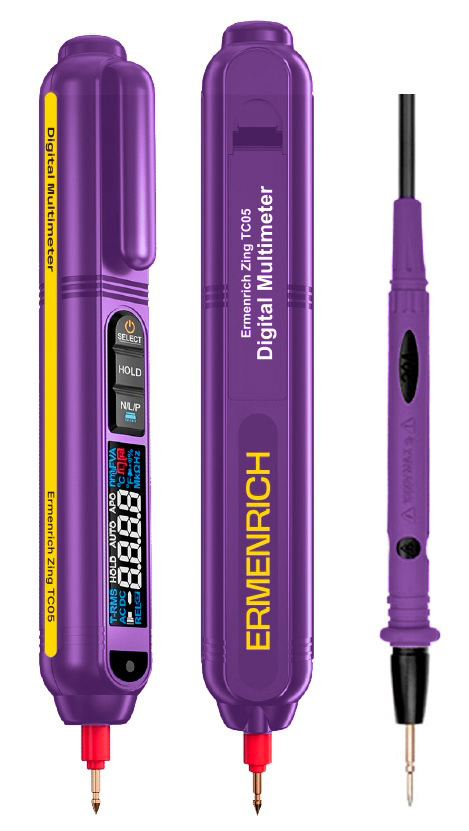

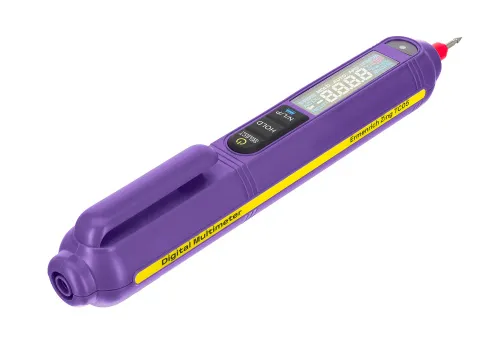

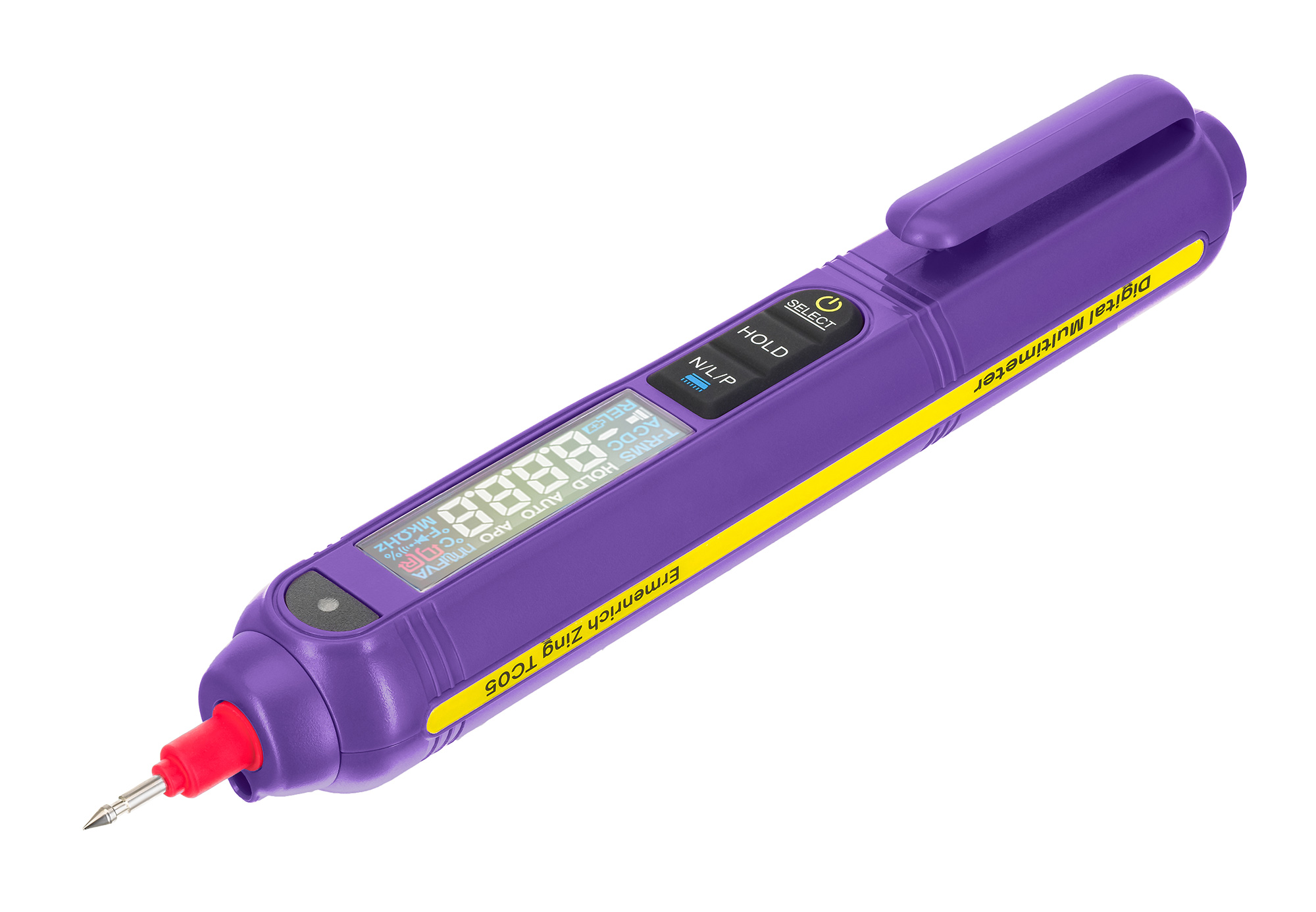

Ermenrich Zing TC05 Digital Multimeter
Functions: voltmeter, ohmmeter, capacitance meter, frequency meter, continuity test, diode test, NCV, phase detector, and thermometer. Automatic selection of the measurement limit
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555026404 |
| Package size (LxWxH) | 3x18x7 cm |
| Shipping Weight | 0.165 kg |
The Ermenrich Zing TC05 digital multimeter is a pocket-sized tool that is designed to solve tasks related to electricity and power grids in a wide variety of areas. It helps check the voltage in sockets and switches, diagnose circuits for breaks and short circuits, and measure the resistance of wires and fuses. The device is also valuable for automotive diagnostics for testing sensors and wiring, checking battery voltage, and measuring ignition coils resistance. The multimeter is useful for electronics repair, equipment setup, and much more.
The Ermenrich Zing TC05 model, despite its compact size of only 17cm in length, boasts a rich set of features. True RMS ensures accurate AC voltage measurements even with non-linear loads by using true root mean square calculations. NCV detects voltage in conductors or circuits without contact. The capacitance measurement extends from 0nF to 60mF, accommodating even large capacitors. A resolution of up to 0.001V (DC) and 0.1Ω enables the detection of even minute voltage and resistance variations, which is crucial for critical tasks.
The Ermenrich Zing TC05 multimeter provides a high degree of safety for work in power circuits (e.g., electrical panels or industrial equipment) by meeting the requirements of the following overvoltage categories: cat. III (1000V) and cat. IV (600V). The tool features a built-in flashlight for use in dimly lit areas and an audible/visual alarm (buzzer) for noisy conditions. In addition, it can measure ambient temperature. The measurement results are displayed on a compact, easy-to-read LCD screen.

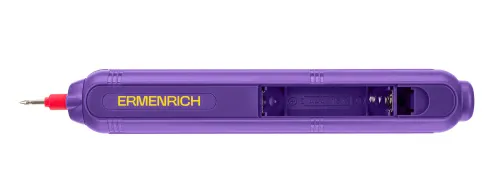

To save battery life, the multimeter has an auto-off function that activates after 5 minutes of inactivity. The tool is powered by a single AAA battery, providing approximately 6–8 hours of operation. When the battery power drops to a low level, the multimeter automatically turns off.
Key features:
- Reliable measurement of variables via True RMS calculation
- Measuring voltage (AC/DC), resistance, frequency, and capacitance
- Non-contact and safe detection of voltage in a conductor or circuit using NCV
- Guaranteed compliance with the highest safety standards: EN61010-1 certification
- Compact body that fits easily into your pocket or tool bag
- Diode test, continuity test, and automatic range selection
- Built-in flashlight and visual/audible alarm for convenient use in dark and noisy environments
The kit includes:
- Digital multimeter
- Probe
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555026404 |
| Package size (LxWxH) | 3x18x7 cm |
| Shipping Weight | 0.165 kg |
| Selection of the measuring limit | automatic |
| Basic functions | capacitance meter, frequency meter, ohmmeter, voltmeter |
| DC voltage measuring range | 0−1000 V ± (0,5% + 4) |
| DC voltage measuring limit | 6/60/600V: error ±(0.5%+4); 1000V: error ±(0.8%+10) |
| AC voltage measuring range | 0−750 V ± (0,5% + 4) |
| AC voltage measuring limit | 6/60/600V: error ±(0.5%+4); 750V: error ±(0.8%+10) |
| Resistance measuring range | 0 Ω−60 MΩ ± (0,8% + 5) |
| Resistance measuring limit | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ: accuracy ±(0.8%+5); 60MΩ: accuracy ±(2.5%+3) |
| Capacity measuring range | 0nF−60mF ±(3.5%+20) |
| Capacity measuring limit | 10nF/100nF/1μF/10μF/100μF/1mF/10mF: accuracy ±(3.5%+20); 60mF: accuracy ±(5%+3) |
| Measurements per second | 3 |
| Diodes test | ✓ |
| Non-contact voltage detection (NCV) | ✓ |
| True RMS | ✓ |
| Phase detector (Live) | ✓ |
| Frequency range, Hz | 1Hz–10MHz (test), 50–800Hz (working) |
| Overvoltage category | cat. III (1000V), cat. IV (600V) |
| Display | FSTN |
| Audible alerts | ✓ |
| Light alert | ✓ |
| Flash light | ✓ |
| Safety standards | EN61010-1, EN61010-2-030, EN61326-1 |
| Operating humidity range, % | 0 — 80 |
| Operating temperature range, °C | 0...+40 |
| Continuity test | ✓ |
| Power supply | 1 AAA battery (not included) |
| Low battery status indicator | ✓ |
| Auto power off | ✓ |
| Auto power off | 5 min |
| Body | high-strength ABS plastic |
