Ermenrich Zing TC19 Digital Multimeter
Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, continuity test, diode test, NCV, battery test. Automatic measurement limit setting
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017631 |
| Package size (LxWxH) | 17x10x5 cm |
| Shipping Weight | 0.29 kg |
Ermenrich Zing TC19 Digital Multimeter is a must have tool in the daily work of the professional electrician. In everyday life, it helps to test electrical appliances and wiring and find faults in the electrical equipment of the car. Its compact and lightweight design makes it easy to carry around, and simple controls make routine work easier. The multimeter provides high measurement accuracy as it uses the True RMS calculations.
The multimeter measures voltage, resistance, amperage, frequency, capacitance, and duty cycle. Additional features include testing networks for open or short circuit, diode test, non-contact voltage detection (NCV), and phase detection. The Smart function makes it easy to measure the basic characteristics of an electrical signal. The hold function is useful when you want to “freeze” the readings on the screen and check them out later.

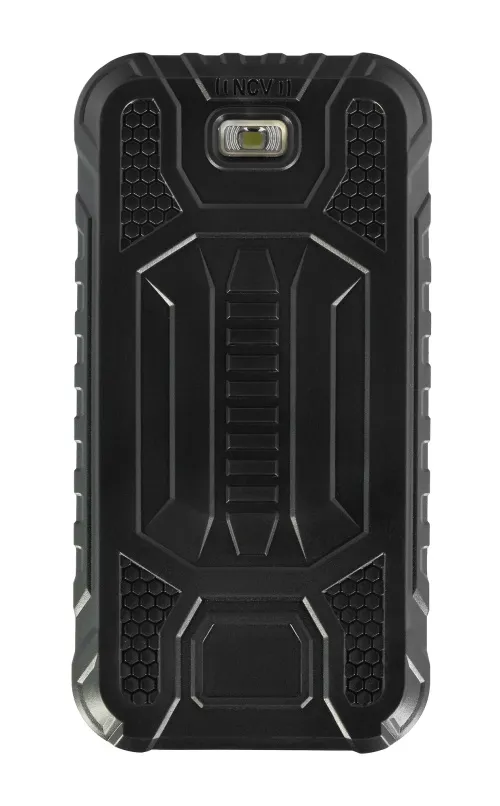

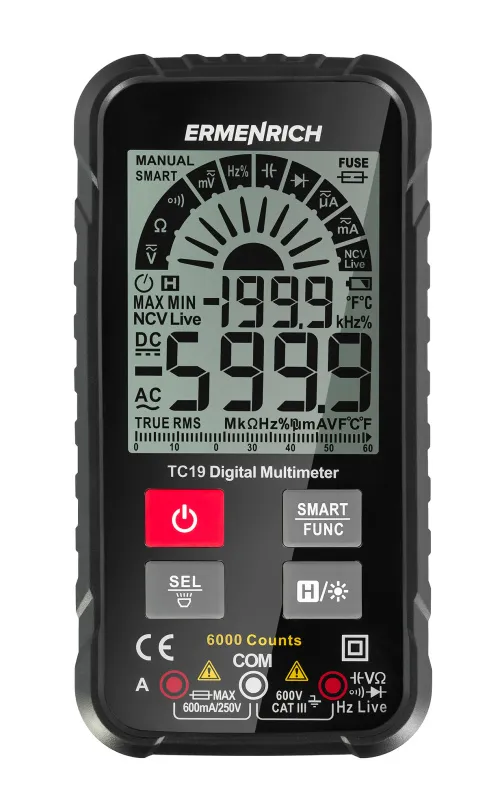

The device has a monochrome screen that displays a graphic scale as well as readings. The multimeter has a flashlight so that you can work in low-lighting conditions and with electrical distribution boards. The device is powered by standard batteries. To save battery power, it automatically turns off after long periods of non-use.
Key features:
- Multifunctional digital multimeter
- Combines the functions of voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, and duty cycle meter
- Phase detector, diode test, NCV function, continuity test, True RMS calculations
- Additional graphic scale for easy screen reading
- Powered by standard batteries

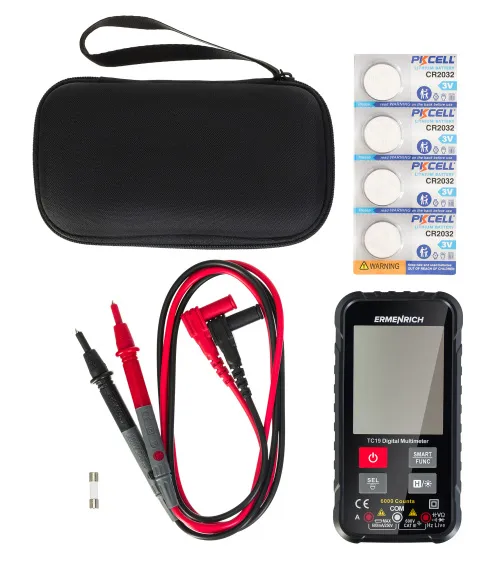

The kit includes:
- Digital multimeter
- Probes

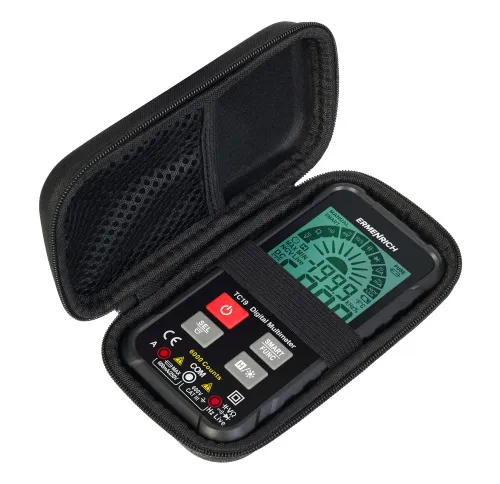

- Pouch
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017631 |
| Package size (LxWxH) | 17x10x5 cm |
| Shipping Weight | 0.29 kg |
| Selection of the measuring limit | automatic |
| Basic functions | ammeter, capacitance meter, duty cycle meter, frequency meter, ohmmeter, voltmeter |
| DC voltage measuring limit | 60mV/600mV/6V/60V/600V: error ±(0.5%+3) |
| AC voltage measuring limit | 60mV/600mV/6V/60V/600V: error ±(1.0%+3) |
| DC current measuring limit | 6000µA/60mA/600mA: error ±(1.2%+5) |
| AC current measuring limit | 6000µA/60mA/600mA: error ±(1.5%+5) |
| Resistance measuring limit | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+5) |
| Capacity measuring limit | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF: error ±(4.0%+5) |
| Frequency measurement limits | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz: error ±(1.0%+5) |
| Duty cycle measurement range | 1–99%: error ±(3.0%+5) |
| Diodes test | ✓ |
| Non-contact voltage detection (NCV) | ✓ |
| True RMS | ✓ |
| Hold function | ✓ |
| Automatic recognition function (Smart) | + (only for DC and AC voltage, resistance and continuity) |
| Phase detector (Live) | ✓ |
| Overvoltage category | CAT III 600V |
| Display counts | 6000 |
| Display backlight | ✓ |
| Graphic scale | ✓ |
| Flash light | ✓ |
| Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
| Continuity test | ✓ |

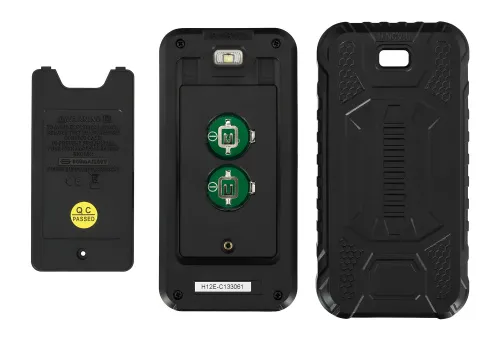

| Power supply | CR2032 batteries, 2pcs. (not included) |
| Low battery status indicator | ✓ |
| Auto power off | ✓ |
Can you help me, please?
I have bought the Ermenrich Zing TC19.
How can I change working mode to the Manual Measurement Mode?
Pressing button SMART/FUNC does not work.
thanks for your query.
After the (82984) Ermenrich Zing TC19 Digital Multimeter is powered on, it is set by default to Smart function. Press SMART/FUNC button once to switch over to mode. Press and hold SMART/FUNC button for MORE than 3 seconds to enter the Manual mode. Press SMART/FUNC button again to switch to other functions.
Hope this helps!
