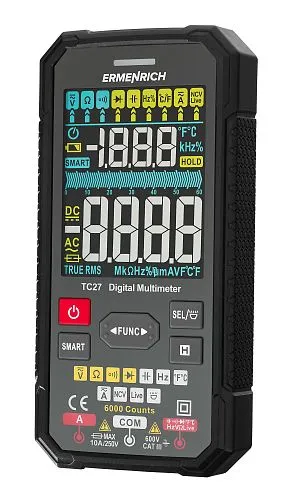

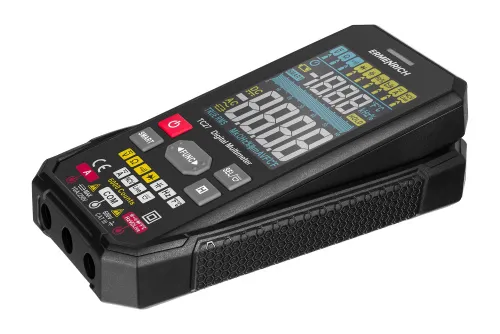

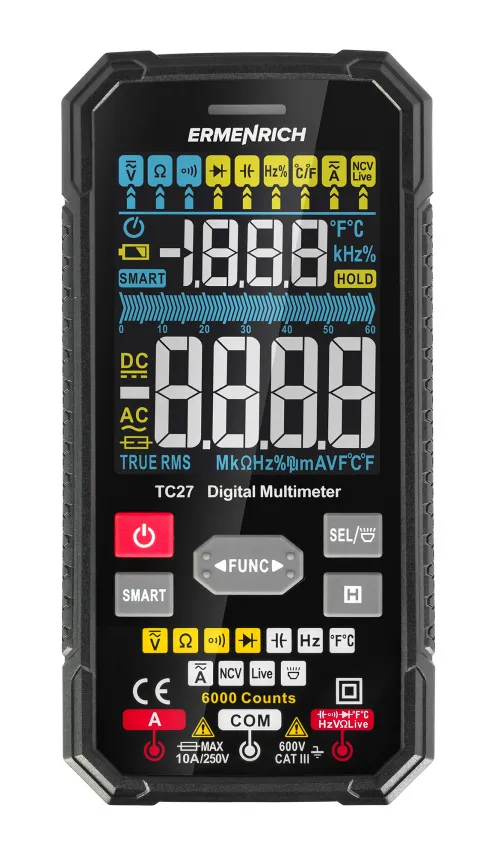

Ermenrich Zing TC27 Digital Multimeter
Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple sensor, continuity test, diode test, NCV, battery test. Automatic measurement limit setting
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017679 |
| Package size (LxWxH) | 18x10x6 cm |
| Shipping Weight | 0.425 kg |
The Ermenrich Zing TC27 digital multimeter is used for testing electrical equipment and electrical circuits. Its broad functionality allows you to use it not only at home but also for professional work. The multimeter is an excellent choice for engineers, electricians, repairmen, and other technicians. The Ermenrich Zing TC27 multimeter is a True RMS device that guarantees highly accurate measurements of non-sinusoidal signals.
The multimeter has 7 basic functions: It measures DC and AC voltage, DC and AC current, resistance, frequency, capacitance, duty cycle, and temperature. A thermocouple-based sensor is used for temperature measurement. The Smart function allows you to measure some basic quantities without having to manually adjust the multimeter: This function will automatically recognize the signal.
The multimeter can locate open and short circuits, test diodes, and determine the phase. All of the readouts are displayed on the large backlit color screen - as digits and a graphic scale. There is a hold function available. The device is powered by standard batteries.
Key features:
- True RMS calculations
- The functions of a voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, and a thermocouple sensor are combined in just one tool
- Smart function – automatic signal recognition (resistance, voltage, and continuity test)
- Non-contact NCV high voltage detector, phase detection (Live), diode test, continuity test, hold function
- Powered by standard batteries

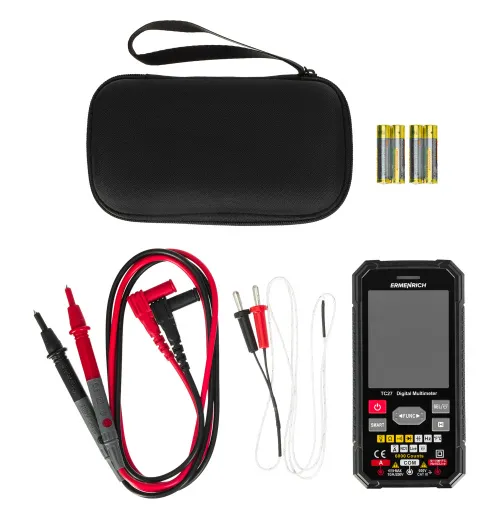

The kit includes:
- Digital multimeter
- Probes

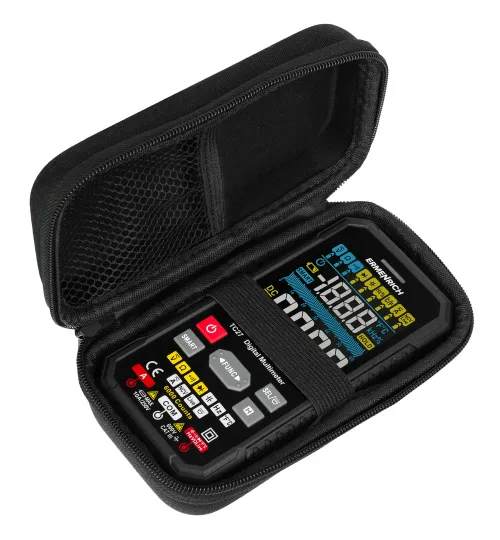

- Pouch
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017679 |
| Package size (LxWxH) | 18x10x6 cm |
| Shipping Weight | 0.425 kg |
| Selection of the measuring limit | automatic |
| Basic functions | ammeter, capacitance meter, duty cycle meter, frequency meter, ohmmeter, thermocouple, voltmeter |
| DC voltage measuring limit | 60mV/600mV/6V/60V/600V: error ±(0.5%+3) |
| AC voltage measuring limit | 6/60/600V: error ±(0.8%+3) |
| DC current measuring limit | 600mA/10A: error ±(1.2%+3) |
| AC current measuring limit | 600mA/10A: error ±(1.5%+3) |
| Resistance measuring limit | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+3) |
| Capacity measuring limit | 6nF/60nF/600nF/6µF/60µF/600µF/6mF: error ±(3.0%+5) |
| Frequency measurement limits | 60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz: error ±(1.0%+3) |
| Duty cycle measurement range | 1–99%: error ±(3.0%+3) |
| Non-contact voltage detection (NCV) | ✓ |
| True RMS | ✓ |
| Hold function | ✓ |
| Automatic recognition function (Smart) | + (only for DC and AC voltage, resistance and continuity) |
| Phase detector (Live) | ✓ |
| Overvoltage category | CAT III 600V |
| Display | VA |
| Display counts | 6000 |
| Display backlight | ✓ |
| Graphic scale | ✓ |

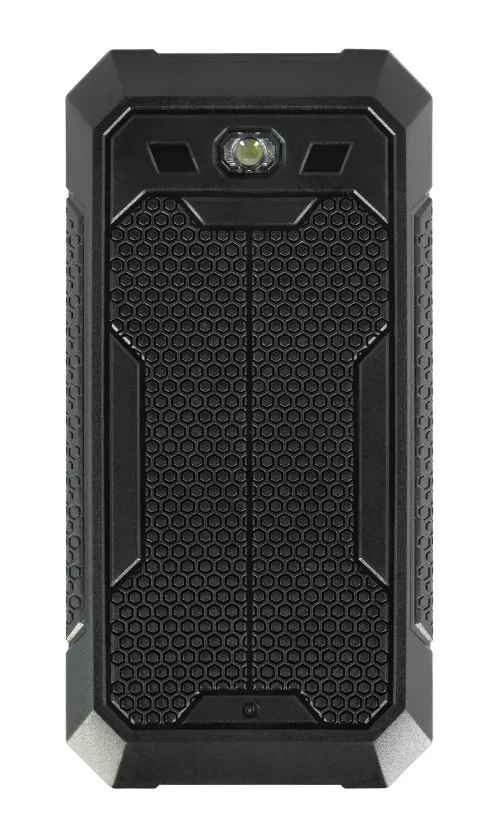

| Flash light | ✓ |
| Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
| Operating temperature range,°C | −40... +1000 (−40... +1832): error ±(1.0%+3) |
| Continuity test | +, combined with resistance measurement mode (<50Ω) |

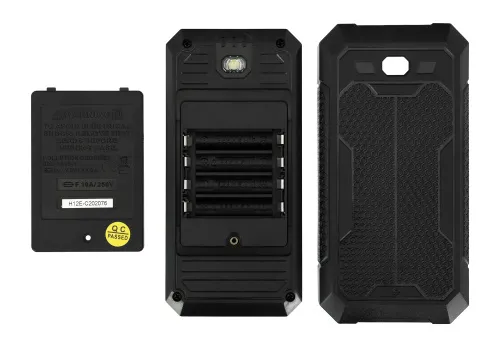

| Power supply | 4 AAA batteries (not included) |
| Low battery status indicator | ✓ |
| Auto power off | ✓ |
