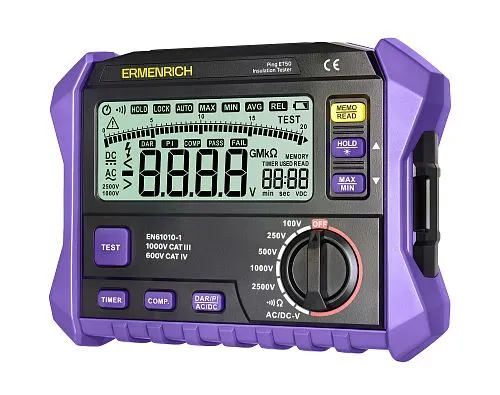

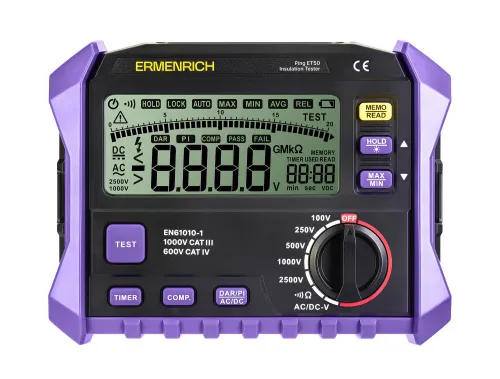

Ermenrich Ping ET50 Insulation Tester
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017419 |
| Package size (LxWxH) | 33x9x27 cm |
| Shipping Weight | 1.54 kg |

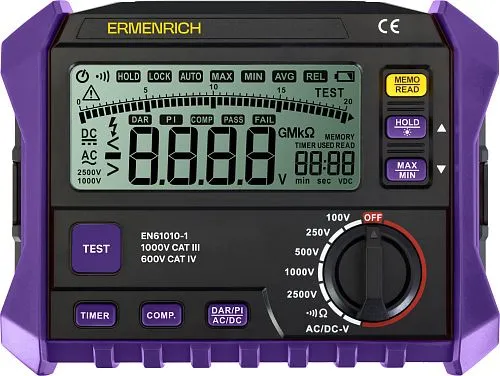

Ermenrich Ping ET50 is an insulation resistance meter, or megohmmeter, which is used to check the quality of cables. Damage or deterioration of the insulation on a live cable can lead to short circuits and fires. Regular megohmmeter inspection reduces the risk of such dangerous situations occurring. The device operates at 5 test voltages: 100, 250, 500, 1000, and 2500V. The total resistance measurement range is from 0 to 200GΩ.

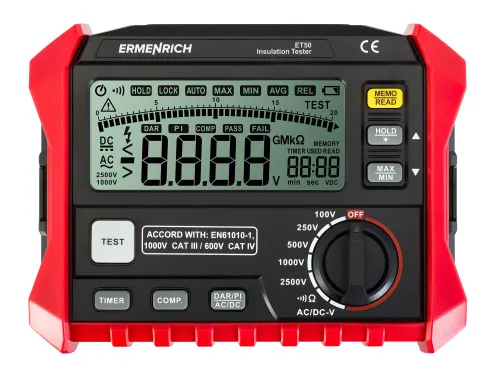

The device also measures two additional parameters: dielectric absorption ratio (DAR) and polarization index (PI). The first indicates the amount of moisture in the insulation: Drying is required if the volume is high. The second parameter is used to determine the residual insulation life. The megohmmeter also measures AC and DC voltage, has a continuity test function and a timer for resistance measurement mode. The measurement re-sults and operating parameters are displayed on the built-in backlit screen. There are functions for recording data to memory, keeping data on the screen, and determining the minimums and maximums.
The device has a built-in flashlight for working in the dark. The power is supplied from batteries.
Key features:
- Five test voltages: 100, 250, 500, 1000, and 2500V
- Insulation resistance measurement in a range of 0 to 200GΩ
- Absorption coefficient and polarization index measurements
- Resistance measurement timer, recording results to memory
- Measurement of DC and AC voltage, continuity mode
- Flashlight, auto-off function, battery-powered

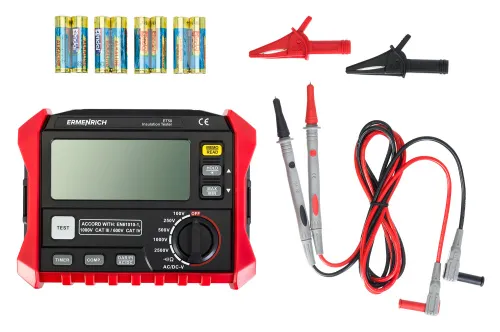

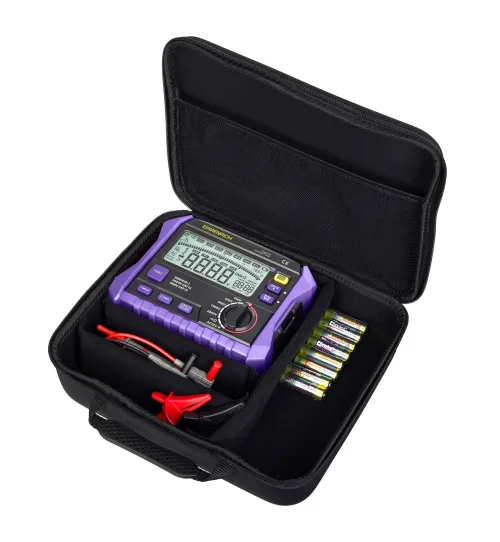

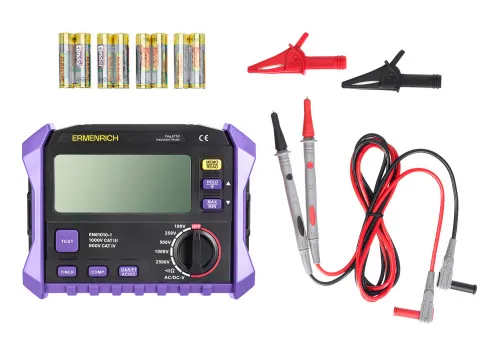

The kit includes:
- Insulation tester
- Probes
- Alligator clips

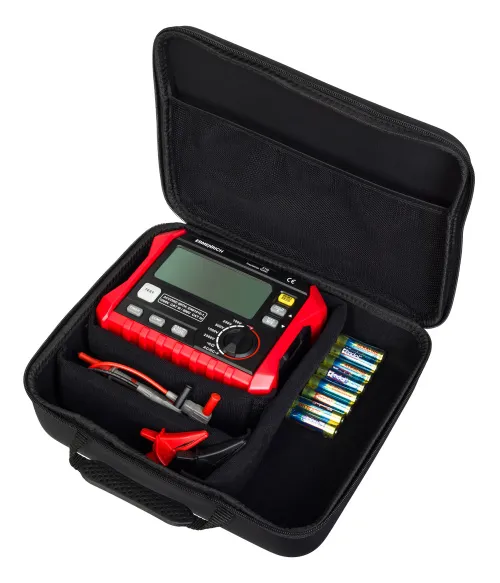

- Case bag
- User manual and warranty card
| Product ID | |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555017419 |
| Package size (LxWxH) | 33x9x27 cm |
| Shipping Weight | 1.54 kg |
| Test voltages, V | 100, 250, 500, 1000, 2500 |
| Resistance measurement range (100V) | 0–1GΩ: error ±(3%+5) |
| Resistance measurement range (250V) | 0–2GΩ: error ±(3%+5) |
| Resistance measurement range (500V) | 0–20GΩ: error ±(3%+5) |
| Resistance measurement range (1000V) | 0–20GΩ: error ±(3%+5); 20–100GΩ ±(5%+5) |
| Resistance measurement range (2500V) | 0–20GΩ: error ±(3%+5); 20–200GΩ ±(8%+5) |
| Short circuit current | 3mA |
| DC voltage measuring range | 0–1000V: error ±(1%+5) |
| AC voltage measuring range | 0–750V: error ±(1%+5) |
| Overvoltage category | cat. III (1000V) IV (600V) |
| Display | yes |
| Graphic scale | ✓ |
| Flash light | ✓ |
| Safety standards | IEC/EN 61010-1 |
| Continuity test | +; combined with resistance measurement mode (0–200GΩ: error ±(1%+5)) |
| Dielectric absorption ratio (DAR) | ✓ |
| Polarization index measurement (PI) | ✓ |
| Data save/read function | ✓ |
| Limit value memory (Min/Max) | ✓ |
| Resistance measurement timer | ✓ |

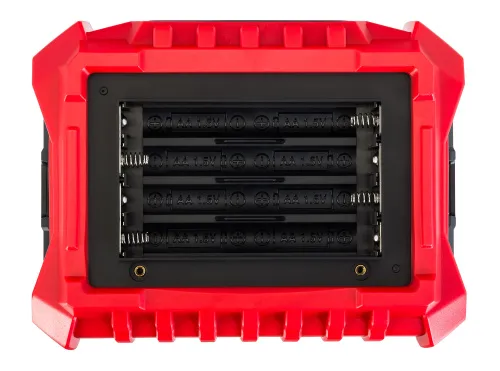

| Power supply | 6 AA batteries (not included) |
| Low battery status indicator | ✓ |
| Auto power off | ✓ |
